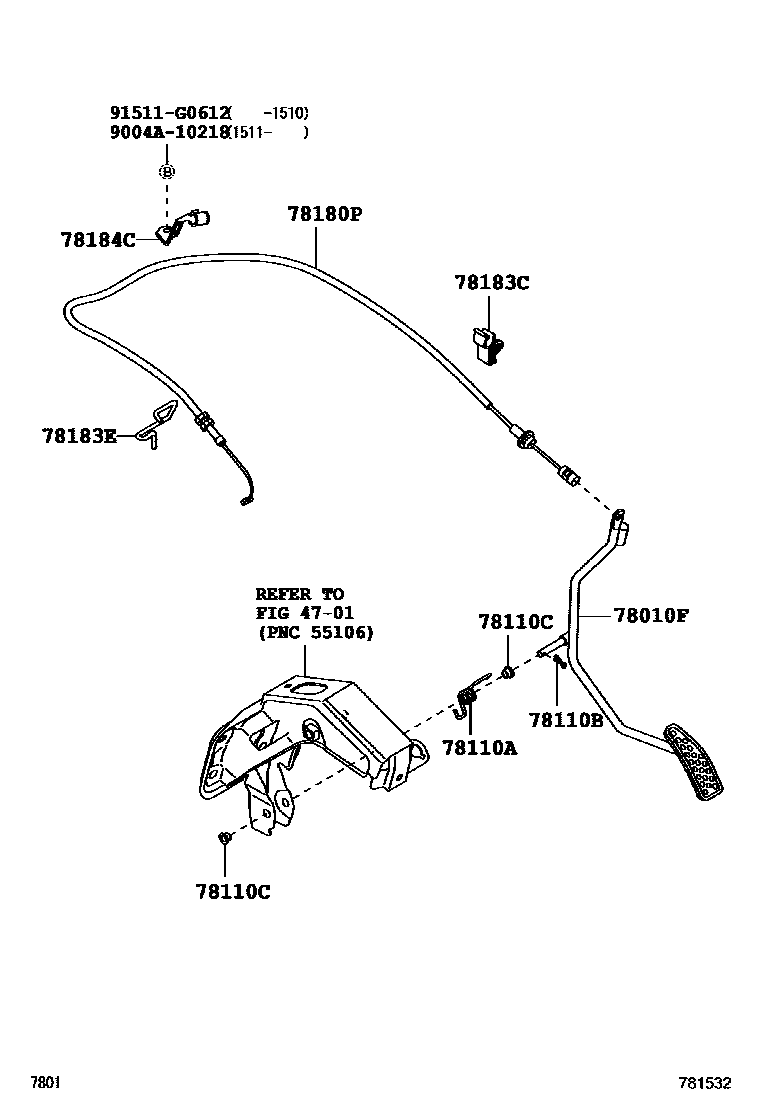

Toyota AGYA/WIGO — ACCELERATOR LINK

0001 1 0002 1 0003 1RHD 0004 1LHD

4701

78010FPEDAL ASSY, ACCELERATOR

main78101-BZ150iB100..AGYA201212-201704

main78101-BZ160iB100..WIGO201401-201704

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main78214-BZ050iB100201212-201704

78110BCLIP, ACCELERATOR BELLCRANK

main90044-68207iB100¥140201212-201704

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90043-86112iB100¥140201212-201704

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-BZ220iB100..AGYA201212-201704

main78180-BZ230iB100..WIGO201401-201704

78183CCLAMP, ACCELERATOR CONTROL CABLE

main90044-64839iB100..AGYA¥180201212-201704

78183ECLAMP, ACCELERATOR CONTROL CABLE

main78183-B6010iB100201212-201401

78184CBRACKET, ACCELERATOR CONTROL CABLE

main78184-BZ040iB100..AGYA201212-201704

main78184-BZ040iB100..WIGO201401-201704

NO.1

main78184-BZ050iB100..WIGO201401-201704

NO.2

main78184-BZ060iB100..WIGO201401-201704

NO.3

9004A10218

main9004A-10218

91511G0612

main91511-G0612¥110

11 parts on this diagram · 4 diagrams in section
