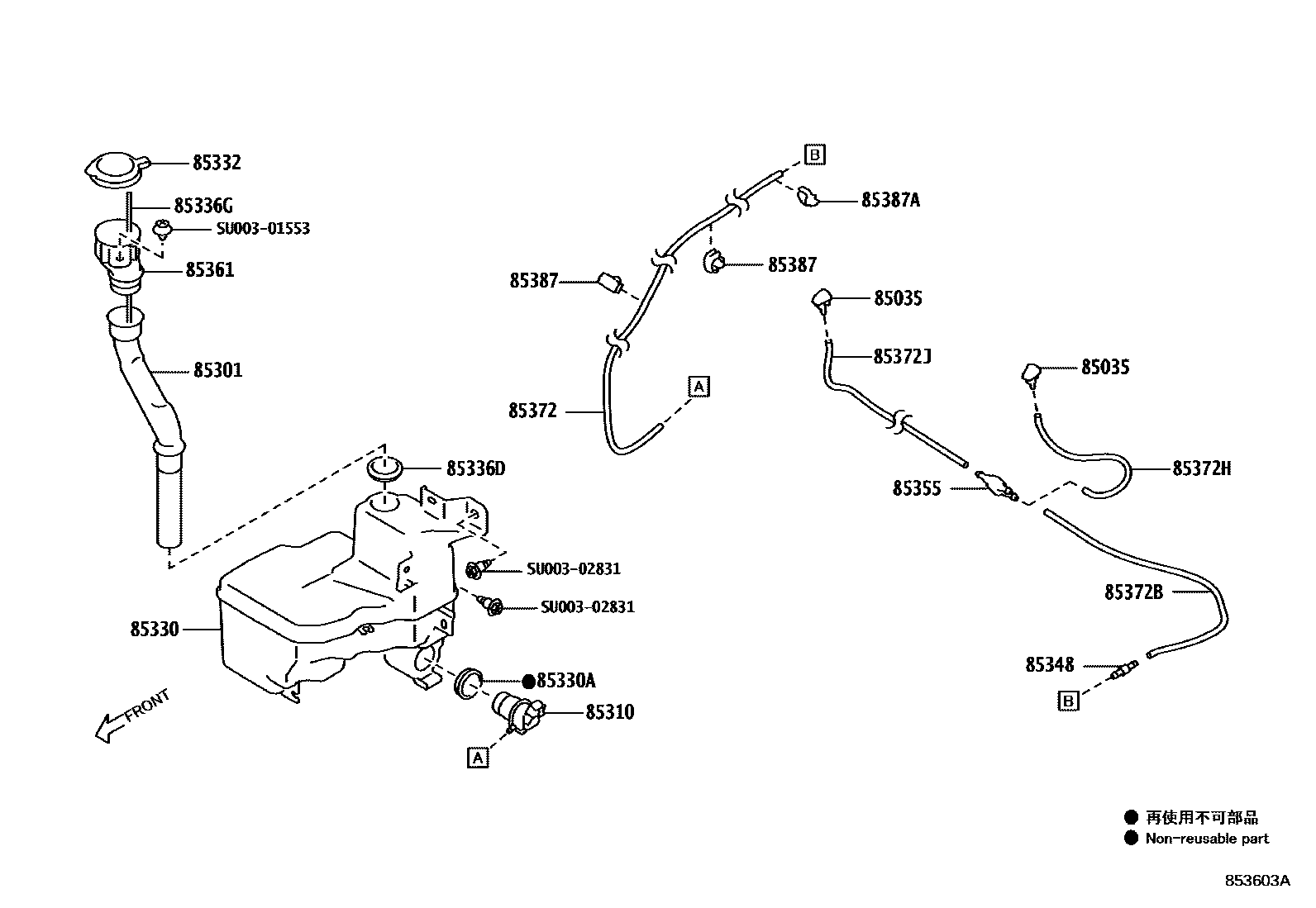

Toyota 86 — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336GGAGE, WATER LEVEL
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85355VALVE, WINDSHIELD WASHER HOSE
85361HOLDER, WINDSHIELD WASHER
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
SU00301553
SU00302831
19 parts on this diagram · 1 diagram in section
