Toyota 86 — STANDARD TOOL

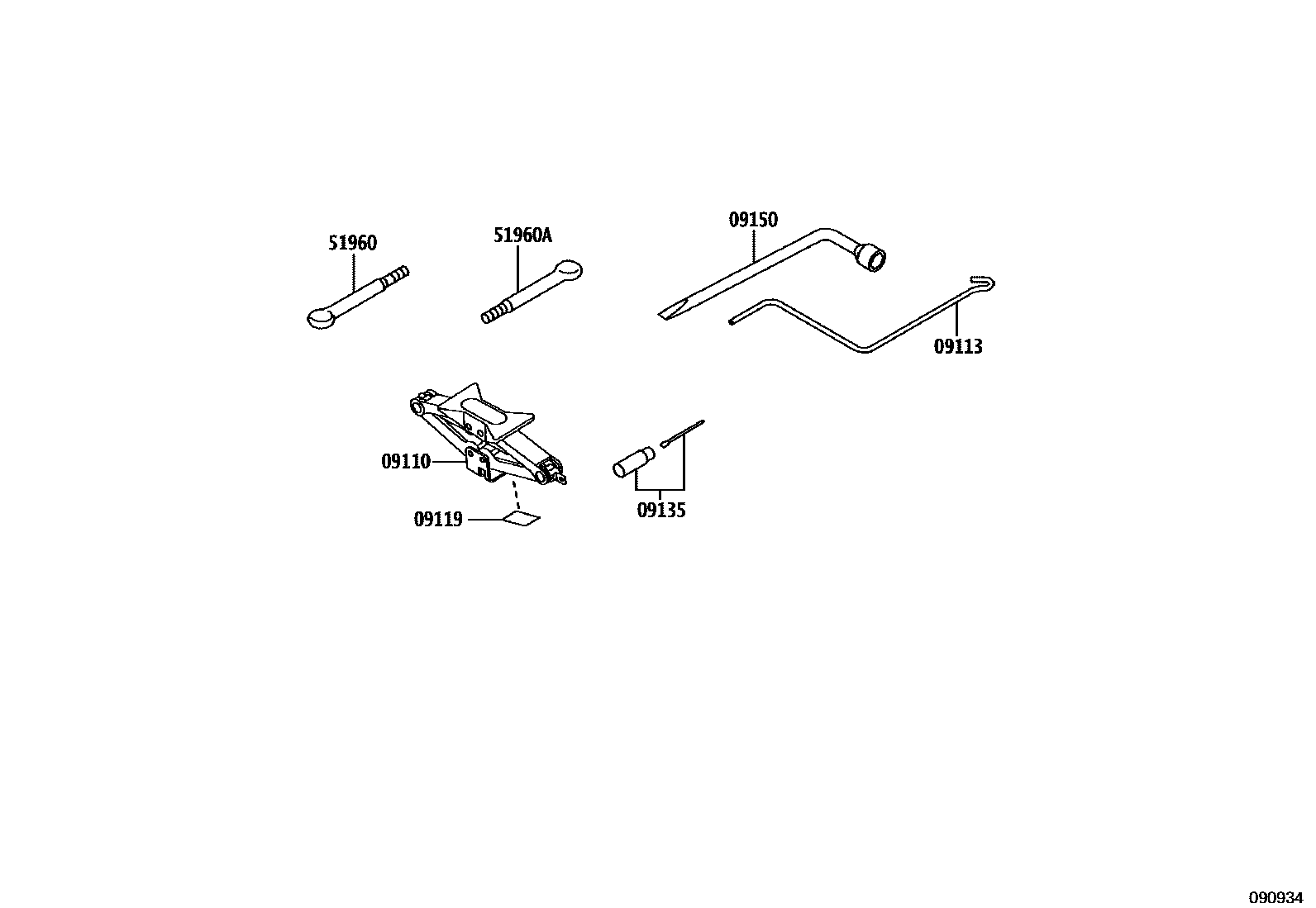

Parts diagram

09110JACK ASSY

mainSU00305745i201607-201711

subSU003-09481¥6,500

mainSU00305745i201711-201806

subSU003-09481¥6,500

mainSU00305745i201807-201907

subSU003-09481¥6,500

mainSU00305745i201908-202012

subSU003-09481¥6,500

09113HANDLE, JACK

mainSU00303402i201607-201711

mainSU00303402i201711-201806

mainSU00303402i201807-201907

mainSU00303402i201908-202012

09119LABEL, JACK CAUTION

mainSU00307261i201607-201704

subSU003-07588¥1,020

mainSU00307588i201704-201711

mainSU00307588i201711-201806

mainSU00307588i201807-201907

mainSU00307588i201908-202012

09135DRIVER, SCREW

mainSU00301988i201607-201711

subSU003-03448¥710

mainSU00301988i201711-201806

subSU003-03448¥710

mainSU00301988i201807-201907

subSU003-03448¥710

mainSU00301988i201908-202012

subSU003-03448¥710

09150WRENCH, HUB NUT BOX

mainSU00303400i201607-201711

mainSU00303400i201711-201806

mainSU00303400i201807-201907

mainSU00303400i201908-202012

51960HOOK ASSY, FRONT

mainSU00301544i201607-201711

mainSU00301544i201711-201806

mainSU00301544i201807-201907

mainSU00301544i201908-202012

51960AHOOK ASSY, REAR

mainSU00304614i201607-201711

mainSU00304614i201711-201806

mainSU00304614i201807-201907

mainSU00304614i201908-202012

7 parts on this diagram · 1 diagram in section
