Toyota 86 — SPEAKER

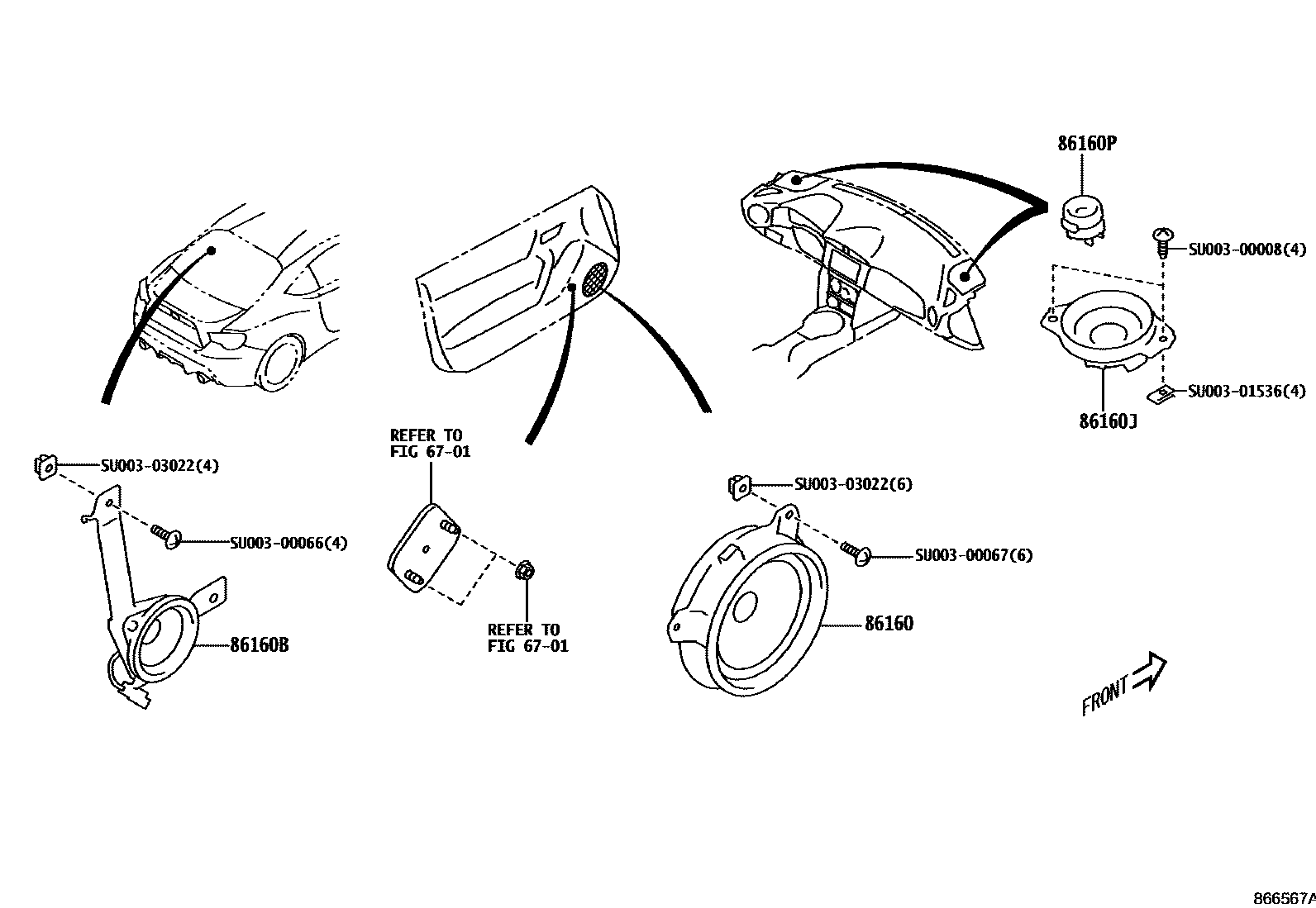

Parts diagram

6701

86160SPEAKER ASSY, FRONT NO.1

mainSU00302642i201607-201711

subSU003-07987¥3,340

mainSU00302642i201711-201804

subSU003-07987¥3,340

mainSU00302646i201807-201907

mainSU00302646i201908-202012

mainSU00302646i201711-201806

mainSU00302646i201607-201711

mainSU00307987i201908-202012

mainSU00307987i201804-201806

mainSU00307987i201804-201907

86160BSPEAKER ASSY, REAR

mainSU00302643i201908-202012

RH

mainSU00302643i201607-201711

RH

mainSU00302643i201711-201806

RH

mainSU00302643i201807-201907

RH

mainSU00302644i201607-201711

LH

mainSU00302644i201711-201806

LH

mainSU00302644i201908-202012

LH

mainSU00302644i201807-201907

LH

mainSU00302647i201607-201711

RH

mainSU00302647i201807-201907

RH

mainSU00302647i201711-201806

RH

mainSU00302647i201908-202012

RH

mainSU00302648i201807-201907

LH

mainSU00302648i201607-201711

LH

mainSU00302648i201711-201806

LH

mainSU00302648i201908-202012

LH

86160JSPEAKER ASSY, FRONT NO.3

mainSU00302650i201607-201711

RH

mainSU00302650i201711-201806

RH

mainSU00302650i201807-201907

RH

mainSU00302650i201908-202012

RH

mainSU00302651i201908-202012

LH

mainSU00302651i201607-201711

LH

mainSU00302651i201807-201907

LH

mainSU00302651i201711-201806

LH

86160PSPEAKER ASSY, FRONT NO.2

mainSU00302645i201607-201711

mainSU00302645i201711-201806

mainSU00302645i201807-201907

mainSU00302645i201908-202012

mainSU00302649i201908-202012

mainSU00302649i201607-201711

mainSU00302649i201807-201907

mainSU00302649i201711-201806

SU00300008

mainSU003-00008¥20

SU00300066

mainSU003-00066¥20

SU00300067

mainSU003-00067¥10

SU00301536

mainSU003-01536¥220

SU00303022

mainSU003-03022¥70

10 parts on this diagram · 1 diagram in section
