Toyota 86 — ROOF PANEL & BACK WINDOW GLASS

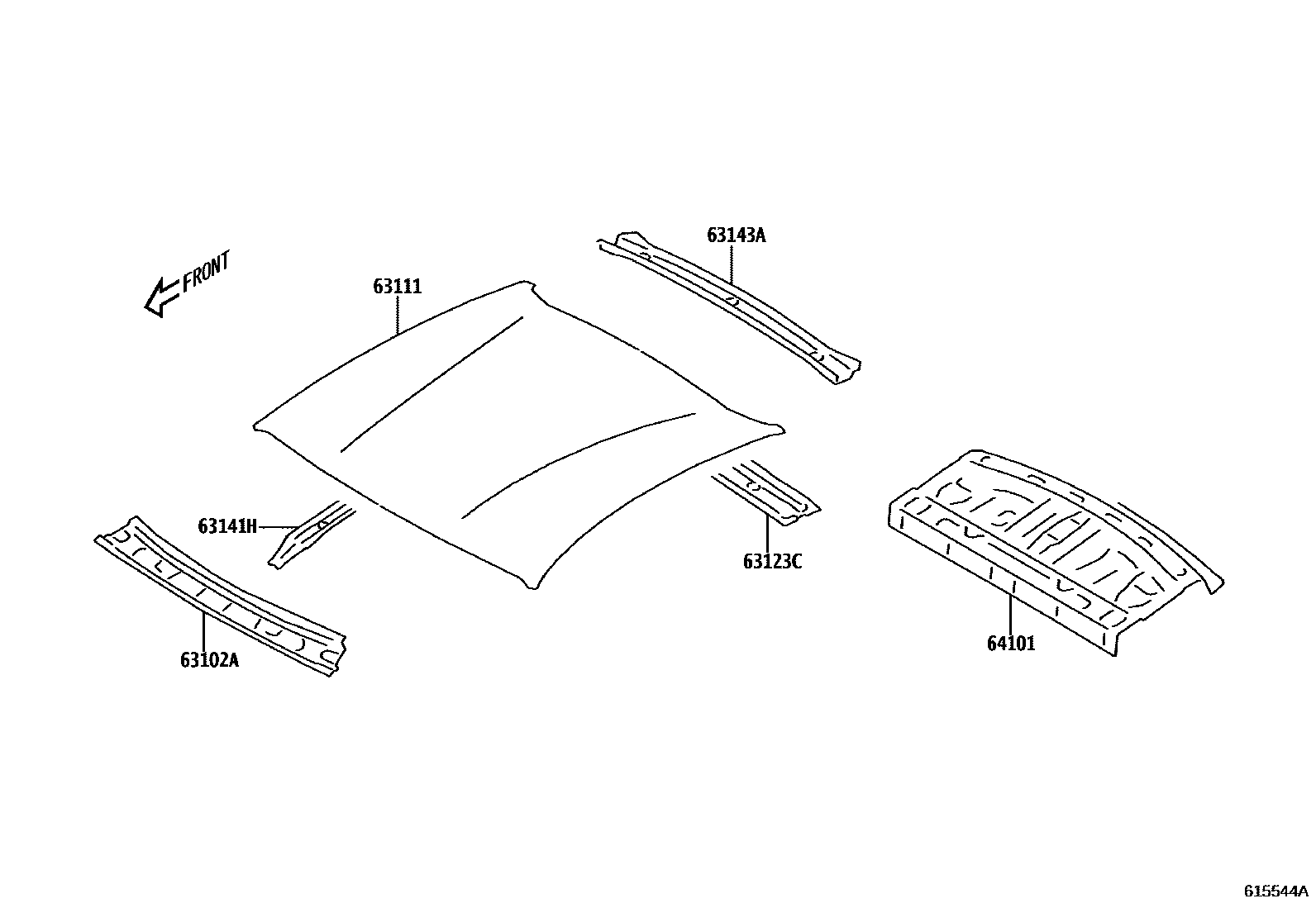

0001 1ROOF PANEL & UPPER BACK PANEL0002 1BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

mainSU00301374iZN6201607-202012

63111PANEL, ROOF

mainSU00301376iZN6201607-202012

63123CREINFORCEMENT, ROOF PANEL

mainSU00301378iZN6201607-202012

63141HREINFORCEMENT, ROOF PANEL, CENTER

mainSU00301377iZN6201607-202012

63143AREINFORCEMENT, ROOF PANEL

mainSU00301375iZN6201607-202012

64101PANEL SUB-ASSY, UPPER BACK

mainSU00307172iZN6201607-202012

6 parts on this diagram · 2 diagrams in section
