Toyota 86 — METER

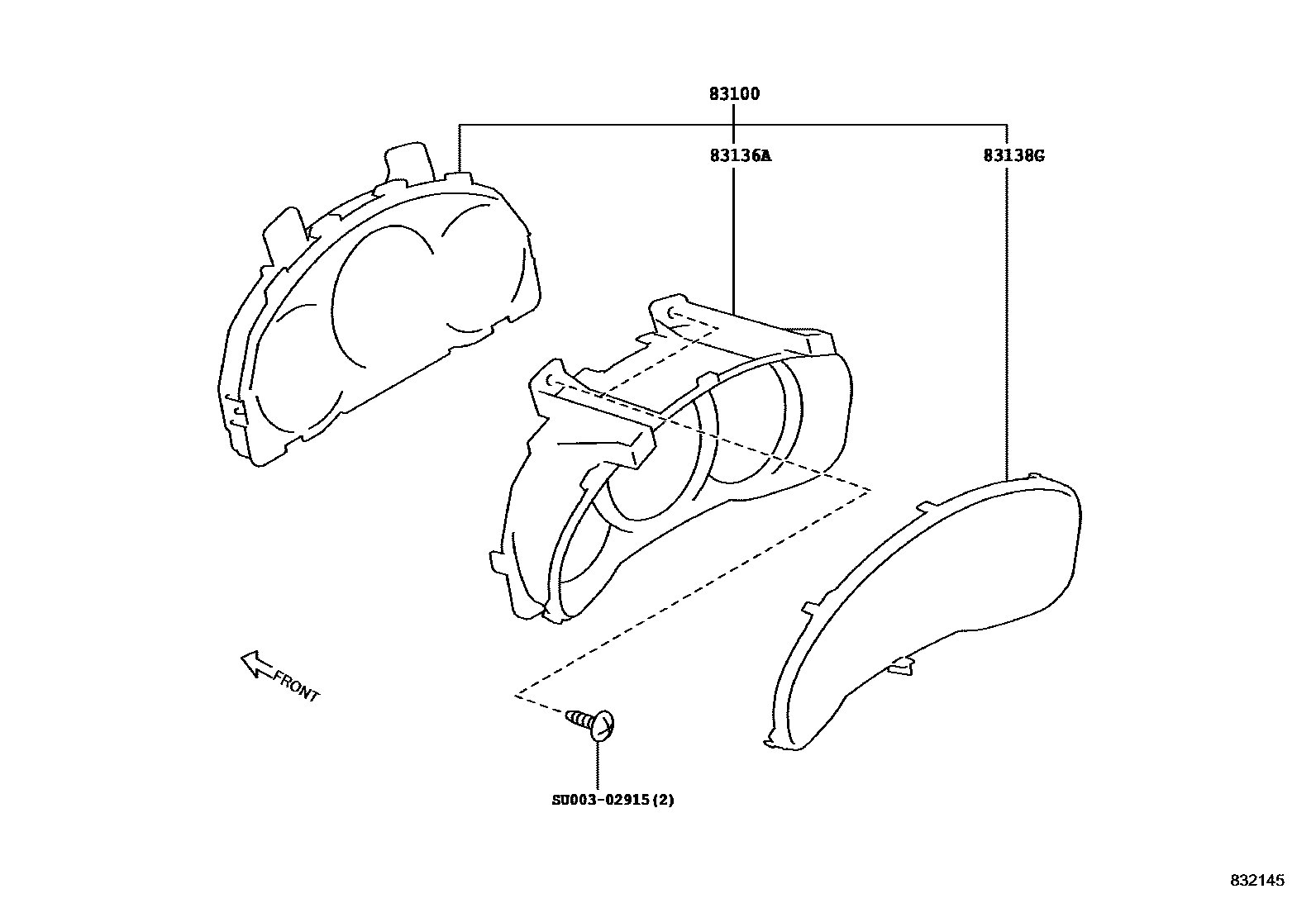

Parts diagram

83100METER ASSY, COMBINATION

mainSU00307013i201711-201806

DENSO

mainSU00307013i201607-201711

DENSO

mainSU00307013i201807-201907

DENSO

mainSU00308254i201908-202012

83136ACOVER, COMBINATION METER

mainSU00302618i201807-201907

mainSU00302618i201607-201711

mainSU00302618i201711-201806

mainSU00302618i201908-202012

mainSU00307022i201607-201711

mainSU00307022i201807-201907

mainSU00307022i201908-202012

mainSU00307022i201711-201806

83138GGLASS, COMBINATION METER

mainSU00302619i201607-201711

mainSU00302619i201711-201806

mainSU00302619i201908-202012

mainSU00302619i201807-201907

SU00302915

mainSU003-02915¥30

4 parts on this diagram · 1 diagram in section
