Toyota 86 — FRONT DOOR PANEL & GLASS

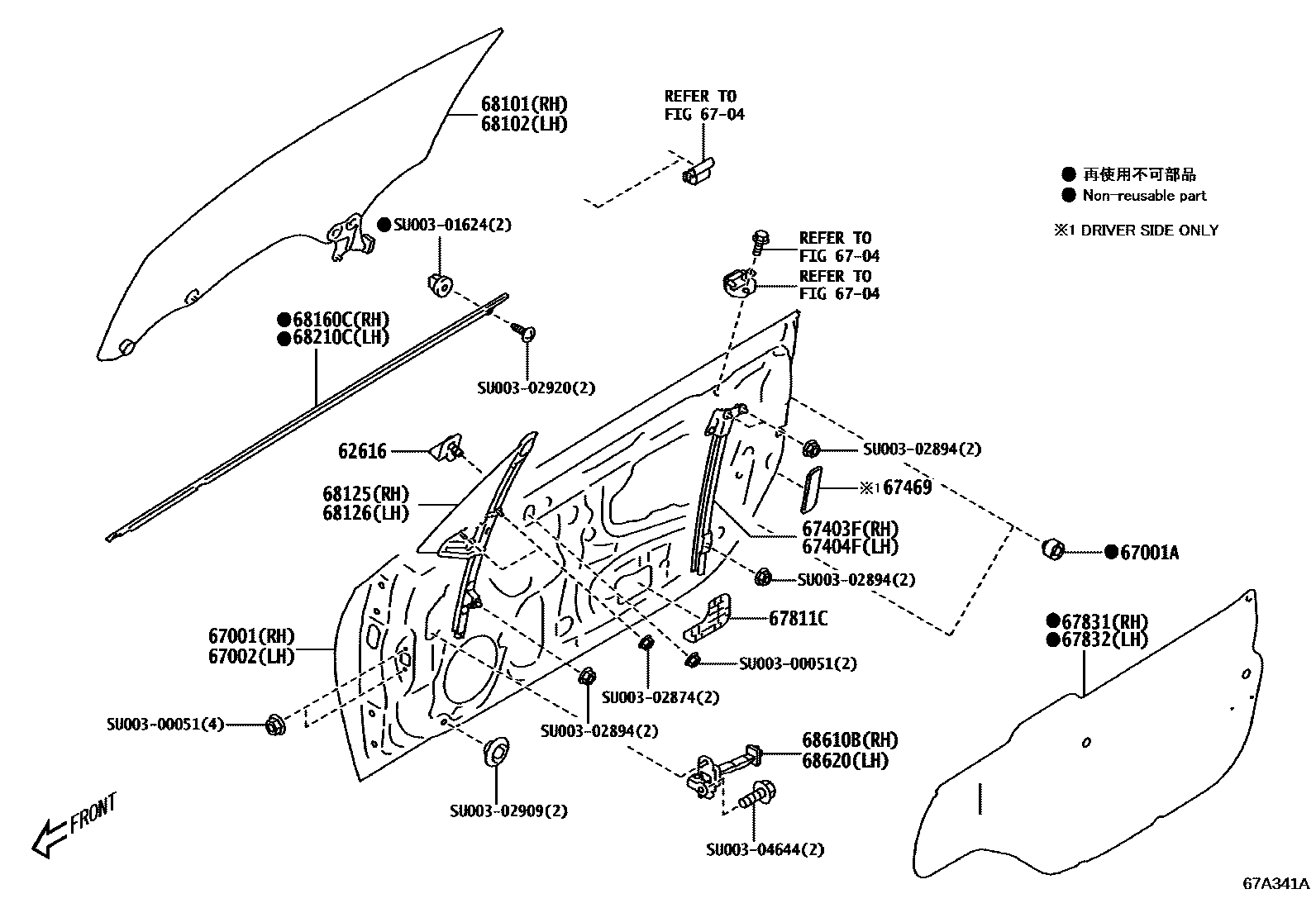

Parts diagram

62616STOPPER, FRONT DOOR SASH

mainSU00304118i201607-202012

67001PANEL SUB-ASSY, FRONT DOOR, RH

mainSU00301558i201607-202012

67001ACUSHION, FRONT DOOR PANEL

mainSU00304136i201607-202012

67002PANEL SUB-ASSY, FRONT DOOR, LH

mainSU00301559i201607-202012

6704

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

mainSU00301608i201607-202012

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

mainSU00301609i201607-202012

67469PROTECTOR, FRONT DOOR GUIDE

mainSU00301625i201607-202012

67811CCOVER, FRONT DOOR HOLE

mainSU00301604i201607-202012

RH

mainSU00301605i201607-202012

LH

67831COVER, FRONT DOOR SERVICE HOLE, RH

mainSU00301610i201607-202012

mainSU00301612i201607-202012

67832COVER, FRONT DOOR SERVICE HOLE, LH

mainSU00301611i201607-202012

mainSU00301613i201607-202012

68101GLASS SUB-ASSY, FRONT DOOR, RH

mainSU003G0024i201607-202012

68102GLASS SUB-ASSY, FRONT DOOR, LH

mainSU003G0025i201607-202012

68125GLASS, FRONT DOOR FIX WINDOW, RH

mainSU003G0022i201607-202012

68126GLASS, FRONT DOOR FIX WINDOW, LH

mainSU003G0023i201607-202012

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

mainSU00305659i201607-202005

subSU003-08595¥6,200

mainSU00308595i202005-202012

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

mainSU00305660i201607-202005

subSU003-08596¥6,200

mainSU00308596i202005-202012

68610BCHECK ASSY, FRONT DOOR, RH

mainSU00301567i201607-201610

subSU003-07368¥3,380

mainSU00307368i201610-202012

68620CHECK ASSY, FRONT DOOR, LH

mainSU00301567i201607-201610

subSU003-07368¥3,380

mainSU00307368i201610-202012

SU00300051

mainSU003-00051¥20

SU00301624

mainSU003-01624¥60

SU00302874

mainSU003-02874¥90

SU00302894

mainSU003-02894¥40

SU00302909

mainSU003-02909¥30

SU00302920

mainSU003-02920¥30

SU00304644

mainSU003-04644¥70

26 parts on this diagram · 4 diagrams in section
