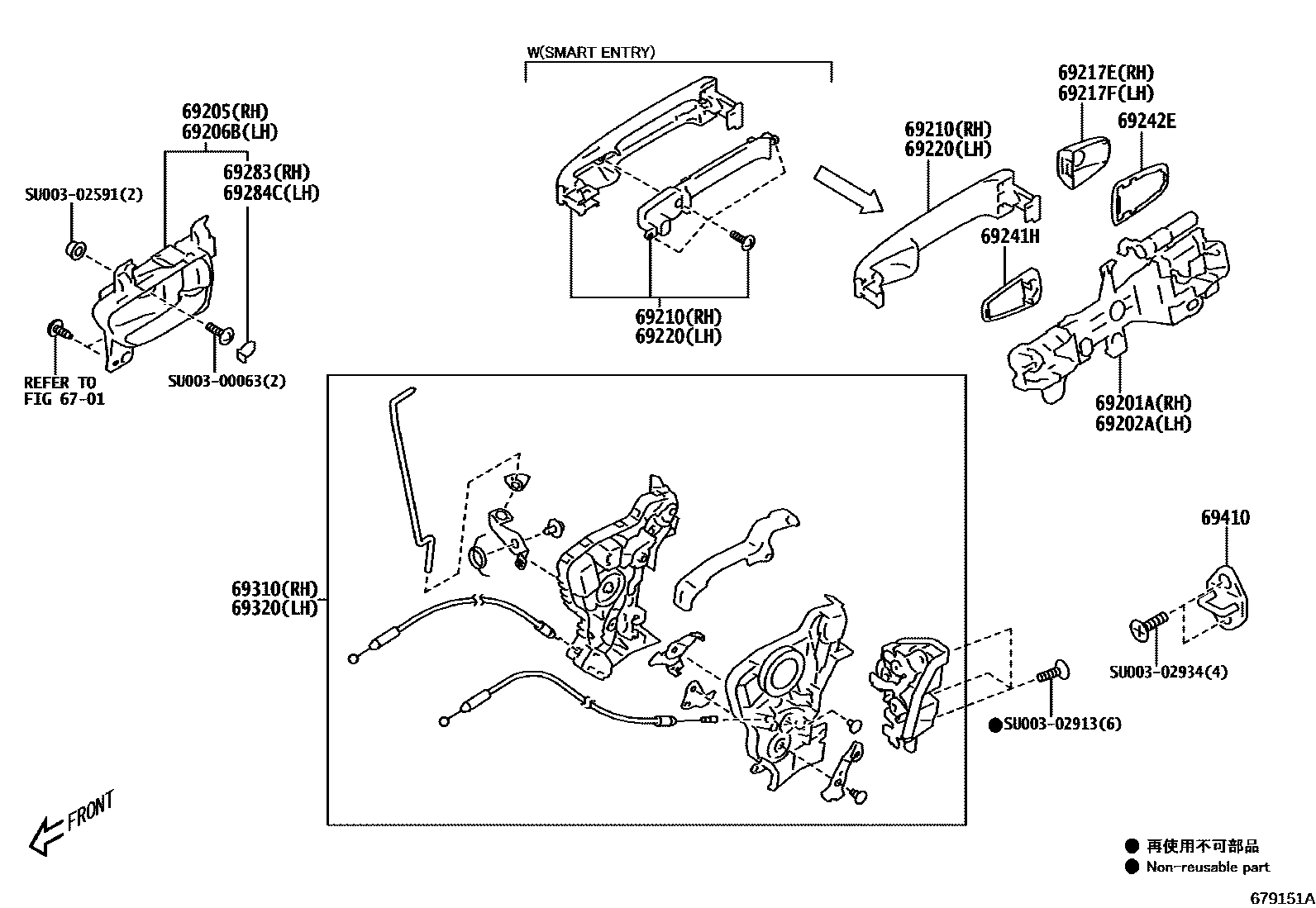

Toyota 86 — FRONT DOOR LOCK & HANDLE

6701

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

mainSU00301584iZN6..F201711-201806

mainSU00301584iZN6201908-202012

mainSU00301584iZN6201807-201907

mainSU00301584iZN6201607-201711

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

mainSU00301585iZN6..F201711-201806

mainSU00301585iZN6201807-201907

mainSU00301585iZN6201607-201711

mainSU00301585iZN6201908-202012

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

mainSU00304769iZN6201607-201711

BLACK

subSU003-08369¥1,890

mainSU00304769iZN6..F201711-201806

BLACK

subSU003-08369¥1,890

mainSU00304769iZN6201807-201907

BLACK

subSU003-08369¥1,890

mainSU00304769iZN6201908-202009

BLACK

subSU003-08369¥1,890

mainSU00308369iZN6202009-202012

BLACK

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

mainSU00304770iZN6201807-201907

BLACK

subSU003-08370¥1,890

mainSU00304770iZN6201607-201711

BLACK

subSU003-08370¥1,890

mainSU00304770iZN6..F201711-201806

BLACK

subSU003-08370¥1,890

mainSU00304770iZN6201908-202009

BLACK

subSU003-08370¥1,890

mainSU00308370iZN6202009-202012

BLACK

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

mainSU00301588iZN6..STD201607-201711

DARK GRAY METALLIC,61K

mainSU00301588iZN6..STD201807-201907

DARK GRAY METALLIC,61K

mainSU00301588iZN6..STD..F201711-201806

DARK GRAY METALLIC,61K

mainSU00301589iZN6..STD201607-201711

ORANGE METALLIC,H8R

mainSU00301592iZN6..STD201908-202012

CRYSTAL BLACK SILICA,D4S

mainSU00301592iZN6..STD201807-201907

CRYSTAL BLACK SILICA,D4S

mainSU00301592iZN6..STD..F201711-201806

CRYSTAL BLACK SILICA,D4S

mainSU00301592iZN6..STD201607-201711

CRYSTAL BLACK SILICA,D4S

mainSU00301595iZN6..HI201607-201711

DARK GRAY METALLIC,61K

mainSU00301595iZN6..HI1,HI2,SPE1,SPE2201711-201806

DARK GRAY METALLIC,61K

mainSU00301595iZN6..HI1,HI2,SPE1,SPE2201807-201907

DARK GRAY METALLIC,61K

mainSU00301596iZN6..HI201607-201711

ORANGE METALLIC,H8R

mainSU00301599iZN6..HI201607-201711

CRYSTAL BLACK SILICA,D4S

mainSU00301599iZN6..HI1,HI2201908-202012

CRYSTAL BLACK SILICA,D4S

mainSU00301599iZN6..HI1,HI2201711-201806

CRYSTAL BLACK SILICA,D4S

mainSU00301599iZN6..HI1,HI2,TRD201807-201907

CRYSTAL BLACK SILICA,D4S

mainSU00305304iZN6..STD..F201711-201806

ICE SILVER METALLIC,G1U

mainSU00305304iZN6..STD201607-201711

ICE SILVER METALLIC,G1U

mainSU00305304iZN6..STD201807-201907

ICE SILVER METALLIC,G1U

mainSU00305304iZN6..STD201908-202012

ICE SILVER METALLIC,G1U

mainSU00305305iZN6..STD201607-201711

CRYSTAL WHITE PEARL,K1X

mainSU00305305iZN6..STD201908-202012

CRYSTAL WHITE PEARL,K1X

mainSU00305305iZN6..STD201807-201907

CRYSTAL WHITE PEARL,K1X

mainSU00305305iZN6..STD..F201711-201806

CRYSTAL WHITE PEARL,K1X

mainSU00305306iZN6..HI1,HI2,SPE1,SPE2201807-201907

ICE SILVER METALLIC,G1U

mainSU00305306iZN6..HI201607-201711

ICE SILVER METALLIC,G1U

mainSU00305306iZN6..HI1,HI2,SPE1,SPE2201711-201806

ICE SILVER METALLIC,G1U

mainSU00305306iZN6..HI1,HI2,SPE1201908-202012

ICE SILVER METALLIC,G1U

mainSU00305307iZN6..HI1,HI2,SPE1,SPE2201711-201806

CRYSTAL WHITE PEARL,K1X

mainSU00305307iZN6..HI1,HI2,SPE1,SPE2201807-201907

CRYSTAL WHITE PEARL,K1X

mainSU00305307iZN6..HI1,HI2,SPE1201908-202012

CRYSTAL WHITE PEARL,K1X

mainSU00305307iZN6..HI,SPE201607-201711

CRYSTAL WHITE PEARL,K1X

mainSU00305919iZN6..STD201607-201711

LAPIS BLUE PEARL,K3X

mainSU00305919iZN6..STD201908-202012

LAPIS BLUE PEARL,K3X

mainSU00305919iZN6..STD..F201711-201806

LAPIS BLUE PEARL,K3X

mainSU00305919iZN6..STD201807-201907

LAPIS BLUE PEARL,K3X

mainSU00305920iZN6..STD201908-202012

PURE RED,M7Y

mainSU00305920iZN6..STD201607-201711

PURE RED,M7Y

mainSU00305920iZN6..STD..F201711-201806

PURE RED,M7Y

mainSU00305920iZN6..STD201807-201907

PURE RED,M7Y

mainSU00305921iZN6..HI1,HI2,SPE1201908-202012

LAPIS BLUE PEARL,K3X

mainSU00305921iZN6..HI1,HI2,SPE1,SPE2201807-201907

LAPIS BLUE PEARL,K3X

mainSU00305921iZN6..HI1,HI2,SPE1,SPE2201711-201806

LAPIS BLUE PEARL,K3X

mainSU00305921iZN6..HI201607-201711

LAPIS BLUE PEARL,K3X

mainSU00305922iZN6..HI201607-201711

PURE RED,M7Y

mainSU00305922iZN6..HI1,HI2,SPE1,SPE2201711-201806

PURE RED,M7Y

mainSU00305922iZN6..HI1,HI2,SPE1,SPE2201807-201907

PURE RED,M7Y

mainSU00305922iZN6..HI1,HI2,SPE1201908-202012

PURE RED,M7Y

mainSU00307387iZN6..SPE201607-201711

SOLAR ORANGE,NBB

mainSU00307728iZN6..STD..F201711-201806

SOLID GRAY,PBA

mainSU00307729iZN6..HI1,HI2,SPE1,SPE2201711-201806

SOLID GRAY,PBA

mainSU00307860iZN6..STD201807-201907

BRIGHT BLUE,DAR

mainSU00307860iZN6..STD201908-202012

BRIGHT BLUE,DAR

mainSU00307861iZN6..HI1,HI2,SPE1201908-202012

BRIGHT BLUE,DAR

mainSU00307861iZN6..HI1,HI2,SPE1,SPE2201807-201907

BRIGHT BLUE,DAR

mainSU00308137iZN6..STD201908-202012

MAGNETITE GRAY M,P8Y

mainSU00308138iZN6..HI1,HI2,SPE1201908-202012

MAGNETITE GRAY M,P8Y

mainSU00308139iZN6..SPE2201908-202012

BRITISH RACING GREEN

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

mainSU00301576iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

DARK GRAY METALLIC,61K

mainSU00301576iZN6..HI,STD201607-201711

DARK GRAY METALLIC,61K

mainSU00301576iZN6..F201711-201806

DARK GRAY METALLIC,61K

mainSU00301577iZN6..HI,STD201607-201711

ORANGE METALLIC,H8R

mainSU00301580iZN6..HI,STD201607-201711

CRYSTAL BLACK SILICA,D4S

mainSU00301580iZN6..(HI1,HI2,STD)..F201711-201806

CRYSTAL BLACK SILICA,D4S

mainSU00301580iZN6..HI1,HI2,STD,TRD201807-201907

CRYSTAL BLACK SILICA,D4S

mainSU00301580iZN6..HI1,HI2,STD201908-202012

CRYSTAL BLACK SILICA,D4S

mainSU00305302iZN6..HI1,HI2,SPE1,STD201908-202012

ICE SILVER METALLIC,G1U

mainSU00305302iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

ICE SILVER METALLIC,G1U

mainSU00305302iZN6..HI,STD201607-201711

ICE SILVER METALLIC,G1U

mainSU00305302iZN6..F201711-201806

ICE SILVER METALLIC,G1U

mainSU00305303iZN6..HI1,HI2,SPE1,STD201908-202012

CRYSTAL WHITE PEARL,K1X

mainSU00305303iZN6201607-201711

CRYSTAL WHITE PEARL,K1X

mainSU00305303iZN6..F201711-201806

CRYSTAL WHITE PEARL,K1X

mainSU00305303iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

CRYSTAL WHITE PEARL,K1X

mainSU00305917iZN6..F201711-201806

LAPIS BLUE PEARL,K3X

mainSU00305917iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

LAPIS BLUE PEARL,K3X

mainSU00305917iZN6..HI1,HI2,SPE1,STD201908-202012

LAPIS BLUE PEARL,K3X

mainSU00305917iZN6..HI,STD201607-201711

LAPIS BLUE PEARL,K3X

mainSU00305918iZN6..HI,STD201607-201711

PURE RED,M7Y

mainSU00305918iZN6..F201711-201806

PURE RED,M7Y

mainSU00305918iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

PURE RED,M7Y

mainSU00305918iZN6..HI1,HI2,SPE1,STD201908-202012

PURE RED,M7Y

mainSU00307386iZN6..SPE201607-201711

SOLAR ORANGE,NBB

mainSU00307727iZN6..F201711-201806

SOLID GRAY,PBA

mainSU00307859iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

BRIGHT BLUE,DAR

mainSU00307859iZN6..HI1,HI2,SPE1,STD201908-202012

BRIGHT BLUE,DAR

mainSU00308135iZN6..HI1,HI2,SPE1,STD201908-202012

MAGNETITE GRAY M,P8Y

mainSU00308136iZN6..SPE2201908-202012

BRITISH RACING GREEN

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

mainSU00301569iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

DARK GRAY METALLIC,61K

mainSU00301569iZN6..HI,STD201607-201711

DARK GRAY METALLIC,61K

mainSU00301569iZN6..F201711-201806

DARK GRAY METALLIC,61K

mainSU00301570iZN6..HI,STD201607-201711

ORANGE METALLIC,H8R

mainSU00301573iZN6..(HI1,HI2,STD)..F201711-201806

CRYSTAL BLACK SILICA,D4S

mainSU00301573iZN6..HI,STD201607-201711

CRYSTAL BLACK SILICA,D4S

mainSU00301573iZN6..HI1,HI2,STD,TRD201807-201907

CRYSTAL BLACK SILICA,D4S

mainSU00301573iZN6..HI1,HI2,STD201908-202012

CRYSTAL BLACK SILICA,D4S

mainSU00305300iZN6..F201711-201806

ICE SILVER METALLIC,G1U

mainSU00305300iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

ICE SILVER METALLIC,G1U

mainSU00305300iZN6..HI1,HI2,SPE1,STD201908-202012

ICE SILVER METALLIC,G1U

mainSU00305300iZN6..HI,STD201607-201711

ICE SILVER METALLIC,G1U

mainSU00305301iZN6201607-201711

CRYSTAL WHITE PEARL,K1X

mainSU00305301iZN6..F201711-201806

CRYSTAL WHITE PEARL,K1X

mainSU00305301iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

CRYSTAL WHITE PEARL,K1X

mainSU00305301iZN6..HI1,HI2,SPE1,STD201908-202012

CRYSTAL WHITE PEARL,K1X

mainSU00305915iZN6..HI1,HI2,SPE1,STD201908-202012

LAPIS BLUE PEARL,K3X

mainSU00305915iZN6..F201711-201806

LAPIS BLUE PEARL,K3X

mainSU00305915iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

LAPIS BLUE PEARL,K3X

mainSU00305915iZN6..HI,STD201607-201711

LAPIS BLUE PEARL,K3X

mainSU00305916iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

PURE RED,M7Y

mainSU00305916iZN6..HI1,HI2,SPE1,STD201908-202012

PURE RED,M7Y

mainSU00305916iZN6..HI,STD201607-201711

PURE RED,M7Y

mainSU00305916iZN6..F201711-201806

PURE RED,M7Y

mainSU00307385iZN6..SPE201607-201711

SOLAR ORANGE,NBB

mainSU00307726iZN6..F201711-201806

SOLID GRAY,PBA

mainSU00307858iZN6..HI1,HI2,SPE1,STD201908-202012

BRIGHT BLUE,DAR

mainSU00307858iZN6..HI1,HI2,SPE1,SPE2,STD201807-201907

BRIGHT BLUE,DAR

mainSU00308133iZN6..HI1,HI2,SPE1,STD201908-202012

MAGNETITE GRAY M,P8Y

mainSU00308134iZN6..SPE2201908-202012

BRITISH RACING GREEN

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

mainSU00301588iZN6..STD..F201711-201806

DARK GRAY METALLIC,61K

mainSU00301588iZN6..STD201607-201711

DARK GRAY METALLIC,61K

mainSU00301588iZN6..STD201807-201907

DARK GRAY METALLIC,61K

mainSU00301589iZN6..STD201607-201711

ORANGE METALLIC,H8R

mainSU00301592iZN6..STD201807-201907

CRYSTAL BLACK SILICA,D4S

mainSU00301592iZN6..STD201908-202012

CRYSTAL BLACK SILICA,D4S

mainSU00301592iZN6..STD..F201711-201806

CRYSTAL BLACK SILICA,D4S

mainSU00301592iZN6..STD201607-201711

CRYSTAL BLACK SILICA,D4S

mainSU00301595iZN6..HI1,HI2,SPE1,SPE2201807-201907

DARK GRAY METALLIC,61K

mainSU00301595iZN6..HI201607-201711

DARK GRAY METALLIC,61K

mainSU00301595iZN6..HI1,HI2,SPE1,SPE2201711-201806

DARK GRAY METALLIC,61K

mainSU00301596iZN6..HI201607-201711

ORANGE METALLIC,H8R

mainSU00301599iZN6..HI1,HI2,TRD201807-201907

CRYSTAL BLACK SILICA,D4S

mainSU00301599iZN6..HI1,HI2201711-201806

CRYSTAL BLACK SILICA,D4S

mainSU00301599iZN6..HI1,HI2201908-202012

CRYSTAL BLACK SILICA,D4S

mainSU00301599iZN6..HI201607-201711

CRYSTAL BLACK SILICA,D4S

mainSU00305304iZN6..STD..F201711-201806

ICE SILVER METALLIC,G1U

mainSU00305304iZN6..STD201807-201907

ICE SILVER METALLIC,G1U

mainSU00305304iZN6..STD201908-202012

ICE SILVER METALLIC,G1U

mainSU00305304iZN6..STD201607-201711

ICE SILVER METALLIC,G1U

mainSU00305305iZN6..STD201908-202012

CRYSTAL WHITE PEARL,K1X

mainSU00305305iZN6..STD201607-201711

CRYSTAL WHITE PEARL,K1X

mainSU00305305iZN6..STD..F201711-201806

CRYSTAL WHITE PEARL,K1X

mainSU00305305iZN6..STD201807-201907

CRYSTAL WHITE PEARL,K1X

mainSU00305306iZN6..HI1,HI2,SPE1201908-202012

ICE SILVER METALLIC,G1U

mainSU00305306iZN6..HI1,HI2,SPE1,SPE2201711-201806

ICE SILVER METALLIC,G1U

mainSU00305306iZN6..HI201607-201711

ICE SILVER METALLIC,G1U

mainSU00305306iZN6..HI1,HI2,SPE1,SPE2201807-201907

ICE SILVER METALLIC,G1U

mainSU00305307iZN6..HI1,HI2,SPE1,SPE2201711-201806

CRYSTAL WHITE PEARL,K1X

mainSU00305307iZN6..HI,SPE201607-201711

CRYSTAL WHITE PEARL,K1X

mainSU00305307iZN6..HI1,HI2,SPE1,SPE2201807-201907

CRYSTAL WHITE PEARL,K1X

mainSU00305307iZN6..HI1,HI2,SPE1201908-202012

CRYSTAL WHITE PEARL,K1X

mainSU00305919iZN6..STD201607-201711

LAPIS BLUE PEARL,K3X

mainSU00305919iZN6..STD..F201711-201806

LAPIS BLUE PEARL,K3X

mainSU00305919iZN6..STD201908-202012

LAPIS BLUE PEARL,K3X

mainSU00305919iZN6..STD201807-201907

LAPIS BLUE PEARL,K3X

mainSU00305920iZN6..STD201807-201907

PURE RED,M7Y

mainSU00305920iZN6..STD201607-201711

PURE RED,M7Y

mainSU00305920iZN6..STD..F201711-201806

PURE RED,M7Y

mainSU00305920iZN6..STD201908-202012

PURE RED,M7Y

mainSU00305921iZN6..HI1,HI2,SPE1,SPE2201711-201806

LAPIS BLUE PEARL,K3X

mainSU00305921iZN6..HI1,HI2,SPE1,SPE2201807-201907

LAPIS BLUE PEARL,K3X

mainSU00305921iZN6..HI201607-201711

LAPIS BLUE PEARL,K3X

mainSU00305921iZN6..HI1,HI2,SPE1201908-202012

LAPIS BLUE PEARL,K3X

mainSU00305922iZN6..HI1,HI2,SPE1,SPE2201711-201806

PURE RED,M7Y

mainSU00305922iZN6..HI201607-201711

PURE RED,M7Y

mainSU00305922iZN6..HI1,HI2,SPE1201908-202012

PURE RED,M7Y

mainSU00305922iZN6..HI1,HI2,SPE1,SPE2201807-201907

PURE RED,M7Y

mainSU00307387iZN6..SPE201607-201711

SOLAR ORANGE,NBB

mainSU00307728iZN6..STD..F201711-201806

SOLID GRAY,PBA

mainSU00307729iZN6..HI1,HI2,SPE1,SPE2201711-201806

SOLID GRAY,PBA

mainSU00307860iZN6..STD201807-201907

BRIGHT BLUE,DAR

mainSU00307860iZN6..STD201908-202012

BRIGHT BLUE,DAR

mainSU00307861iZN6..HI1,HI2,SPE1,SPE2201807-201907

BRIGHT BLUE,DAR

mainSU00307861iZN6..HI1,HI2,SPE1201908-202012

BRIGHT BLUE,DAR

mainSU00308137iZN6..STD201908-202012

MAGNETITE GRAY M,P8Y

mainSU00308138iZN6..HI1,HI2,SPE1201908-202012

MAGNETITE GRAY M,P8Y

mainSU00308139iZN6..SPE2201908-202012

BRITISH RACING GREEN

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

mainSU00301614iZN6201607-201711

mainSU00301614iZN6..F201711-201806

mainSU00301614iZN6201908-202012

mainSU00301614iZN6201807-201907

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

mainSU00301615iZN6..F201711-201806

mainSU00301615iZN6201607-201711

mainSU00301615iZN6201807-201907

mainSU00301615iZN6201908-202012

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

mainSU00301566iZN6..F201711-201806

BLACK

mainSU00301566iZN6201607-201711

BLACK

mainSU00301566iZN6201807-201907

BLACK

mainSU00301566iZN6201908-202012

BLACK

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

mainSU00301566iZN6201607-201711

BLACK

mainSU00301566iZN6..F201711-201806

BLACK

mainSU00301566iZN6201807-201907

BLACK

mainSU00301566iZN6201908-202012

BLACK

69310LOCK ASSY, FRONT DOOR, RH

mainSU00304112iZN6..STD201908-202012

mainSU00304112iZN6..STD201607-201711

mainSU00304112iZN6..STD..F201711-201806

mainSU00304112iZN6..STD201807-201907

mainSU00304114iZN6..HI1,HI2,SPE1,SPE2,TRD201807-201907

mainSU00304114iZN6..HI1,HI2,SPE1,SPE2201711-201806

mainSU00304114iZN6..HI,SPE201607-201711

mainSU00304114iZN6..HI1,HI2,SPE1,SPE2201908-202012

69320LOCK ASSY, FRONT DOOR, LH

mainSU00304113iZN6..STD201807-201907

mainSU00304113iZN6..STD201607-201711

mainSU00304113iZN6..STD..F201711-201806

mainSU00304113iZN6..STD201908-202012

mainSU00304115iZN6..HI1,HI2,SPE1,SPE2,TRD201807-201907

mainSU00304115iZN6..HI,SPE201607-201711

mainSU00304115iZN6..HI1,HI2,SPE1,SPE2201908-202012

mainSU00304115iZN6..HI1,HI2,SPE1,SPE2201711-201806

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

mainSU00304119iZN6201607-201711

mainSU00304119iZN6201908-202012

mainSU00304119iZN6..F201711-201806

mainSU00304119iZN6201807-201907

SU00300063

mainSU003-00063¥20

SU00302591

mainSU003-02591¥30

SU00302913

mainSU003-02913¥40

SU00302934

mainSU003-02934¥70

20 parts on this diagram · 1 diagram in section
