Toyota 86 — BATTERY CARRIER

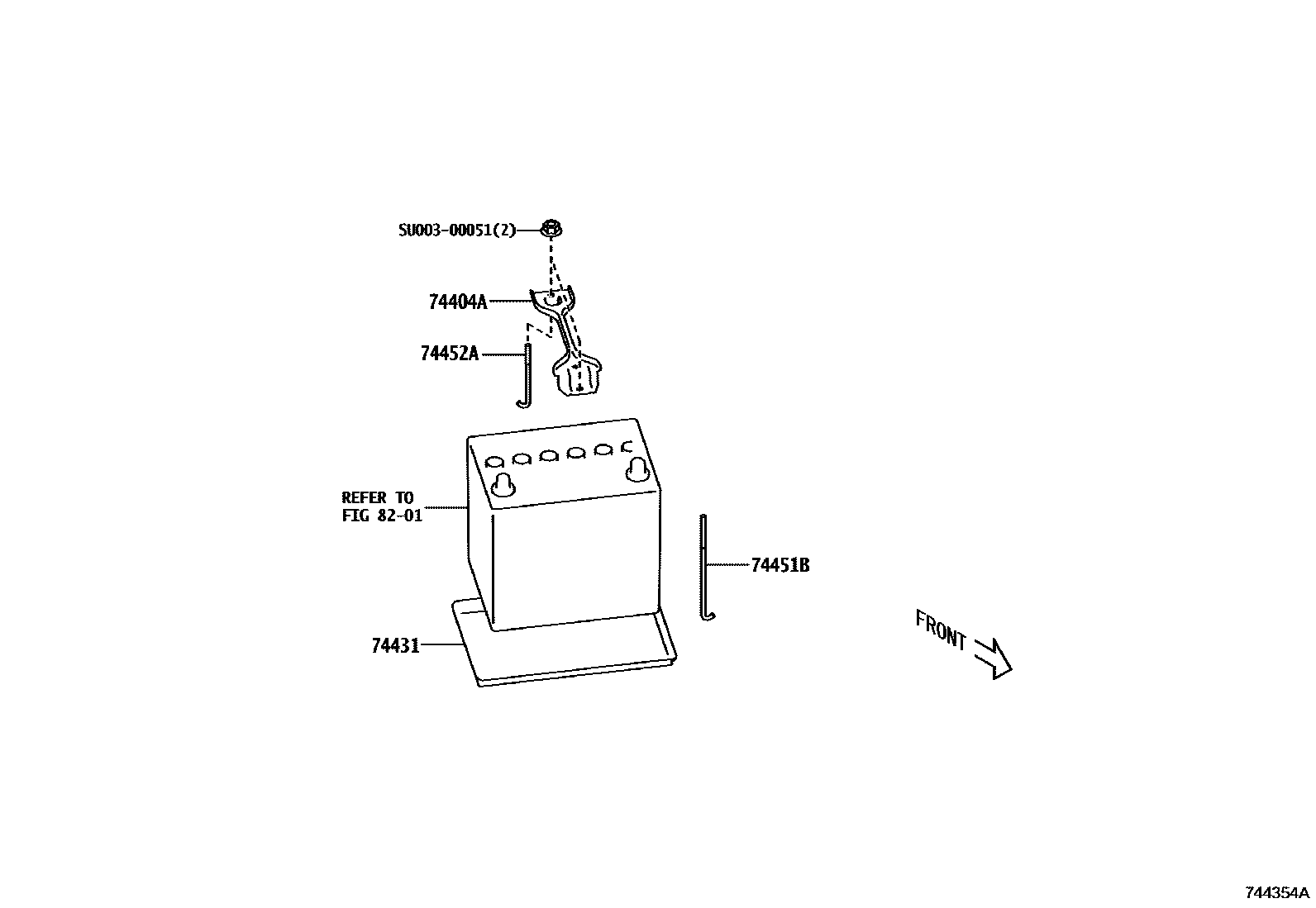

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

mainSU00302417i201607-201711

mainSU00302417i201711-201806

mainSU00302417i201807-201907

mainSU00302417i201908-202012

74431TRAY, BATTERY

mainSU00302411i201607-201711

mainSU00302411i201711-201806

mainSU00302411i201807-201907

mainSU00302411i201908-202012

74451BBOLT, BATTERY CLAMP

mainSU00304626i201607-201711

mainSU00304626i201711-201806

mainSU00304626i201807-201907

mainSU00304626i201908-202012

74452ABOLT, BATTERY CLAMP, NO.2

mainSU00302416i201607-201711

mainSU00302416i201711-201806

mainSU00302416i201807-201907

mainSU00302416i201908-202012

8201

SU00300051

mainSU003-00051¥20

6 parts on this diagram · 1 diagram in section
