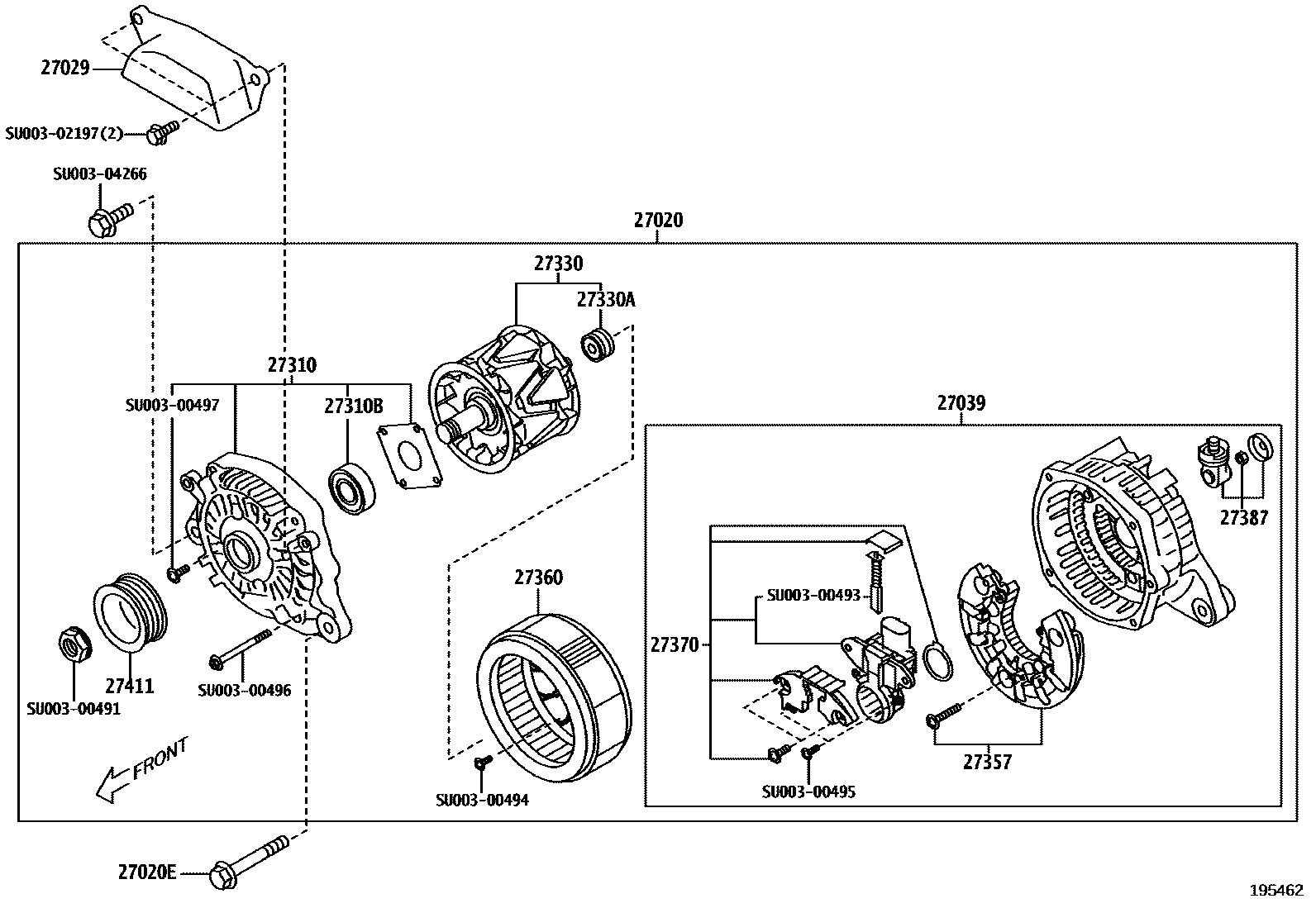

Toyota 86 — ALTERNATOR

0001 112V 130A 0002 112V 150A

27020ALTERNATOR ASSY

mainSU00305860iFA20..ZN6..HI1,SPE1201807-201907

12V 130A

mainSU00305860iFA20..ZN6..HI1,SPE1201711-201806

12V 130A

mainSU00305860iFA20..ZN6..HI201607-201711

12V 130A

mainSU00306464iFA20..ZN6201908-202012

12V 150A

mainSU00306464iFA20..ZN6..HI2,SPE2,STD,TRD201807-201907

12V 150A

mainSU00306464iFA20..ZN6..(HI2,SPE2,STD)..F201711-201806

12V 150A

mainSU00306464iFA20..ZN6..SPE,STD201607-201711

12V 150A

27020EBOLT(FOR ALTERNATOR)

mainSU00304474iFA20..ZN6201607-201711

mainSU00304474iFA20..ZN6..F201711-201806

mainSU00304474iFA20..ZN6201807-201907

mainSU00304474iFA20..ZN6201908-202012

27029COVER, ALTERNATOR

mainSU00300506iFA20..ZN6201908-202012

mainSU00300506iFA20..ZN6201607-201711

mainSU00300506iFA20..ZN6..F201711-201806

mainSU00300506iFA20..ZN6201807-201907

27039COVER, ALTERNATOR REAR END

mainSU00300490iFA20..ZN6..HI1,SPE1201807-201907

mainSU00300490iFA20..ZN6..HI1,SPE1201711-201806

mainSU00300490iFA20..ZN6..HI201607-201711

mainSU00307081iFA20..ZN6201908-202012

mainSU00307081iFA20..ZN6..(HI2,SPE2,STD)..F201711-201806

mainSU00307081iFA20..ZN6..SPE,STD201607-201711

mainSU00307081iFA20..ZN6..HI2,SPE2,STD,TRD201807-201907

27310FRAME ASSY, DRIVE END, ALTERNATOR

mainSU00307180iFA20..ZN6..HI201607-201711

mainSU00307180iFA20..ZN6..HI1,SPE1201711-201806

mainSU00307180iFA20..ZN6..HI1,SPE1201807-201907

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

mainSU00305861iFA20..ZN6..HI201607-201711

mainSU00305861iFA20..ZN6..HI1,SPE1201711-201806

mainSU00305861iFA20..ZN6..HI1,SPE1201807-201907

27330ROTOR ASSY, ALTERNATOR

mainSU00307179iFA20..ZN6..HI201607-201709

subSU003-07827¥16,200

mainSU00307827iFA20..ZN6..HI1,SPE1201807-201907

mainSU00307827iFA20..ZN6..HI201709-201711

mainSU00307827iFA20..ZN6..HI1,SPE1201709-201806

27330ABEARING(FOR ALTERNATOR ROTOR)

mainSU00305862iFA20..ZN6..HI1,SPE1201807-201907

mainSU00305862iFA20..ZN6..HI1,SPE1201711-201806

mainSU00305862iFA20..ZN6..HI201607-201711

27357HOLDER, ALTERNATOR, W/RECTIFIER

mainSU00300513iFA20..ZN6..HI201607-201711

subSU003-00514¥9,100

mainSU00300513iFA20..ZN6..HI1,SPE1201711-201806

subSU003-00514¥9,100

mainSU00300513iFA20..ZN6..HI1,SPE1201807-201907

subSU003-00514¥9,100

27360COIL ASSY, ALTERNATOR

mainSU00300486iFA20..ZN6..HI201607-201711

mainSU00300486iFA20..ZN6..HI1,SPE1201711-201806

mainSU00300486iFA20..ZN6..HI1,SPE1201807-201907

27370HOLDER ASSY, ALTERNATOR BRUSH

mainSU00300512iFA20..ZN6..HI201607-201711

mainSU00300512iFA20..ZN6..HI1,SPE1201807-201907

mainSU00300512iFA20..ZN6..HI1,SPE1201711-201806

mainSU00306471iFA20..ZN6201908-202012

mainSU00306471iFA20..ZN6..SPE,STD201607-201711

mainSU00306471iFA20..ZN6..(HI2,SPE2,STD)..F201711-201806

mainSU00306471iFA20..ZN6..HI2,SPE2,STD,TRD201807-201907

27387INSULATOR, TERMINAL

mainSU00300511iFA20..ZN6..HI1,SPE1201807-201907

mainSU00300511iFA20..ZN6..HI201607-201711

mainSU00300511iFA20..ZN6..HI1,SPE1201711-201806

mainSU00306470iFA20..ZN6..(HI2,SPE2,STD)..F201711-201806

mainSU00306470iFA20..ZN6..SPE,STD201607-201711

mainSU00306470iFA20..ZN6..HI2,SPE2,STD,TRD201807-201907

mainSU00306470iFA20..ZN6201908-202012

27411PULLEY, ALTERNATOR

mainSU00300492iFA20..ZN6..HI201607-201711

mainSU00300492iFA20..ZN6..HI1,SPE1201711-201806

mainSU00300492iFA20..ZN6..HI1,SPE1201807-201907

SU00300491

mainSU003-00491¥140

SU00300493

mainSU003-00493¥880

SU00300494

mainSU003-00494¥300

SU00300495

mainSU003-00495¥100

SU00300496

mainSU003-00496¥240

SU00300497

mainSU003-00497¥20

SU00302197

mainSU003-02197¥120

SU00304266

mainSU003-04266¥120

21 parts on this diagram · 2 diagrams in section
