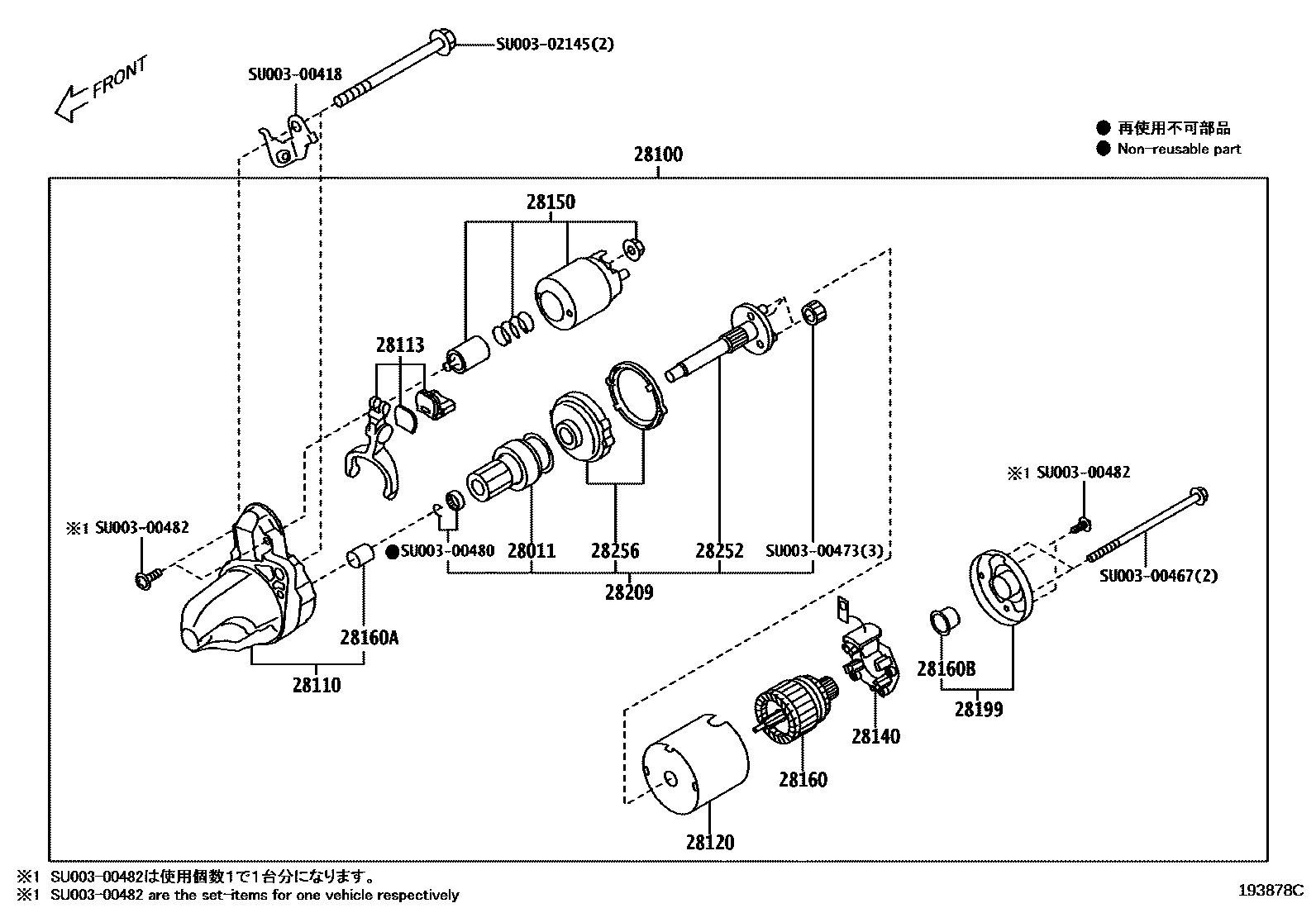

Toyota 86 — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
�P�Q�u�@�P�D�U�j�v
�P�Q�u�@�P�D�U�j�v
�P�Q�u�@�P�D�U�j�v
�P�Q�u�@�P�D�U�j�v
�P�Q�u�@�P�D�O�j�v
�P�Q�u�@�P�D�O�j�v
�P�Q�u�@�P�D�O�j�v
�P�Q�u�@�P�D�O�j�v
28110HOUSING ASSY, STARTER DRIVE
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
28140HOLDER ASSY, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
28160ABEARING, STARTER ARMATURE
28160BBEARING, STARTER ARMATURE, NO.2
28199COVER, STARTER
28209SHAFT SUB-ASSY, STARTER
28252GEAR, STARTER IDLE
28256GEAR, STARTER INTERNAL
SU00300418
SU00300467
SU00300473
SU00300480
SU00300482
SU00302145
20 parts on this diagram · 2 diagrams in section
