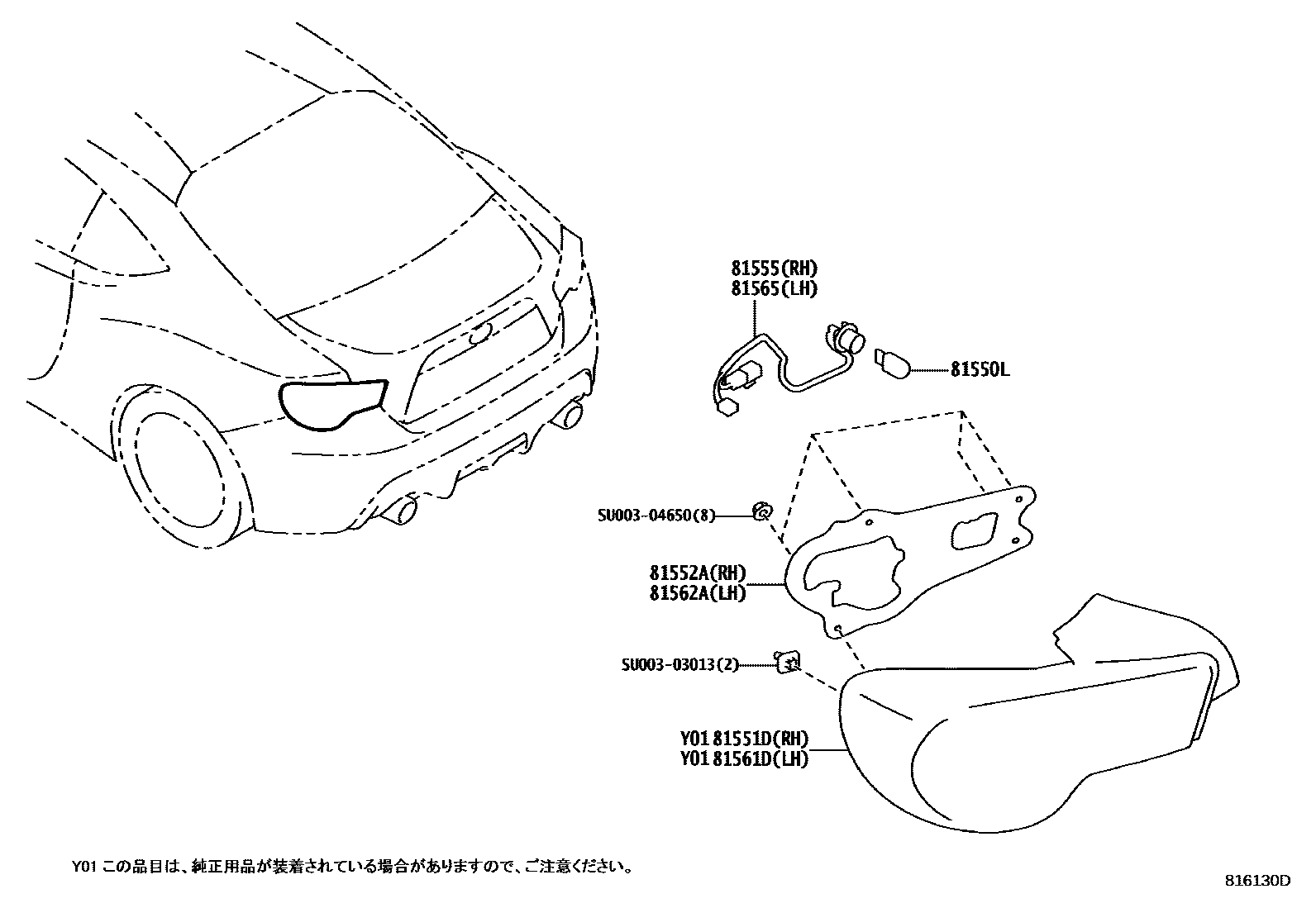

Toyota 86 — REAR COMBINATION LAMP

81550LBULB, REAR TURN SIGNAL LAMP

mainSU00302568iZN6201203-201607

sub90981-15011¥300

81551DLENS & BODY, REAR COMBINATION LAMP, RH

mainSU00302530iZN6201203-201308

subSU003-05808¥40,800

mainSU00305115iZN6..B201308-201404

subSU003-05808¥40,800

mainSU00305808iZN6201404-201607

81552AGASKET, REAR COMBINATION LAMP, RH

mainSU00302586iZN6201203-201301

subSU003-04708¥900

mainSU00304708iZN6201302-201308

subSU003-05121¥900

mainSU00305121iZN6..B201308-201607

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

mainSU00302573iZN6201203-201308

mainSU00305119iZN6..B201308-201607

81561DLENS & BODY, REAR COMBINATION LAMP, LH

mainSU00302531iZN6201203-201308

subSU003-05116¥40,500

mainSU00305116iZN6..B201308-201404

subSU003-05809¥40,800

mainSU00305809iZN6201404-201607

81562AGASKET, REAR COMBINATION LAMP, LH

mainSU00304315iZN6201203-201301

subSU003-04709¥900

mainSU00304709iZN6201302-201308

subSU003-05122¥900

mainSU00305122iZN6..B201308-201607

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

mainSU00302573iZN6201203-201308

mainSU00305119iZN6..B201308-201607

SU00303013

mainSU003-03013¥140

SU00304650

mainSU003-04650¥70

9 parts on this diagram · 1 diagram in section
