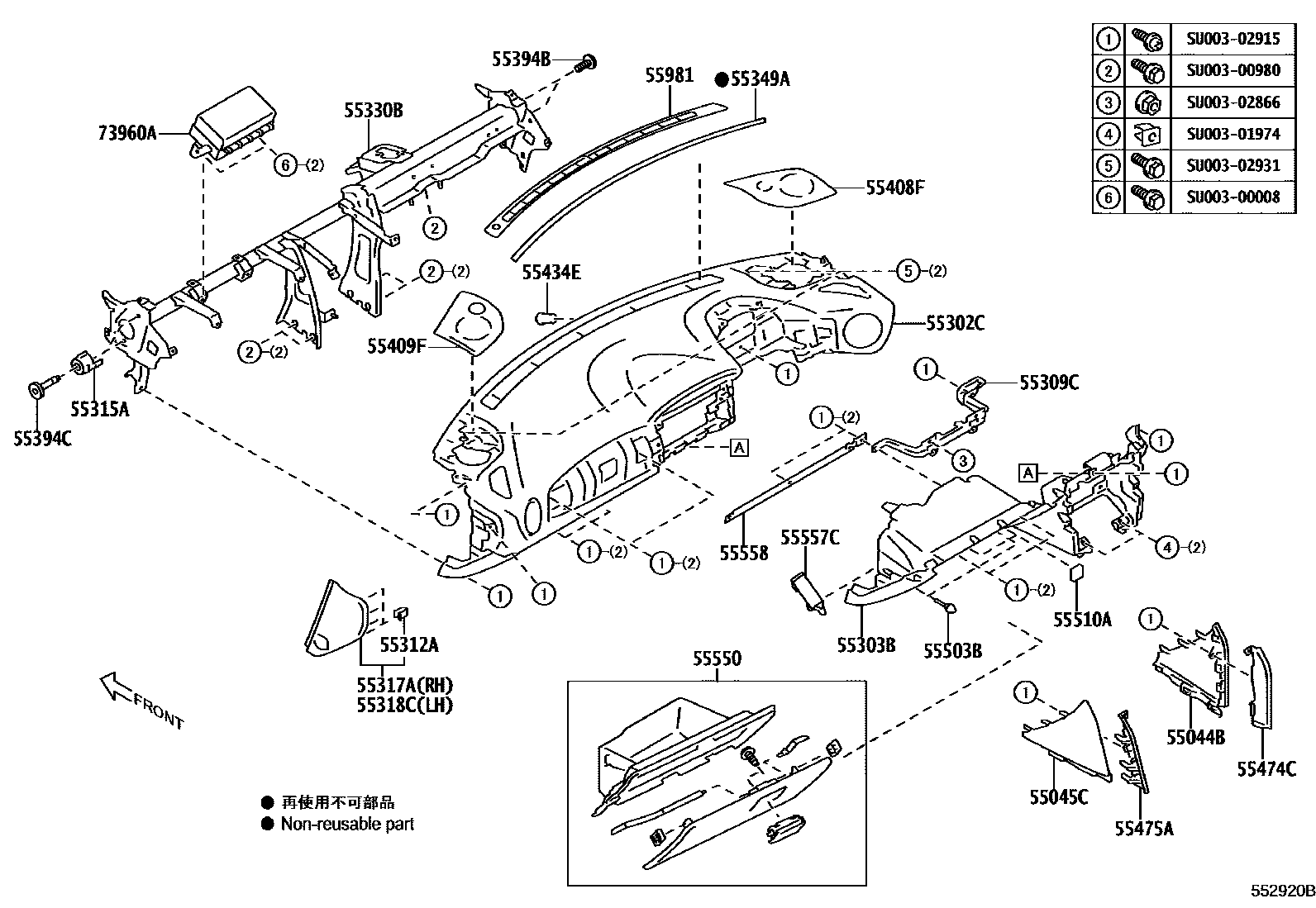

Toyota 86 — INSTRUMENT PANEL & GLOVE COMPARTMENT
55044BPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER
55045CPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER
55302CPANEL SUB-ASSY, INSTRUMENT
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
55309CREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER
55312ACLIP, INSTRUMENT PANEL
55315ASPACER, INSTRUMENT PANEL, NO.1
55317APANEL, INSTRUMENT SIDE, RH
55318CPANEL, INSTRUMENT SIDE, LH
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55434ECAP
55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55503BCUSHION(FOR GLOVE COMPARTMENT)
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55550DOOR ASSY, GLOVE COMPARTMENT
55557CDAMPER, GLOVE COMPARTMENT DOOR
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
55981GARNISH, DEFROSTER NOZZLE, NO.1
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
SU00300008
SU00300980
SU00301974
SU00302866
SU00302915
SU00302931
31 parts on this diagram · 3 diagrams in section
