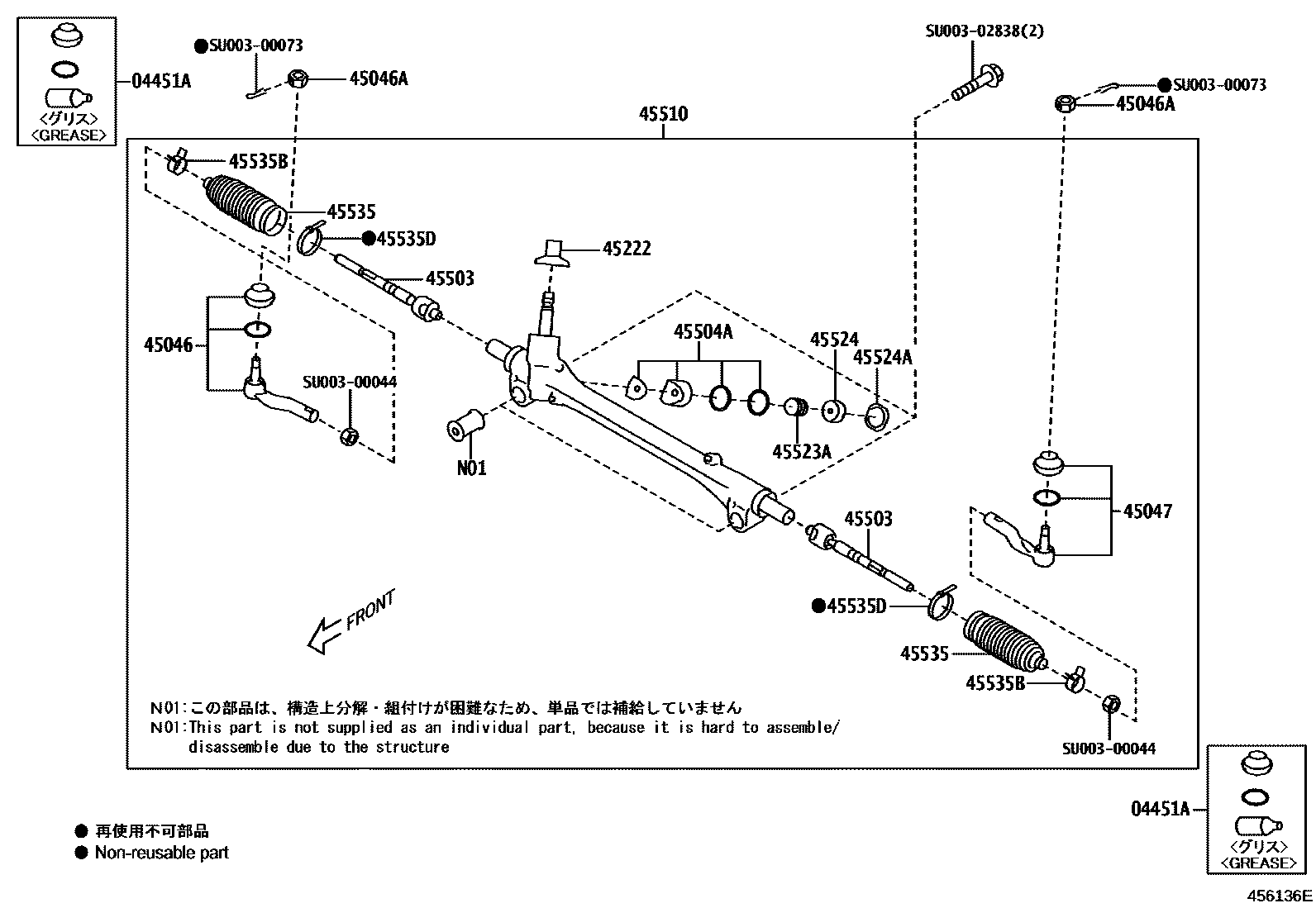

Toyota 86 — FRONT STEERING GEAR & LINK
04451AREPAIR KIT, TIE ROD END
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45222COVER, STEERING GEAR DUST
45503END SUB-ASSY, STEERING RACK
45504AGUIDE SUB-ASSY, RACK
45510GEAR ASSY, STEERING
45523ASPRING(FOR STEERING GEAR RACK GUIDE)
45524CAP, STEERING RACK GUIDE SPRING
45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
SU00300044
SU00300073
SU00302838
17 parts on this diagram · 1 diagram in section
