Toyota 86 — FRONT BUMPER & BUMPER STAY
0901
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH
52119ACOVER, FRONT BUMPER
GALAXY BLUE SILICA,E8H
DARK GRAY METALLIC,61K
ORANGE METALLIC,H8R
LIGHTNING RED,C7P
STERLING SILVER M,D6S
CRYSTAL BLACK SILICA,D4S
SATIN WHITE PEARL,37J
CRYSTAL WHITE PEARL,K1X
52123BPLATE, FRONT BUMPER REINFORCEMENT, RH
52124BPLATE, FRONT BUMPER REINFORCEMENT, LH
52127CCOVER, FRONT BUMPER HOLE
GALAXY BLUE SILICA,E8H
DARK GRAY METALLIC,61K
ORANGE METALLIC,H8R
LIGHTNING RED,C7P
STERLING SILVER M,D6S
CRYSTAL BLACK SILICA,D4S
SATIN WHITE PEARL,37J
BLACK
ICE SILVER METALLIC,G1U
CRYSTAL WHITE PEARL,K1X
SUNRISE YELLOW,C2Z
LAPIS BLUE PEARL,K3X
PURE RED,M7Y
52127DCOVER, FRONT BUMPER HOLE, RH
52128CCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52141BSTAY, FRONT BUMPER
52161CPIECE, FRONT BUMPER
52161TPIECE, FRONT BUMPER
52521BRETAINER, FRONT BUMPER, UPPER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
53112EGRILLE, RADIATOR, LOWER NO.1
53293BRACKET, FRONT BUMPER STAY
53395ESEAL, HOOD TO FRONT END PANEL
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
SU00300063
SU00301514
SU00301535
SU00302786
SU00302793
SU00302799
SU00302826
SU00302940
SU00302985
SU00303352
SU00304133
SU00305721

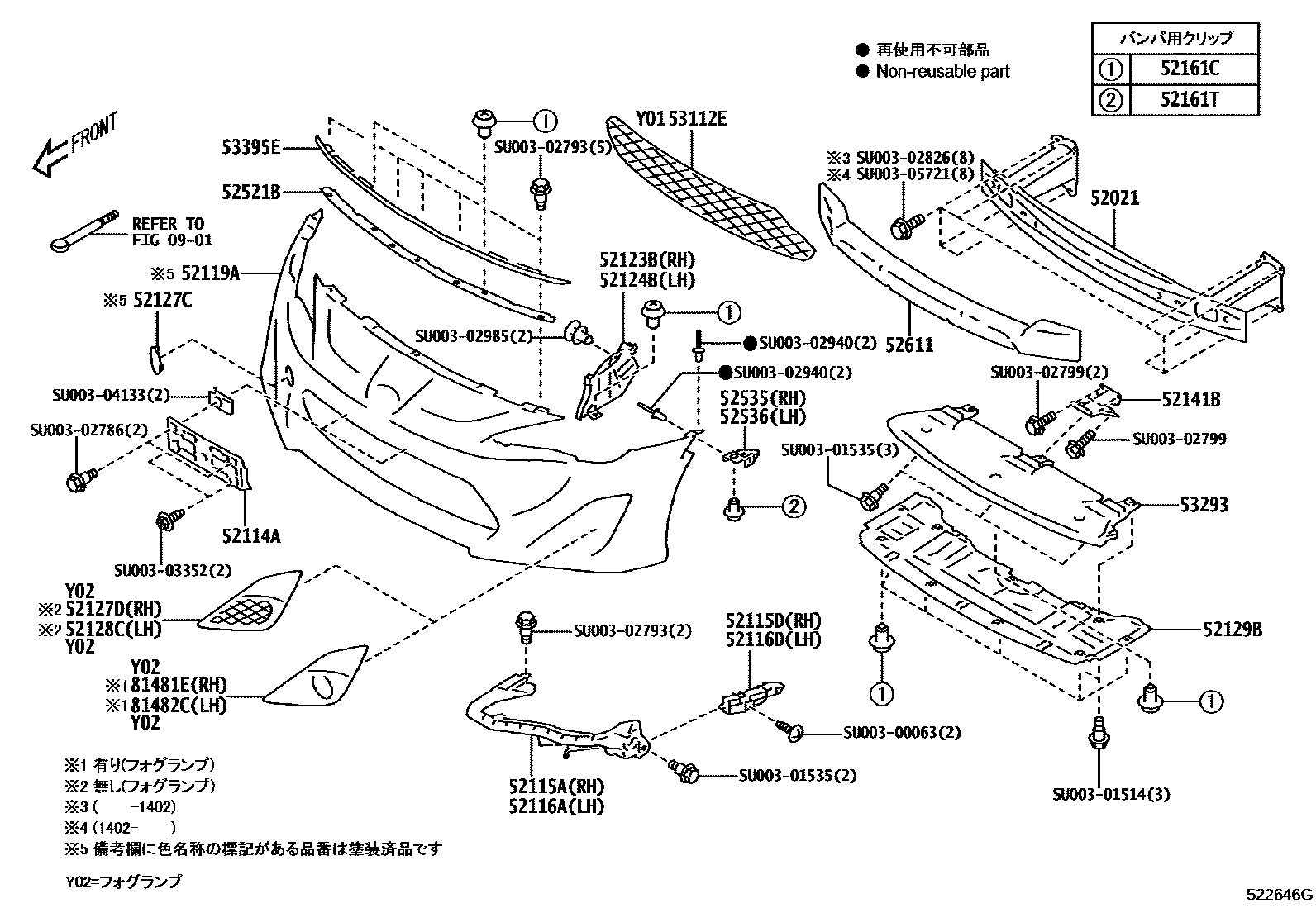

38 parts on this diagram · 3 diagrams in section
