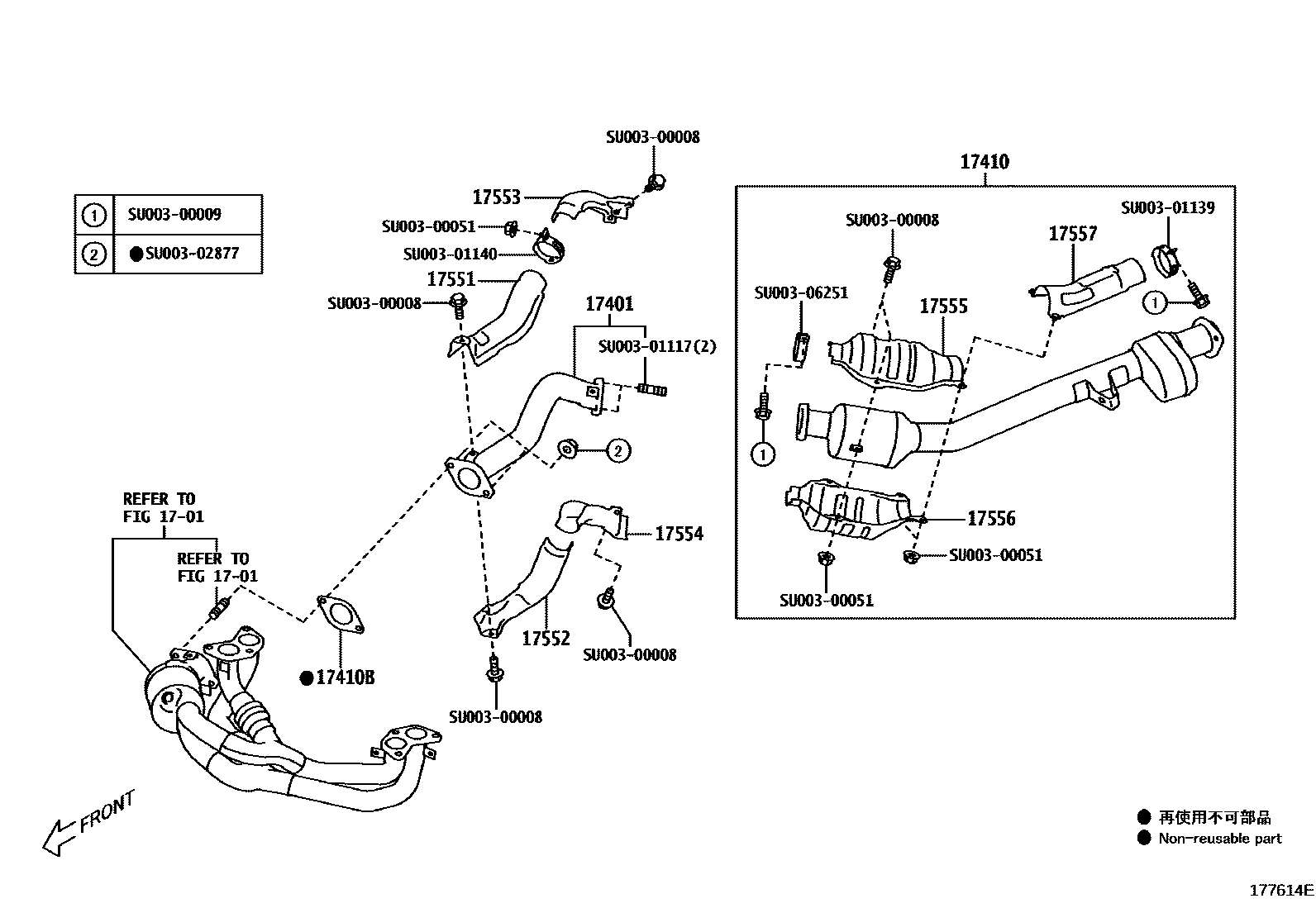

Toyota 86 — EXHAUST PIPE
1701
17401PIPE SUB-ASSY, EXHAUST, FRONT
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
17552INSULATOR, EXHAUST PIPE HEAT, NO.2
17553INSULATOR, EXHAUST PIPE HEAT, NO.3
17554INSULATOR, EXHAUST PIPE HEAT, FRONT
17555INSULATOR, EXHAUST PIPE HEAT, NO.5
17556INSULATOR, EXHAUST PIPE HEAT, NO.6
17557INSULATOR, EXHAUST PIPE HEAT, NO.7
SU00300008
SU00300009
SU00300051
SU00301117
SU00301139
SU00301140
SU00302877
SU00306251
19 parts on this diagram · 2 diagrams in section
