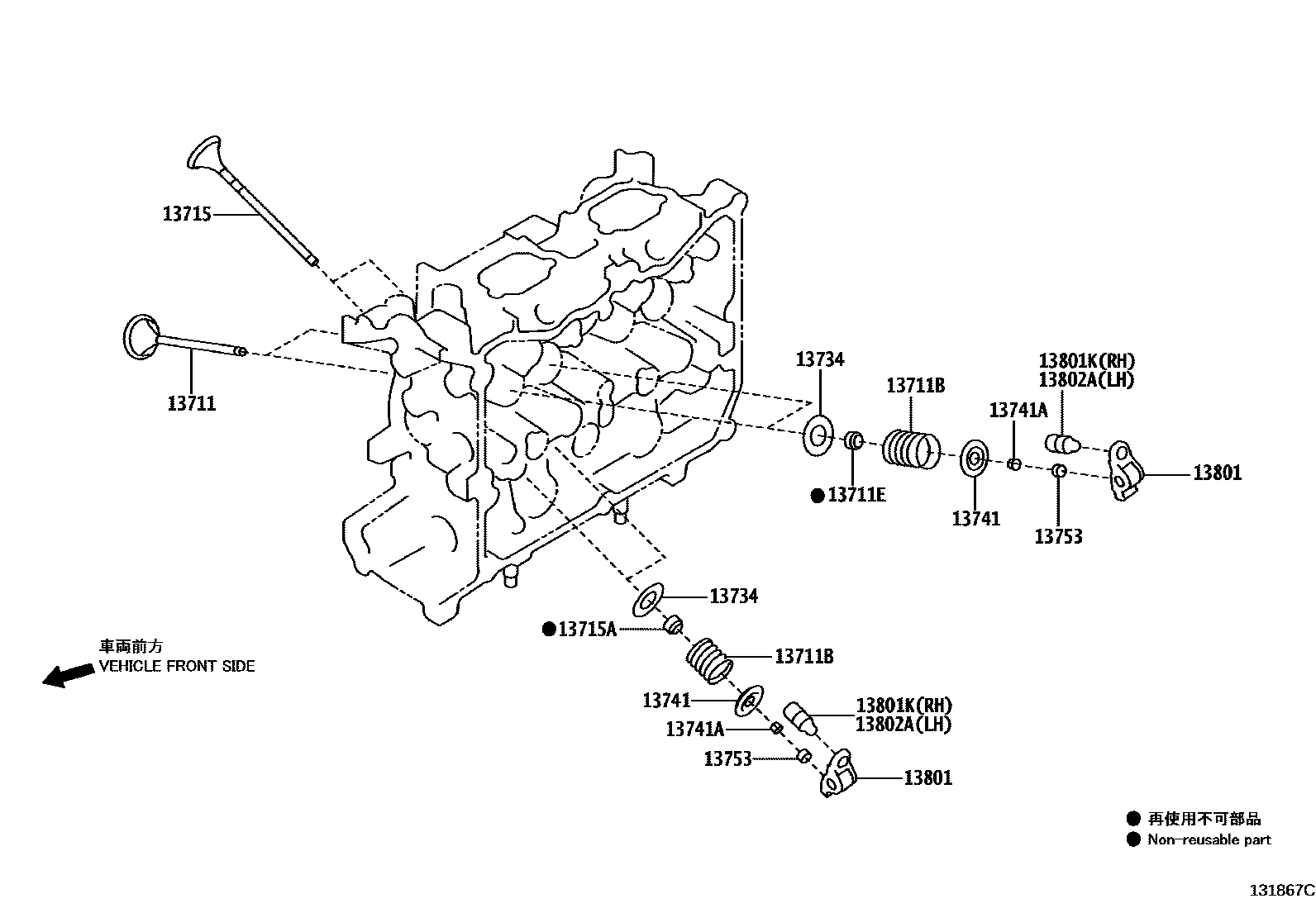

Toyota 86 — CAMSHAFT & VALVE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801KPIVOT, ROCKER ARM RH
13802APIVOT, ROCKER ARM LH
12 parts on this diagram · 3 diagrams in section
