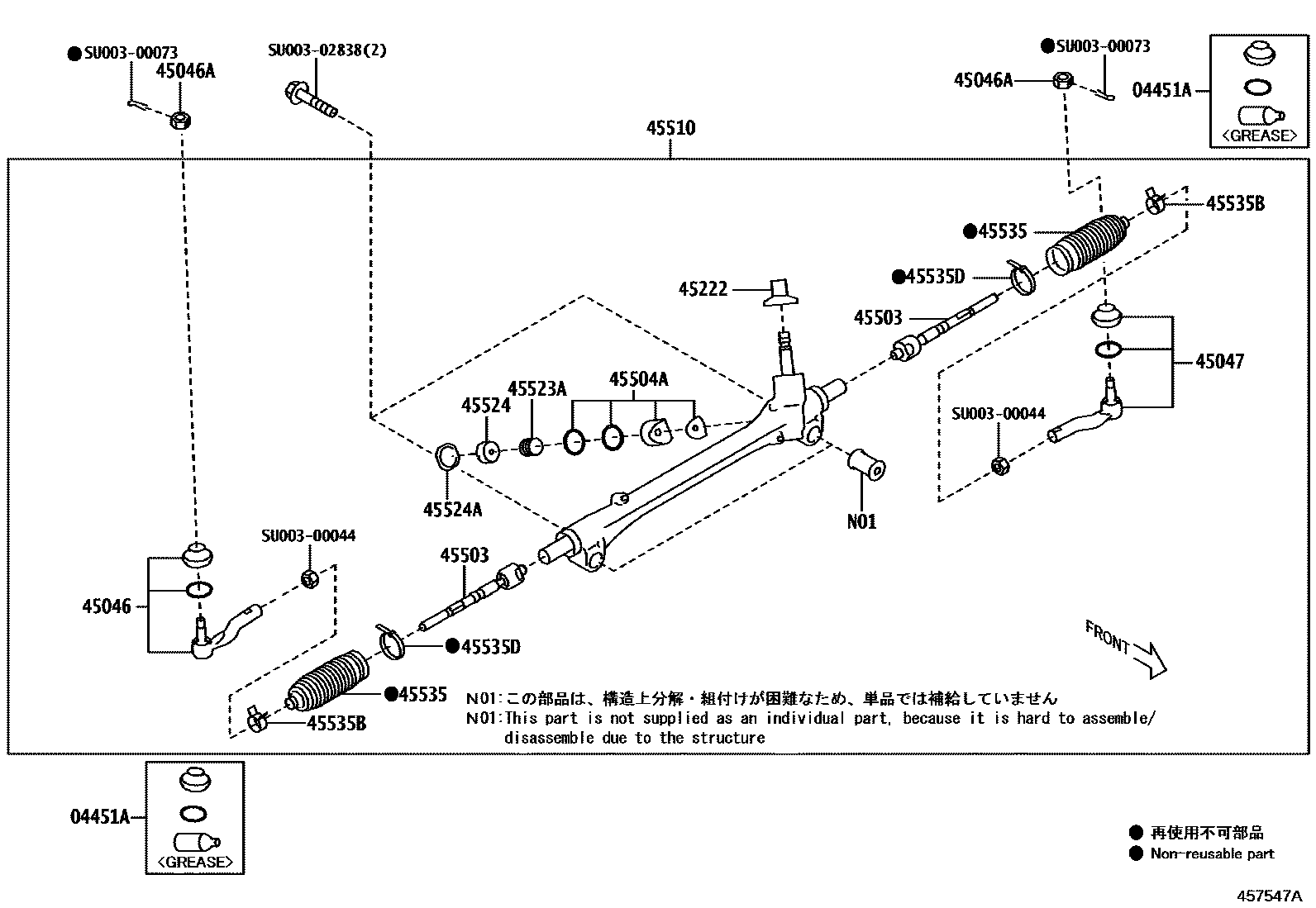

Toyota 86 — FRONT STEERING GEAR & LINK

0001 1 0002 1

04451AREPAIR KIT, TIE ROD END

mainSU00304597iZN6201608-202104

45046END SUB-ASSY, TIE ROD, RH

mainSU00300833iZN6201608-202104

45046ANUT, CASTLE(FOR TIE ROD END)

mainSU00300047iZN6201608-202104

45047END SUB-ASSY, TIE ROD, LH

mainSU00300834iZN6201608-202104

45222COVER, STEERING GEAR DUST

mainSU00300830iZN6201608-202104

45503END SUB-ASSY, STEERING RACK

mainSU00300832iZN6201608-202104

45504AGUIDE SUB-ASSY, RACK

mainSU00300828iZN6201608-202104

45510GEAR ASSY, STEERING

mainSU00300840iZN6..RHD201608-202104

mainSU00300841iZN6..LHD..G201608-202104

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

mainSU00300827iZN6201608-202104

45524CAP, STEERING RACK GUIDE SPRING

mainSU00300829iZN6201608-202104

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

mainSU00300839iZN6..G201608-202104

45535BOOT, STEERING RACK, NO.1

mainSU00300831iZN6201608-202104

45535BCLIP(FOR STEERING RACK BOOT)

mainSU00300825iZN6201608-202104

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

mainSU00300826iZN6201608-202104

SU00300044

mainSU003-00044¥40

SU00300073

mainSU003-00073¥10

SU00302838

mainSU003-02838¥520

17 parts on this diagram · 2 diagrams in section
