Toyota 86 — FRONT DOOR PANEL & GLASS

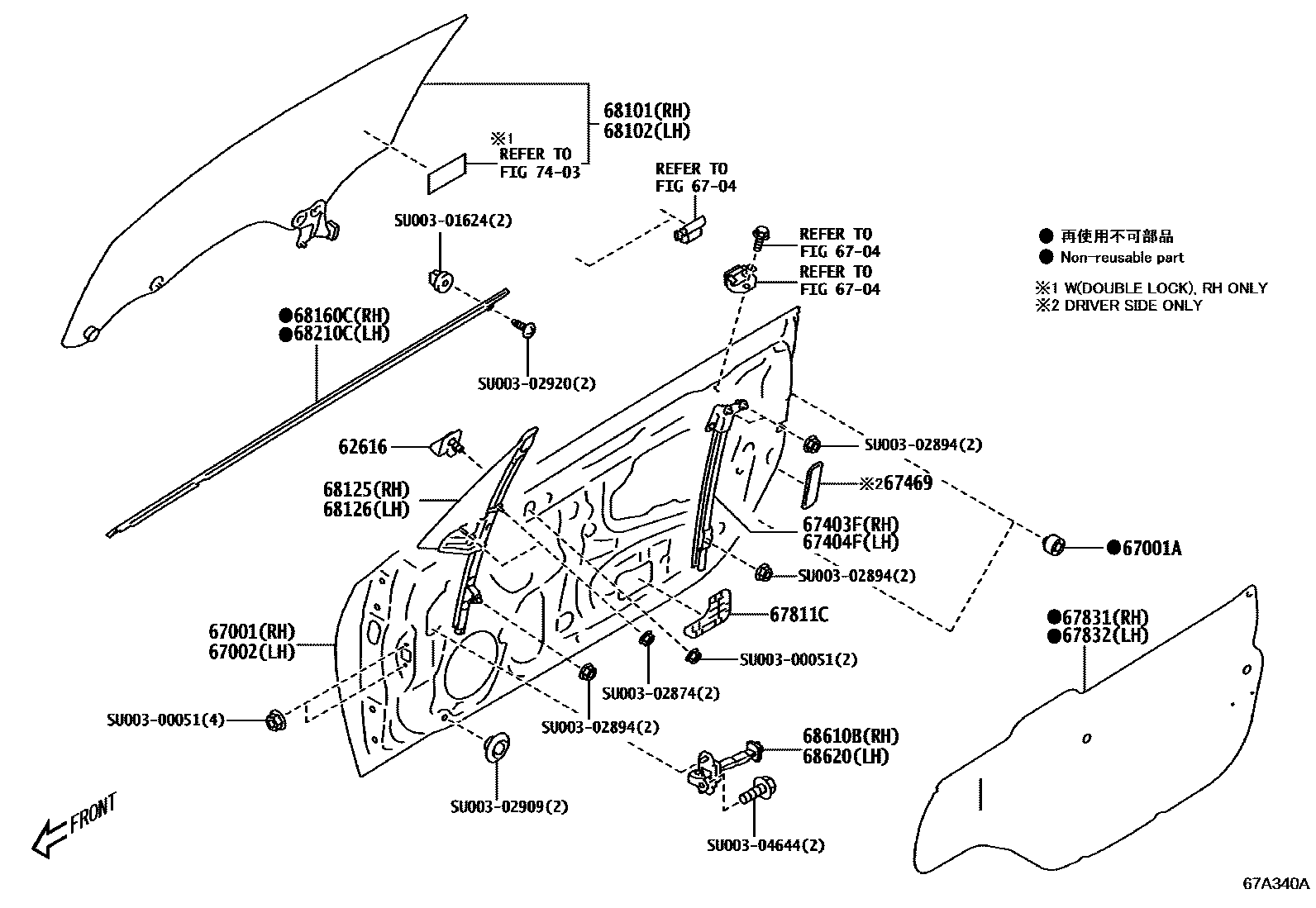

Parts diagram
62616STOPPER, FRONT DOOR SASH
mainSU00304118i201710-201803
mainSU00304118i201608-201709
mainSU00304118i201903-202104
mainSU00304118i201804-201904
67001PANEL SUB-ASSY, FRONT DOOR, RH
mainSU00301558i201710-201803
mainSU00301558i201608-201709
mainSU00301558i201903-202104
mainSU00301558i201804-201904
67001ACUSHION, FRONT DOOR PANEL
mainSU00304136i201710-201803
mainSU00304136i201608-201709
mainSU00304136i201903-202104
mainSU00304136i201804-201904
67002PANEL SUB-ASSY, FRONT DOOR, LH
mainSU00301559i201710-201803
mainSU00301559i201608-201709
mainSU00301559i201903-202104
mainSU00301559i201804-201904
6704
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
mainSU00301608i201804-201904
mainSU00301608i201608-201709
mainSU00301608i201903-202104
mainSU00301608i201710-201803
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
mainSU00301609i201804-201904
mainSU00301609i201608-201709
mainSU00301609i201903-202104
mainSU00301609i201710-201803
67469PROTECTOR, FRONT DOOR GUIDE
mainSU00301625i201804-201904
mainSU00301625i201608-201709
mainSU00301625i201903-202104
mainSU00301625i201710-201803
67811CCOVER, FRONT DOOR HOLE
mainSU00301604i201804-201904
RH
mainSU00301604i201608-201709
RH
mainSU00301604i201710-201803
RH
mainSU00301604i201903-202104
RH
mainSU00301605i201608-201709
LH
mainSU00301605i201903-202104
LH
mainSU00301605i201804-201904
LH
mainSU00301605i201710-201803
LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
mainSU00301610i201710-201803
mainSU00301610i201608-201709
mainSU00301610i201903-202104
mainSU00301610i201804-201904
67832COVER, FRONT DOOR SERVICE HOLE, LH
mainSU00301611i201710-201803
mainSU00301611i201608-201709
mainSU00301611i201903-202104
mainSU00301611i201804-201904
68101GLASS SUB-ASSY, FRONT DOOR, RH
mainSU003G0024i201804-201904
DESTINATION CODE=K2
mainSU003G0024i201804-201904
DESTINATION CODE=EN
mainSU003G0024i201804-201904
DESTINATION CODE=KC
mainSU003G0024i201804-201904
DESTINATION CODE=KA
mainSU003G0024i201804-201904
DESTINATION CODE=KV
mainSU003G0024i201804-201904
DESTINATION CODE=KY
mainSU003G0024i201804-201904
DESTINATION CODE=K8
mainSU003G0024i201710-201803
DESTINATION CODE=KV
mainSU003G0024i201710-201803
DESTINATION CODE=KY
mainSU003G0024i201710-201803
DESTINATION CODE=K8
mainSU003G0024i201710-201803
DESTINATION CODE=K2
mainSU003G0024i201710-201803
DESTINATION CODE=EN
mainSU003G0024i201710-201803
DESTINATION CODE=KC
mainSU003G0024i201710-201803
DESTINATION CODE=KA
mainSU003G0024i201608-201709
DESTINATION CODE=KY
mainSU003G0024i201608-201709
DESTINATION CODE=K8
mainSU003G0024i201608-201709
DESTINATION CODE=EN
mainSU003G0024i201608-201709
DESTINATION CODE=KE
mainSU003G0024i201608-201709
DESTINATION CODE=KC
mainSU003G0024i201608-201709
DESTINATION CODE=KA
mainSU003G0024i201903-202104
DESTINATION CODE=KV
mainSU003G0024i201903-202104
DESTINATION CODE=KY
mainSU003G0024i201903-202104
DESTINATION CODE=K8
mainSU003G0024i201903-202104
DESTINATION CODE=K2
mainSU003G0024i201903-202104
DESTINATION CODE=KC
mainSU003G0024i201903-202104
DESTINATION CODE=KA
68102GLASS SUB-ASSY, FRONT DOOR, LH
mainSU003G0025i201710-201803
mainSU003G0025i201804-201904
mainSU003G0025i201903-202104
mainSU003G0025i201608-201709
68125GLASS, FRONT DOOR FIX WINDOW, RH
mainSU003G0022i201710-201803
mainSU003G0022i201804-201904
mainSU003G0022i201903-202104
mainSU003G0022i201608-201709
68126GLASS, FRONT DOOR FIX WINDOW, LH
mainSU003G0023i201710-201803
mainSU003G0023i201804-201904
mainSU003G0023i201903-202104
mainSU003G0023i201608-201709
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
mainSU00305659i201710-201803
subSU003-08595¥6,200
mainSU00305659i201804-201904
subSU003-08595¥6,200
mainSU00305659i201903-202005
subSU003-08595¥6,200
mainSU00305659i201608-201709
subSU003-08595¥6,200
mainSU00308595i202005-202104
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
mainSU00305660i201710-201803
subSU003-08596¥6,200
mainSU00305660i201804-201904
subSU003-08596¥6,200
mainSU00305660i201903-202005
subSU003-08596¥6,200
mainSU00305660i201608-201709
subSU003-08596¥6,200
mainSU00308596i202005-202104
68610BCHECK ASSY, FRONT DOOR, RH
mainSU00301567i201608-201610
subSU003-07368¥3,380
mainSU00307368i201804-201904
mainSU00307368i201610-201709
mainSU00307368i201710-201803
mainSU00307368i201903-202104
68620CHECK ASSY, FRONT DOOR, LH
mainSU00301567i201608-201610
subSU003-07368¥3,380
mainSU00307368i201610-201709
mainSU00307368i201710-201803
mainSU00307368i201804-201904
mainSU00307368i201903-202104
7403
SU00300051
mainSU003-00051¥20
SU00301624
mainSU003-01624¥60
SU00302874
mainSU003-02874¥90
SU00302894
mainSU003-02894¥40
SU00302909
mainSU003-02909¥30
SU00302920
mainSU003-02920¥30
SU00304644
mainSU003-04644¥70

27 parts on this diagram · 3 diagrams in section
