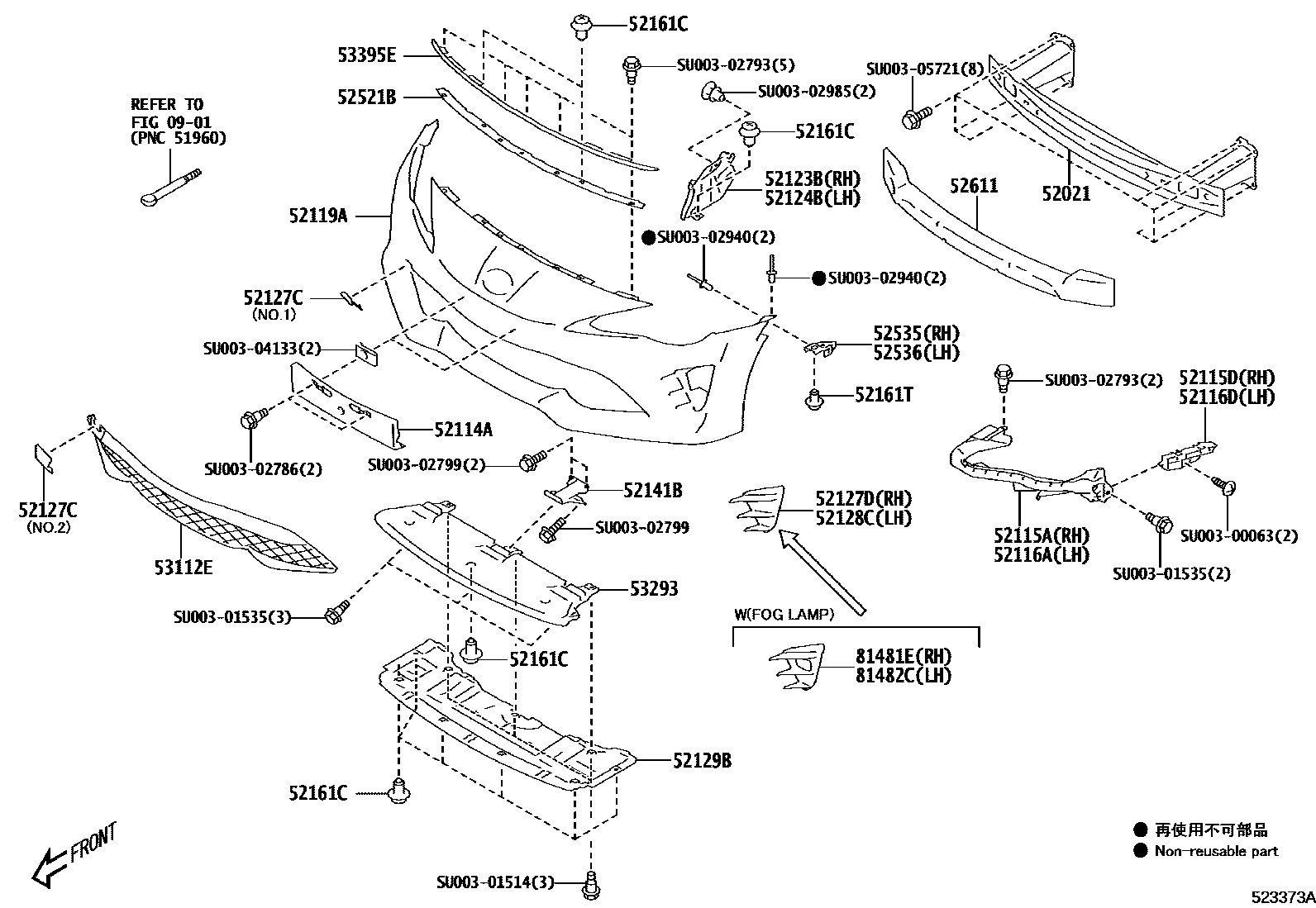

Toyota 86 — FRONT BUMPER & BUMPER STAY
0901
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
DESTINATION CODE=KE
DESTINATION CODE=EN
DESTINATION CODE=K8
DESTINATION CODE=KY
DESTINATION CODE=EK
DESTINATION CODE=ER
DESTINATION CODE=KC
DESTINATION CODE=K2
DESTINATION CODE=KV
52115ASUPPORT, FRONT BUMPER SIDE, RH
52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
52123BPLATE, FRONT BUMPER REINFORCEMENT, RH
52124BPLATE, FRONT BUMPER REINFORCEMENT, LH
52127CCOVER, FRONT BUMPER HOLE
NO.2:REFER ILLUST.
MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y,NBB,NO.1:REFER ILLUST.
MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y,NO.1:REFER ILLUST.
MATERIAL COLOR,61K,D4S,G1U,K1X,K3X,M7Y,PBA,NO.1:REFER ILLUST.
MATERIAL COLOR,61K,D4S,DAR,G1U,K1X,K3X,M7Y,NO.1:REFER ILLUST.
MATERIAL COLOR,D4S,DAR,G1U,K1X,K3X,M7Y,P8Y,NO.1:REFER ILLUST.
52127DCOVER, FRONT BUMPER HOLE, RH
52128CCOVER, FRONT BUMPER HOLE, LH
52129BCOVER, FRONT BUMPER, LOWER
52141BSTAY, FRONT BUMPER
52161CPIECE, FRONT BUMPER
52161TPIECE, FRONT BUMPER
52521BRETAINER, FRONT BUMPER, UPPER
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
53293BRACKET, FRONT BUMPER STAY
53395ESEAL, HOOD TO FRONT END PANEL
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
SU00300063
SU00301514
SU00301535
SU00302786
SU00302793
SU00302799
SU00302940
SU00302985
SU00304133
SU00305721
36 parts on this diagram · 1 diagram in section
