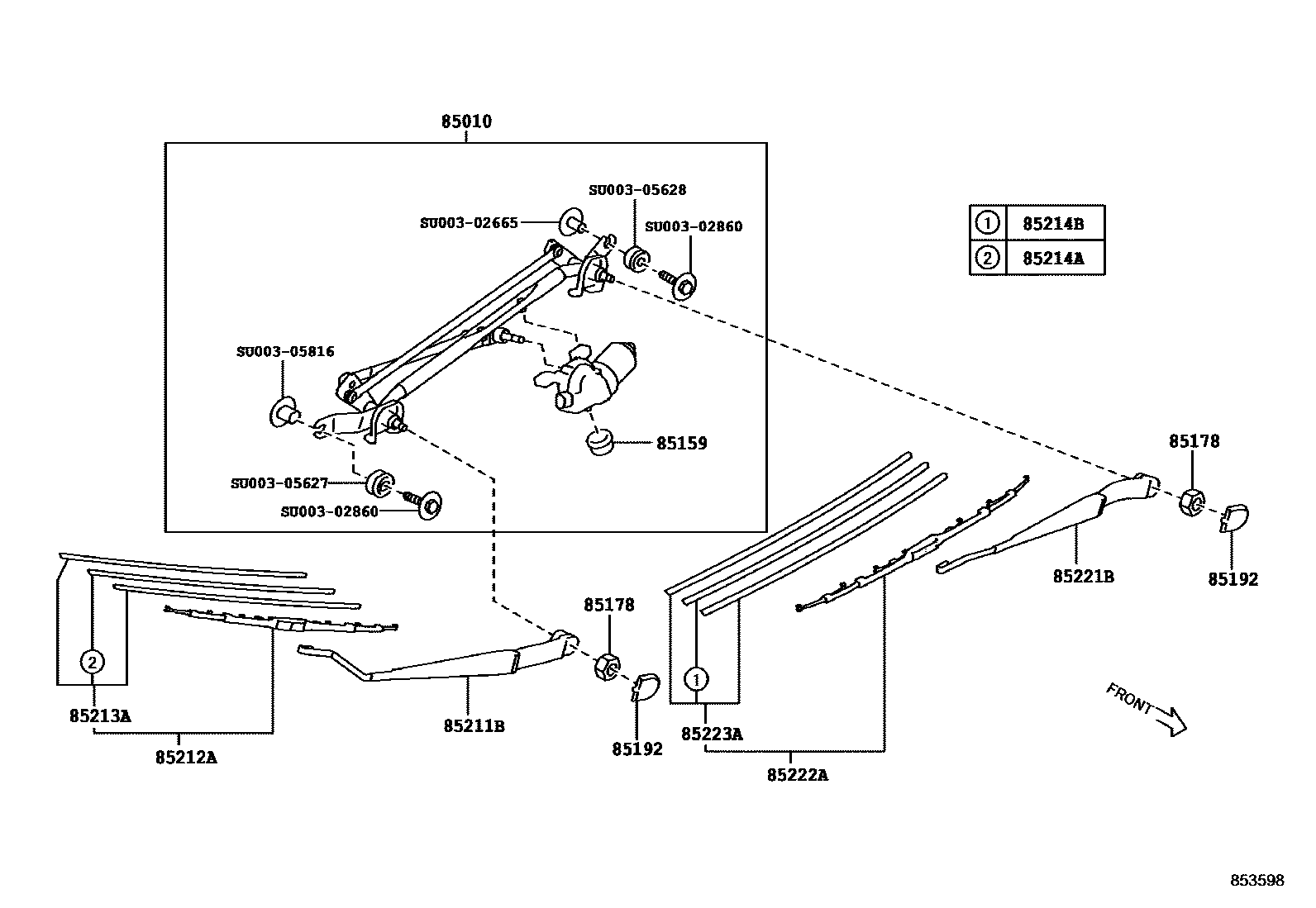

Toyota 86 — WINDSHIELD WIPER
85010MOTOR & LINK ASSY, FR WIPER
85159CUSHION, WINDSHIELD WIPER MOTOR
85178NUT (FOR FRONT WIPER ARM SETTING)
85192COVER, WINDSHIELD WIPER ARM
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85213ARUBBER, WIPER BLADE, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85223ARUBBER, FRONT WIPER BLADE, LH
SU00302665
SU00302860
SU00305627
SU00305628
mainSU003-05628
SU00305816
17 parts on this diagram · 2 diagrams in section
