Toyota 86 — SWITCH & RELAY & COMPUTER

0001 1ENGINE(KA SPEC) 0002 1ENGINE(EXCEPT KA SPEC) 0003 1TRANSMISSION 0004 1ENGINE ROOM RELAY BLOCK 1/2 0005 1ENGINE ROOM RELAY BLOCK 2/2 0006 1ENGINE ROOM RELAY BLOCK 2/2 0007 1ENGINE ROOM & COWL 0008 1ENGINE ROOM & COWL 0009 1COWL 0010 1COWL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1BRAKE & CLUTCH PEDAL 0014 1BRAKE & CLUTCH PEDAL 0015 1STEERING 1/2 0016 1STEERING 2/2 0017 1STEERING 2/2 0018 1CONSOLE & DOOR 0019 1CONSOLE & DOOR 0020 1FLOOR & LUGGAGE

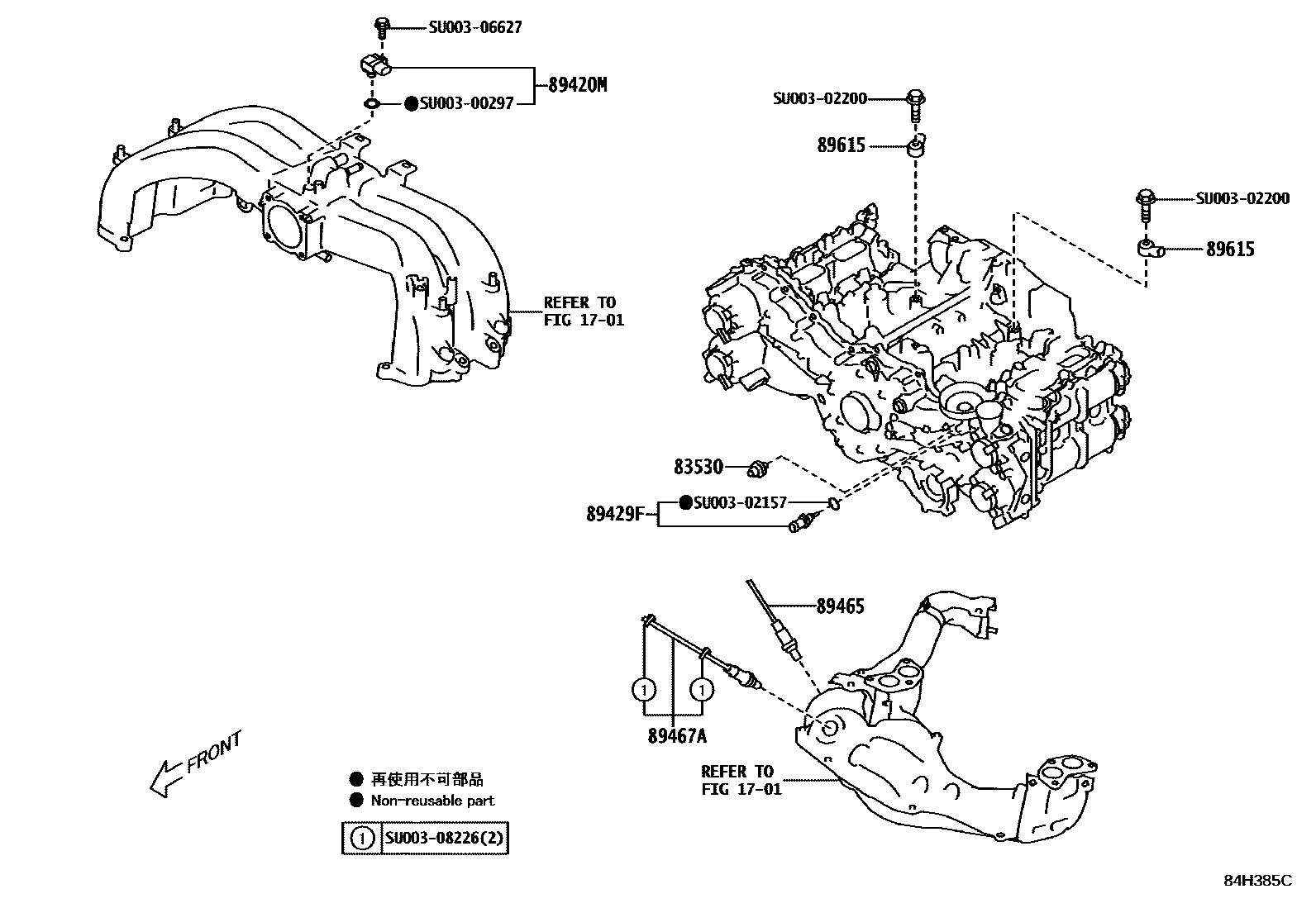

1701

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

mainSU00306104iZN6201710-201803

mainSU00306104iZN6..H201903-202104

mainSU00306104iZN6201608-201709

mainSU00306104iZN6..G201804-201904

89420MSENSOR ASSY, AIR PRESSURE

mainSU00300419iZN6201608-201709

mainSU00300419iZN6201710-201803

mainSU00300419iZN6..G201804-201904

mainSU00300419iZN6..H201903-202104

89429FSENSOR, TEMPERATURE

mainSU00304714iZN6201608-201709

mainSU00304714iZN6201710-201803

mainSU00304714iZN6..G201804-201904

mainSU00304714iZN6..H201903-202104

89465SENSOR, OXYGEN

mainSU00300428iZN6..G201804-201904

mainSU00300428iZN6201608-201709

mainSU00300428iZN6201710-201803

mainSU00300428iZN6..H201903-202104

89467ASENSOR, WIDE RANGE AIR FUEL RATIO

mainSU00300425iZN6201710-201803

mainSU00300425iZN6201608-201709

mainSU00300425iZN6..G201804-201904

mainSU00300425iZN6..H201903-202104

89615SENSOR, KNOCK CONTROL

mainSU00306707iZN6..G201804-201904

mainSU00306707iZN6201608-201709

mainSU00306707iZN6201710-201803

mainSU00306707iZN6..H201903-202104

SU00300297

mainSU003-00297¥170

SU00302157

mainSU003-02157¥70

SU00302200

mainSU003-02200¥90

SU00306627

mainSU003-06627¥60

SU00308226

mainSU003-08226¥130

12 parts on this diagram · 20 diagrams in section
