Toyota 86 — STARTER

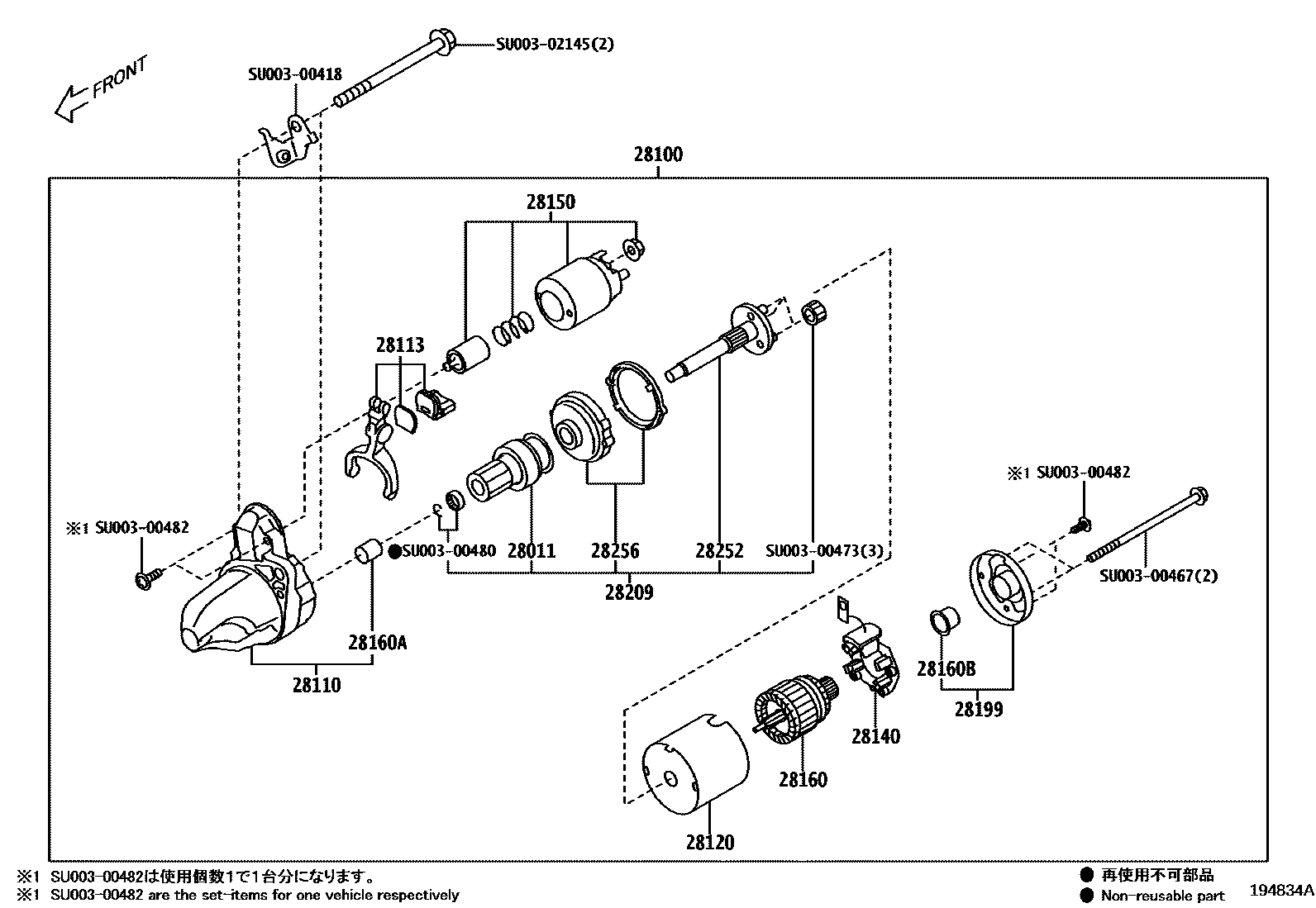

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

mainSU00300456i201608-201709

mainSU00300456i201710-201803

mainSU00300456i201804-201904

mainSU00300456i201903-202104

28100STARTER ASSY

mainSU00300450i201903-202104

12V 1.6KW

mainSU00300450i201608-201709

12V 1.6KW

mainSU00300450i201710-201803

12V 1.6KW

mainSU00300450i201804-201904

12V 1.6KW

mainSU00300451i201804-201904

12V 1.0KW

mainSU00300451i201608-201709

12V 1.0KW

mainSU00300451i201710-201803

12V 1.0KW

mainSU00300451i201903-202104

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

mainSU00300457i201804-201904

mainSU00300457i201608-201709

mainSU00300457i201710-201803

mainSU00300457i201903-202104

28113LEVER, STARTER PINION DRIVE

mainSU00300460i201608-201709

mainSU00300460i201710-201803

mainSU00300460i201804-201904

mainSU00300460i201903-202104

28120YOKE ASSY, STARTER

mainSU00300452i201710-201803

mainSU00300452i201608-201709

mainSU00300452i201804-201904

mainSU00300452i201903-202104

mainSU00300453i201804-201904

mainSU00300453i201710-201803

mainSU00300453i201608-201709

mainSU00300453i201903-202104

28140HOLDER ASSY, STARTER BRUSH

mainSU00300478i201608-201709

mainSU00300478i201710-201803

mainSU00300478i201804-201904

mainSU00300478i201903-202104

28150SWITCH ASSY, MAGNET STARTER

mainSU00300471i201608-201709

mainSU00300471i201710-201803

mainSU00300471i201804-201904

mainSU00300471i201903-202104

mainSU00300472i201903-202104

mainSU00300472i201608-201709

mainSU00300472i201804-201904

mainSU00300472i201710-201803

28160ARMATURE ASSY, STARTER

mainSU00300454i201608-201709

mainSU00300454i201710-201803

mainSU00300454i201804-201904

mainSU00300454i201903-202104

mainSU00300455i201710-201803

mainSU00300455i201903-201906

mainSU00300455i201608-201709

mainSU00300455i201804-201904

mainSU00308275i201907-202104

28160ABEARING, STARTER ARMATURE

mainSU00300458i201903-202104

mainSU00300458i201608-201709

mainSU00300458i201710-201803

mainSU00300458i201804-201904

28160BBEARING, STARTER ARMATURE, NO.2

mainSU00300459i201608-201709

mainSU00300459i201710-201803

mainSU00300459i201804-201904

mainSU00300459i201903-202104

28199COVER, STARTER

mainSU00300465i201608-201709

mainSU00300465i201804-201904

mainSU00300465i201710-201803

mainSU00300465i201903-202104

mainSU00300466i201903-202104

mainSU00300466i201608-201709

mainSU00300466i201710-201803

mainSU00300466i201804-201904

28209SHAFT SUB-ASSY, STARTER

mainSU00300461i201608-201709

mainSU00300461i201710-201803

mainSU00300461i201804-201904

mainSU00300461i201903-202104

28252GEAR, STARTER IDLE

mainSU00300462i201608-201709

mainSU00300462i201710-201803

mainSU00300462i201804-201904

mainSU00300462i201903-202104

28256GEAR, STARTER INTERNAL

mainSU00300464i201608-201709

mainSU00300464i201804-201904

mainSU00300464i201710-201803

mainSU00300464i201903-202104

SU00300418

mainSU003-00418¥370

SU00300467

mainSU003-00467¥220

SU00300473

mainSU003-00473¥980

SU00300480

mainSU003-00480¥340

SU00300482

mainSU003-00482¥120

SU00302145

mainSU003-02145¥240

20 parts on this diagram · 2 diagrams in section
