Toyota 86 — HEATING & AIR CONDITIONING - COOLER UNIT

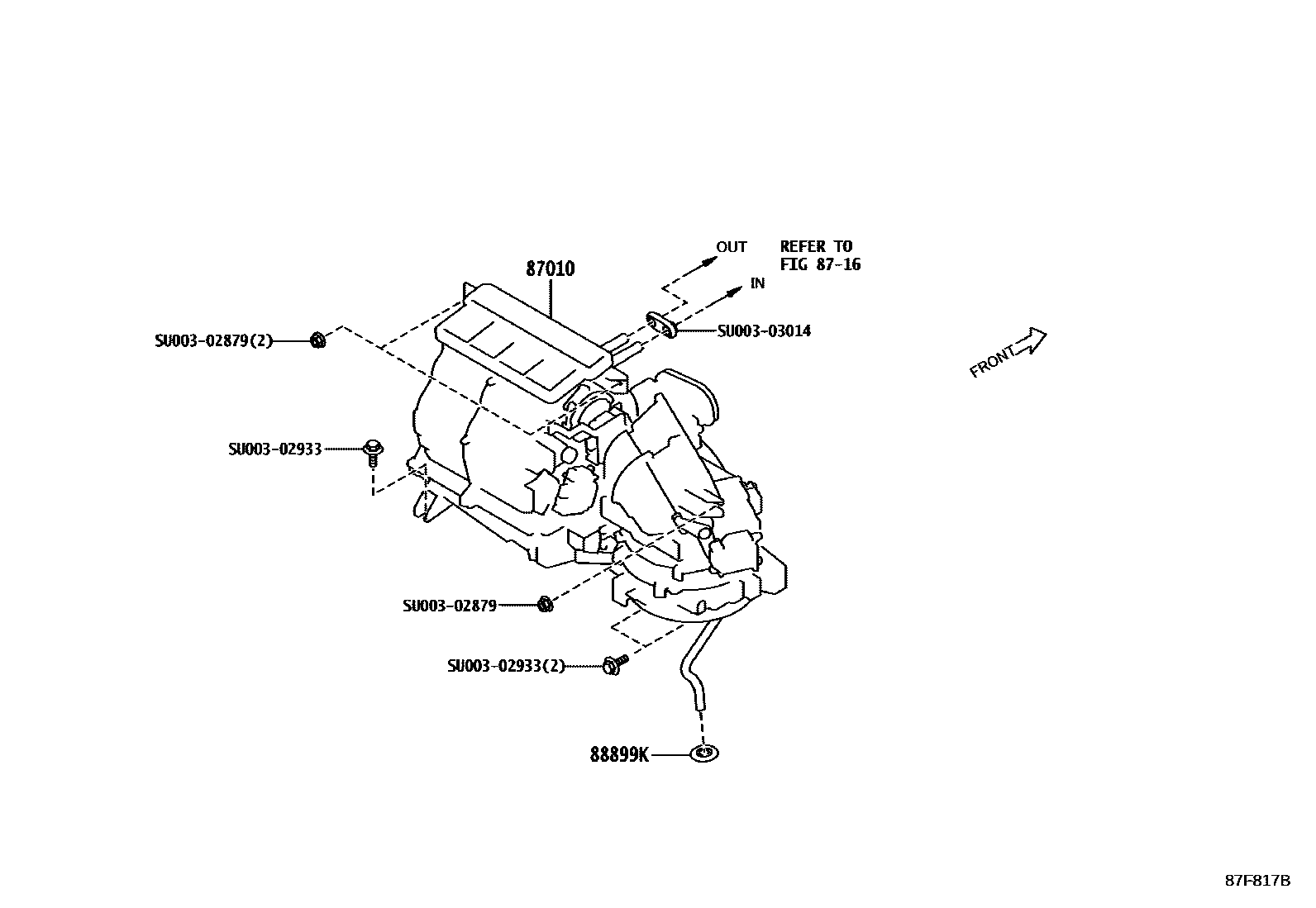

Parts diagram
87010UNIT ASSY, AIR CONDITIONER
mainSU00301999i201608-201707
DESTINATION CODE=E6
subSU003-07633¥102,000
mainSU00301999i201608-201707
DESTINATION CODE=KF
subSU003-07633¥102,000
mainSU00301999i201608-201707
DESTINATION CODE=EB
subSU003-07633¥102,000
mainSU00301999i201608-201707
DESTINATION CODE=E9
subSU003-07633¥102,000
mainSU00301999i201608-201707
DESTINATION CODE=KR
subSU003-07633¥102,000
mainSU00301999i201608-201707
DESTINATION CODE=EA
subSU003-07633¥102,000
mainSU00301999i201608-201707
DESTINATION CODE=E3
subSU003-07633¥102,000
mainSU00301999i201608-201707
DESTINATION CODE=KS
subSU003-07633¥102,000
mainSU00301999i201608-201707
DESTINATION CODE=K4
subSU003-07633¥102,000
mainSU00301999i201608-201707
DESTINATION CODE=E1
subSU003-07633¥102,000
mainSU00302001i201608-201707
DESTINATION CODE=K4
subSU003-07635¥102,000
mainSU00302001i201608-201707
DESTINATION CODE=EA
subSU003-07635¥102,000
mainSU00302001i201608-201707
DESTINATION CODE=E3
subSU003-07635¥102,000
mainSU00302001i201608-201707
DESTINATION CODE=KS
subSU003-07635¥102,000
mainSU00302001i201608-201707
DESTINATION CODE=E1
subSU003-07635¥102,000
mainSU00302001i201608-201707
DESTINATION CODE=E6
subSU003-07635¥102,000
mainSU00302001i201608-201707
DESTINATION CODE=KF
subSU003-07635¥102,000
mainSU00302001i201608-201707
DESTINATION CODE=EB
subSU003-07635¥102,000
mainSU00302001i201608-201707
DESTINATION CODE=E9
subSU003-07635¥102,000
mainSU00302001i201608-201707
DESTINATION CODE=KR
subSU003-07635¥102,000
mainSU00302002i201608-201707
DESTINATION CODE=EP
subSU003-07636¥102,000
mainSU00302002i201608-201707
DESTINATION CODE=E2
subSU003-07636¥102,000
mainSU00302002i201608-201707
DESTINATION CODE=EC
subSU003-07636¥102,000
mainSU00307633i201707-201709
DESTINATION CODE=E9
mainSU00307633i201707-201709
DESTINATION CODE=EA
mainSU00307633i201707-201709
DESTINATION CODE=E3
mainSU00307633i201707-201709
DESTINATION CODE=KS
mainSU00307633i201707-201709
DESTINATION CODE=K4
mainSU00307633i201707-201709
DESTINATION CODE=E1
mainSU00307633i201707-201709
DESTINATION CODE=E6
mainSU00307633i201707-201709
DESTINATION CODE=KF
mainSU00307633i201707-201709
DESTINATION CODE=EB
mainSU00307633i201707-201709
DESTINATION CODE=KR
mainSU00307635i201903-202104
DESTINATION CODE=E6
mainSU00307635i201903-202104
DESTINATION CODE=KF
mainSU00307635i201903-202104
DESTINATION CODE=EB
mainSU00307635i201903-202104
DESTINATION CODE=KR
mainSU00307635i201903-202104
DESTINATION CODE=E3
mainSU00307635i201903-202104
DESTINATION CODE=KS
mainSU00307635i201903-202104
DESTINATION CODE=K4
mainSU00307635i201903-202104
DESTINATION CODE=E1
mainSU00307635i201707-201709
DESTINATION CODE=KS
mainSU00307635i201707-201709
DESTINATION CODE=K4
mainSU00307635i201707-201709
DESTINATION CODE=E1
mainSU00307635i201707-201709
DESTINATION CODE=E6
mainSU00307635i201707-201709
DESTINATION CODE=KF
mainSU00307635i201707-201709
DESTINATION CODE=EB
mainSU00307635i201707-201709
DESTINATION CODE=E9
mainSU00307635i201707-201709
DESTINATION CODE=KR
mainSU00307635i201707-201709
DESTINATION CODE=EA
mainSU00307635i201707-201709
DESTINATION CODE=E3
mainSU00307636i201707-201709
DESTINATION CODE=E2
mainSU00307636i201707-201709
DESTINATION CODE=EC
mainSU00307636i201707-201709
DESTINATION CODE=EP
8716
88899KPLATE, COVER
mainSU00302085i201710-201803
mainSU00302085i201903-202104
mainSU00302085i201804-201904
mainSU00302085i201608-201709
SU00302879
mainSU003-02879¥90
SU00302933
mainSU003-02933¥60
SU00303014
mainSU003-03014¥320

6 parts on this diagram · 8 diagrams in section
