Toyota 86 — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL(AUTO) 0002 1HEATER CONTROL(MANUAL) 0003 1AIR DUCT(UPPER) 0004 1AIR DUCT(UPPER) 0005 1AIR DUCT(LOWER) 0006 1AIR DUCT(LOWER) 0007 1SENSOR

5501

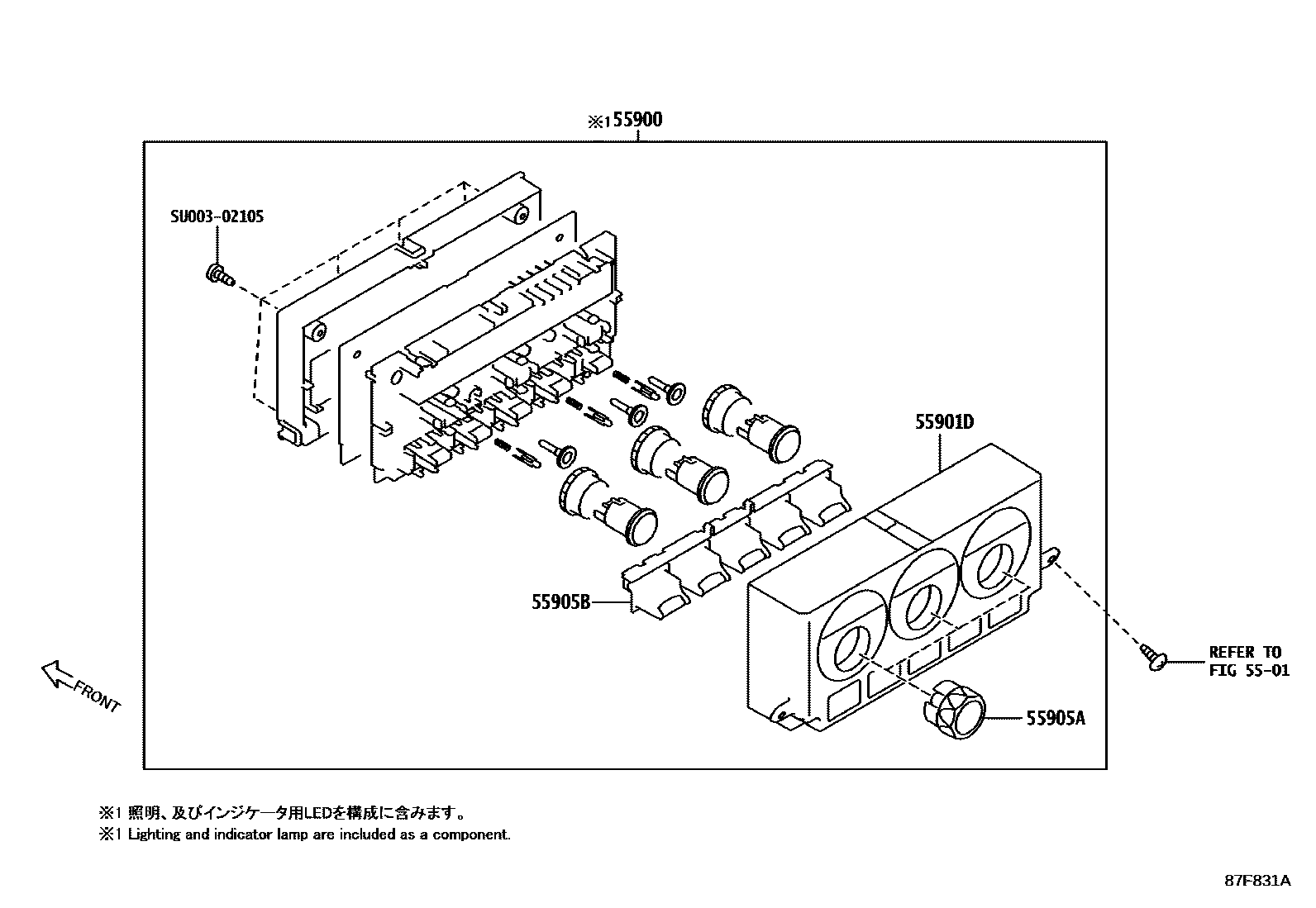

55900CONTROL ASSY, AIR CONDITIONER

mainSU00307223iZN6..RHD..(HI,SPE)..G201608-201904

mainSU00307224iZN6..LHD..(HI,SPE)201608-201904

mainSU00308108iZN6..RHD..(HI,SPE1)..H201903-202104

mainSU00308109iZN6..LHD..(HI,SPE1)..H201903-202104

55901BASE SUB-ASSY, HEATER CONTROL

mainSU00302093iZN6..BASE201608-202104

55901DCONTROL SUB-ASSY, HEATER, NO.1

mainSU00302096iZN6..HI,SPE201608-202104

55905AKNOB, HEATER CONTROL

mainSU00305870iZN6..HI,SPE201608-202104

55905BKNOB, HEATER CONTROL, NO.2

mainSU00305871iZN6..RHD..(HI,SPE)..G201608-202104

mainSU00305940iZN6..LHD..(HI,SPE)201608-202104

SU00302105

mainSU003-02105¥30

7 parts on this diagram · 7 diagrams in section
