Toyota 86 — COWL PANEL & WINDSHIELD GLASS

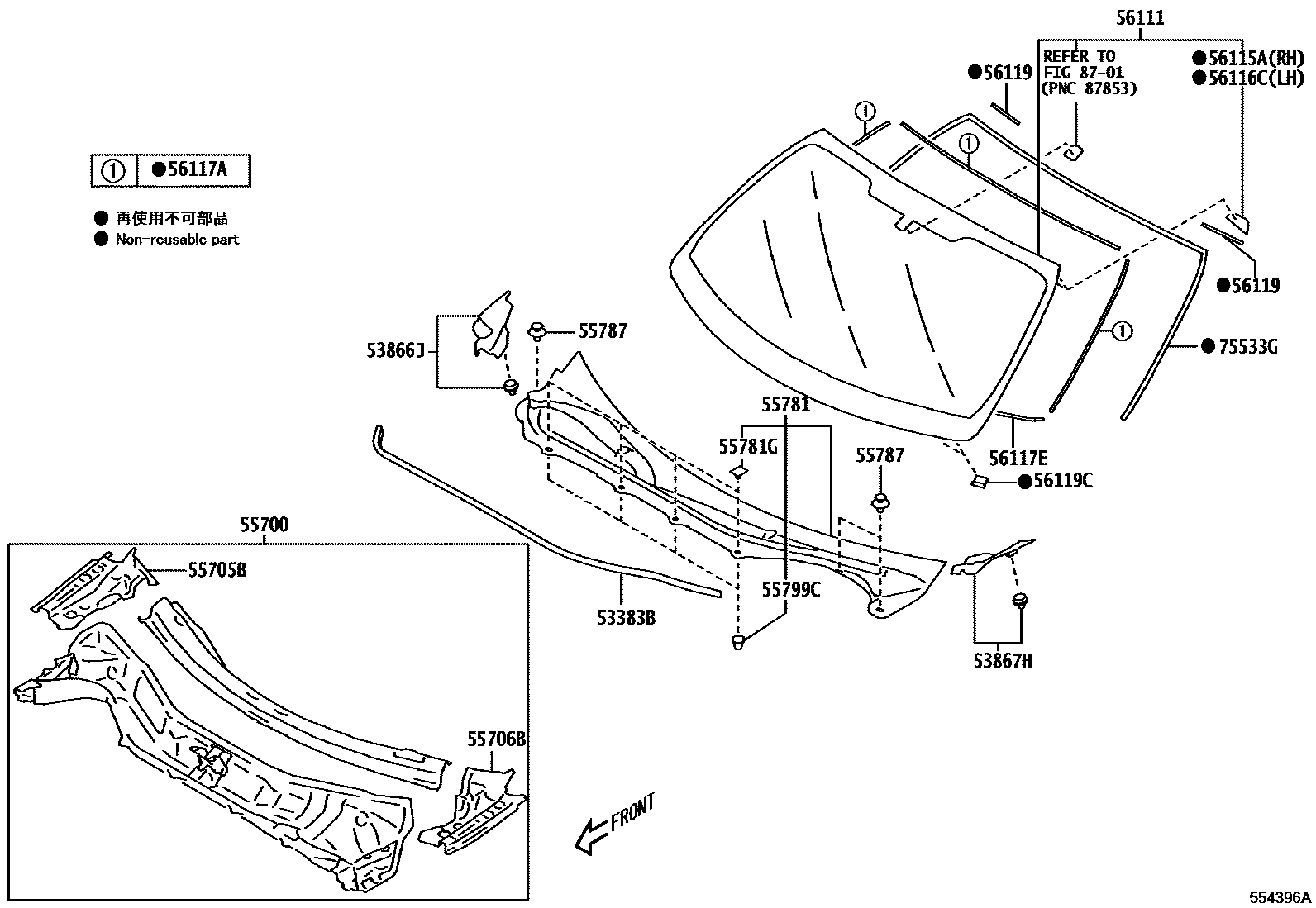

Parts diagram

53383BSEAL, HOOD TO COWL TOP

mainSU00307339i201804-201904

mainSU00307339i201608-201709

mainSU00307339i201710-201803

mainSU00307339i201903-202104

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

mainSU00305729i201608-201709

mainSU00305729i201710-201803

mainSU00305729i201804-201904

mainSU00305729i201903-202104

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

mainSU00305730i201804-201904

mainSU00305730i201608-201709

mainSU00305730i201710-201803

mainSU00305730i201903-202104

55700PANEL ASSY, FRONT

mainSU00301235i201608-201709

mainSU00301235i201710-201803

mainSU00301235i201804-201904

mainSU00301235i201903-202104

mainSU00301236i201903-202104

mainSU00301236i201608-201709

mainSU00301236i201804-201904

mainSU00301236i201710-201803

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

mainSU00301237i201608-201709

mainSU00301237i201710-201803

mainSU00301237i201804-201904

mainSU00301237i201903-202104

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

mainSU00301238i201710-201803

mainSU00301238i201608-201709

mainSU00301238i201804-201904

mainSU00301238i201903-202104

55781LOUVER, COWL VENTILATOR

mainSU00303133i201804-201904

mainSU00303133i201608-201709

mainSU00303133i201710-201803

mainSU00303133i201903-202104

mainSU00303134i201608-201709

mainSU00303134i201804-201904

mainSU00303134i201903-202104

mainSU00303134i201710-201803

55781GCLIP, COWL TOP VENTILATOR LOUVER

mainSU00303141i201608-201709

mainSU00303141i201710-201803

mainSU00303141i201903-202104

mainSU00303141i201804-201904

55787CLIP, COWL VENTILATOR LOUVER, INNER

mainSU00302987i201804-201904

mainSU00302987i201608-201709

mainSU00302987i201710-201803

mainSU00302987i201903-202104

55799CCLIP, COWL TOP VENTILATOR LOUVER

mainSU00303140i201710-201803

mainSU00303140i201608-201709

mainSU00303140i201804-201904

mainSU00303140i201903-202104

56111GLASS, WINDSHIELD

mainSU003G0006i201903-202104

mainSU003G0006i201608-201709

mainSU003G0006i201710-201803

mainSU003G0006i201804-201904

mainSU003G0007i201804-201904

mainSU003G0007i201608-201709

mainSU003G0007i201710-201803

mainSU003G0007i201903-202104

56115ASTOPPER, WINDSHIELD GLASS, NO.1

mainSU00301888i201804-201904

mainSU00301888i201608-201709

mainSU00301888i201710-201803

mainSU00301888i201903-202104

56116CSTOPPER, WINDSHIELD GLASS, NO.2

mainSU00301889i201608-201709

mainSU00301889i201710-201803

mainSU00301889i201804-201904

mainSU00301889i201903-202104

56117ADAM, WINDOW GLASS ADHESIVE

mainSU00301890i201608-201709

L=2281

mainSU00301890i201710-201803

L=2281

mainSU00301890i201804-201904

L=2281

mainSU00301890i201903-202104

L=2281

56117EDAM, WINDOW GLASS ADHESIVE

mainSU00301892i201608-201709

L=1497.2

subSU003-08048¥470

mainSU00301892i201710-201803

L=1497.2

subSU003-08048¥470

mainSU00301892i201804-201805

L=1497.2

subSU003-08048¥470

mainSU00308048i201805-201904

L=1497.2

mainSU00308048i201903-202104

L=1497.2

56119SEAL, WINDSHIELD GLASS

mainSU00301894i201608-201709

mainSU00301894i201710-201803

mainSU00301894i201804-201904

mainSU00301894i201903-202104

56119CSEAL, WINDSHIELD GLASS

mainSU00301895i201608-201709

mainSU00301895i201710-201803

mainSU00301895i201804-201904

mainSU00301895i201903-202104

75533GMOULDING, WINDSHIELD, OUTSIDE

mainSU00301893i201608-201709

mainSU00301893i201710-201803

mainSU00301893i201804-201904

mainSU00301893i201903-202104

8701

19 parts on this diagram · 1 diagram in section
