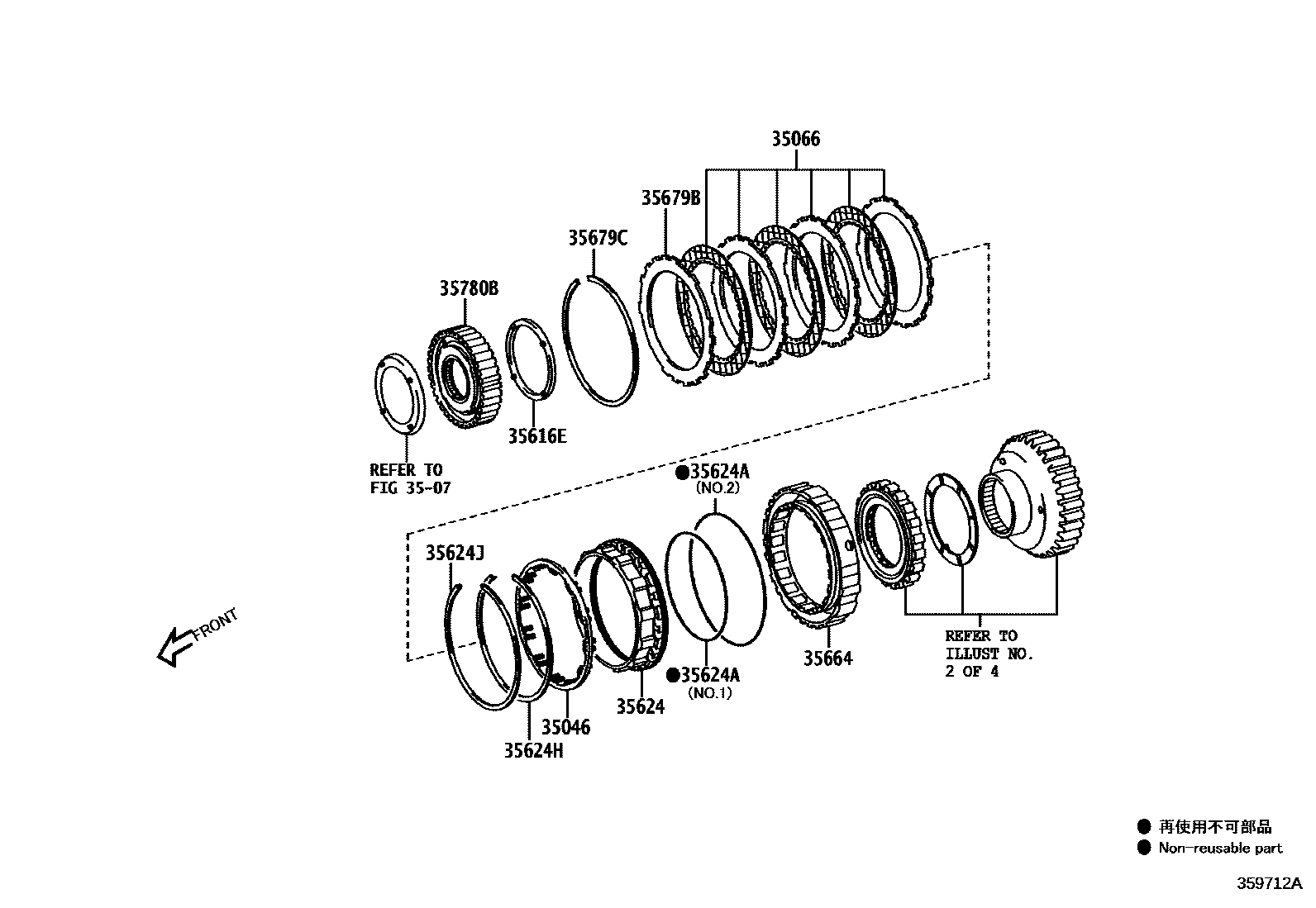

Toyota 86 — CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35046SPRING SUB-ASSY, BRAKE PISTON RETURN, NO.3
35066DISC SET, 2ND BRAKE
3507
35616EWASHER,CLUTCH DRUM THRUST
35624PISTON, 2ND BRAKE
35624ARING, O (FOR 2ND BRAKE PISTON)
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
35624HRING, SNAP (FOR 2ND BRAKE PISTON)
35624JRING, HOLE SNAP (FOR 2ND BRAKE PISTON)
35664CYLINDER, 2ND BRAKE
35679BFLANGE, BRAKE, NO.3
35679CRING, SNAP (FOR BRAKE NO.3)
35780BCLUTCH ASSY, 1 WAY N0.2
12 parts on this diagram · 4 diagrams in section
