Toyota 86 — BATTERY CARRIER

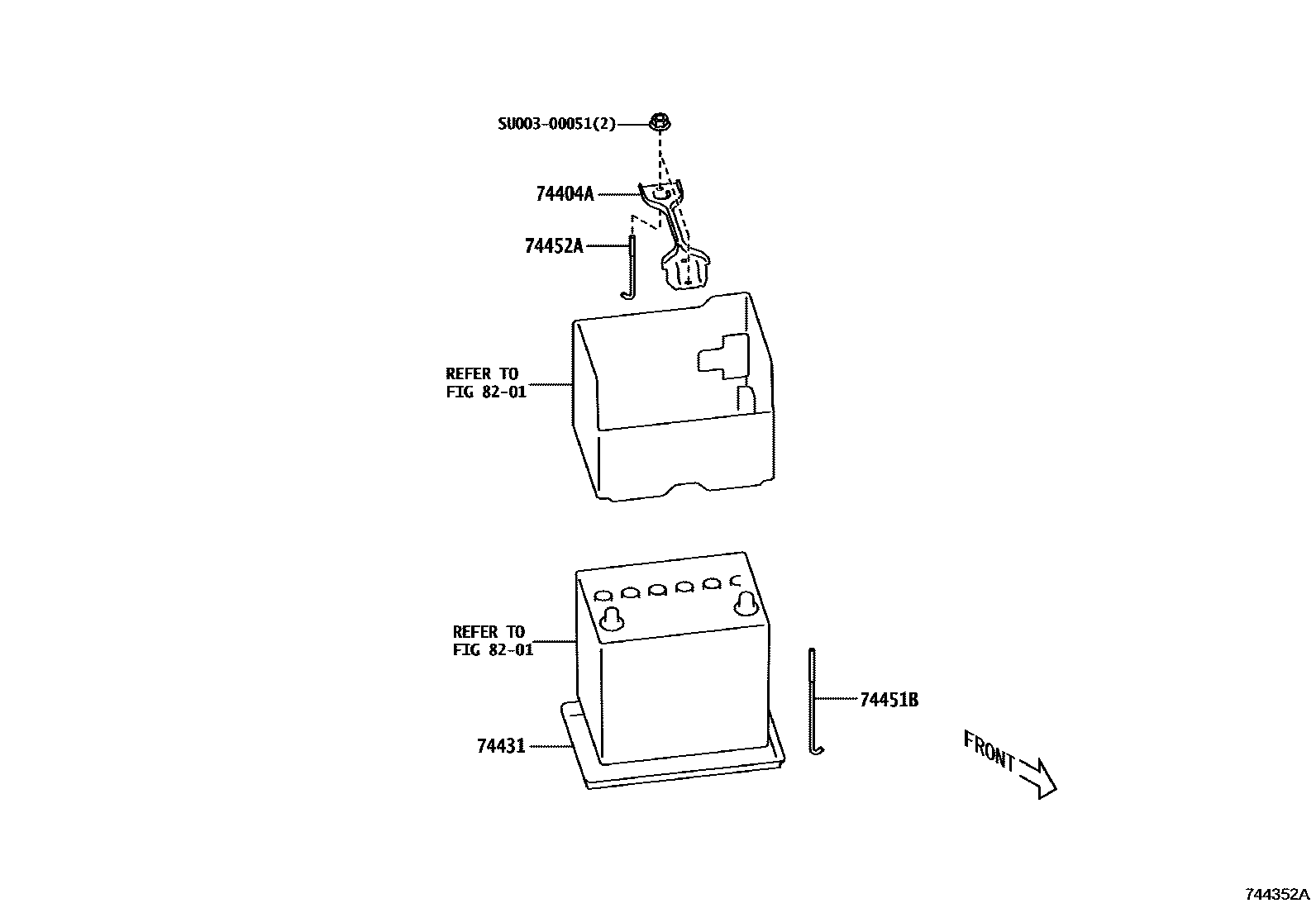

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

mainSU00302417i201608-201709

mainSU00302417i201710-201803

mainSU00302417i201804-201904

mainSU00302417i201903-202104

74431TRAY, BATTERY

mainSU00302411i201608-201709

mainSU00302411i201710-201803

mainSU00302411i201804-201904

mainSU00302411i201903-202104

74451BBOLT, BATTERY CLAMP

mainSU00304626i201608-201709

mainSU00304626i201710-201803

mainSU00304626i201804-201904

mainSU00304626i201903-202104

74452ABOLT, BATTERY CLAMP, NO.2

mainSU00302416i201608-201709

mainSU00302416i201710-201803

mainSU00302416i201804-201904

mainSU00302416i201903-202104

8201

SU00300051

mainSU003-00051¥20

6 parts on this diagram · 2 diagrams in section
