Toyota 4RUNNER — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-25012iT24..TZNA5#¥15,700202412

29314ACOVER, END

main29314-25010iT24..TZNA5#¥900202412

29329CAP, VACUUM PUMP VANE

main29329-25011iT24..TZNA5#¥900202412

29331AVANE, VACUUM PUMP

main29331-37010iT24..TZNA5#¥590202412

29343RING, O VACUUM PUMP, NO.1

main29343-25010iT24..TZNA5#¥340202412

29346RING, O VACUUM PUMP COVER

main29346-25010iT24..TZNA5#¥340202412

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

9010506352

main90105-06352¥60

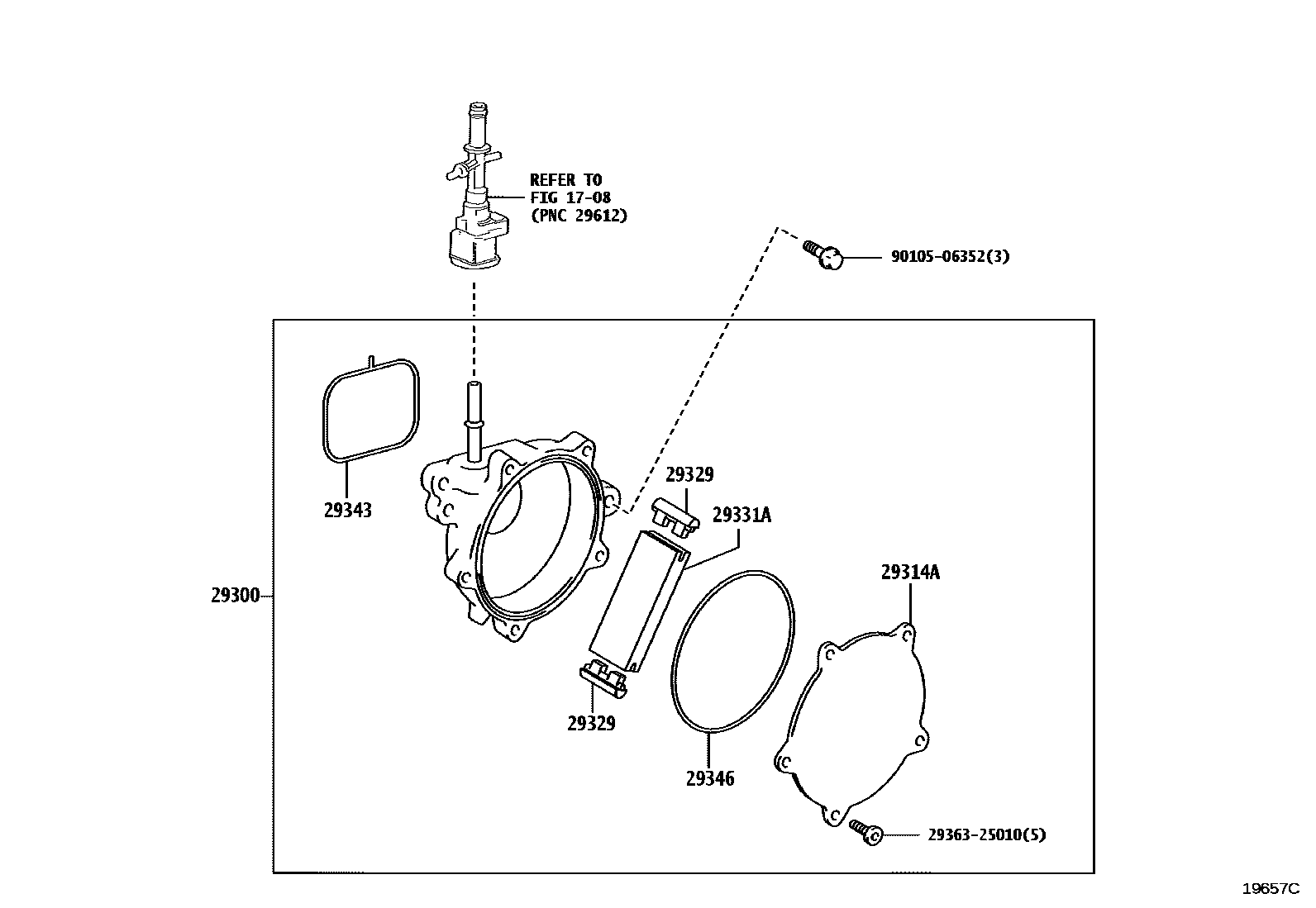

8 parts on this diagram · 1 diagram in section
