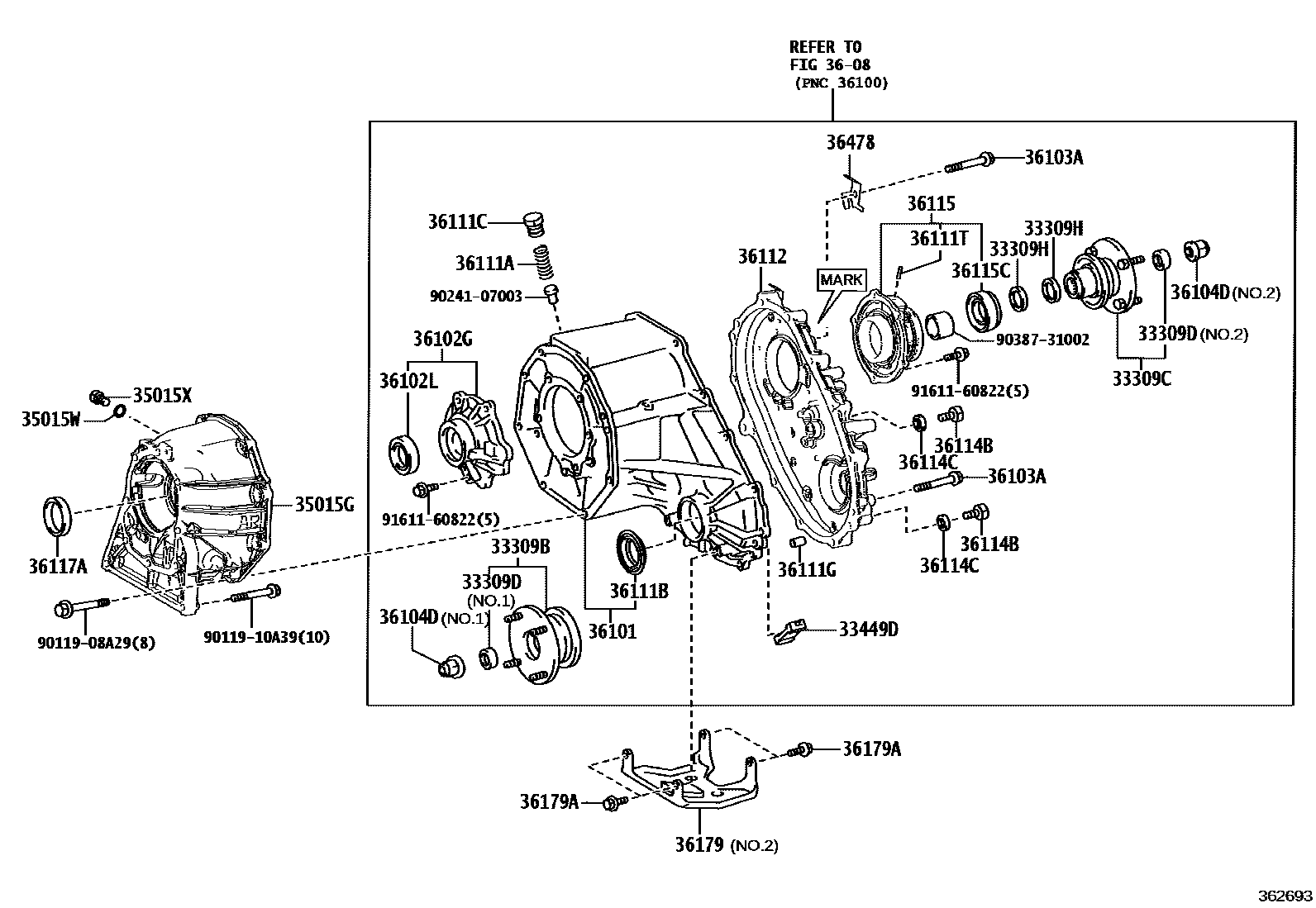

Toyota 4RUNNER — TRANSFER CASE & EXTENSION HOUSING
33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
MARK=VF2DM
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
NO.1,MARK=VF2DM
NO.2,MARK=VF2DM
LIMITED PACKAGE,NO.2,MARK=VF2DM
33309HWASHER, TRANSFER OUTPUT SHAFT
T=0.8,MARK=VF2DM
T=0.8,LIMITED PACKAGE,MARK=VF2DM
33449DMAGNET (FOR TRANSFER CASE)
MARK=VF2DM
35015GADAPTER, TRANSFER, REAR
35015WRING, O(FOR TRANSMISSION CASE ADAPTER REFILL PLUG)
35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)
3608
36101CASE SUB-ASSY, TRANSFER
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36102GRETAINER SUB-ASSY, TRANSFER FRONT BEARING
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36102LSEAL, TYPE T OIL(FOR TRANSFER FRONT BEARING)
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX55-30,MARK=VF2DM
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
NO.1
NO.2
LIMITED PACKAGE,NO.2
36111ASPRING, COMPRESSION (FOR TRANSFER CASE)
MARK=VF2DM
36111BSEAL, OIL (FOR TRANSFER CASE)
MARK=VF2DM
36111CPLUG (FOR TRANSFER CASE)
MARK=VF2DM
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10,MARK=VF2DM
36111TTUBE (FOR TRANSFER CASE)
36112CASE, TRANSFER, REAR
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36114BPLUG, NO.1 (FOR TRANSFER CASE)
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36114CGASKET, NO.1 (FOR TRANSFER CASE)
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36115HOUSING, TRANSFER EXTENSION
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
MARK=VF2DM
LIMITED PACKAGE,MARK=VF2DM
36117ASEAL, OIL(FOR TRANSFER ADAPTER)
36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)
36478BRACKET, TRANSFER BREATHER
MARK=VF2DM
9011908A29
9011910A39
9024107003
9038731002
9161160822
33 parts on this diagram · 2 diagrams in section
