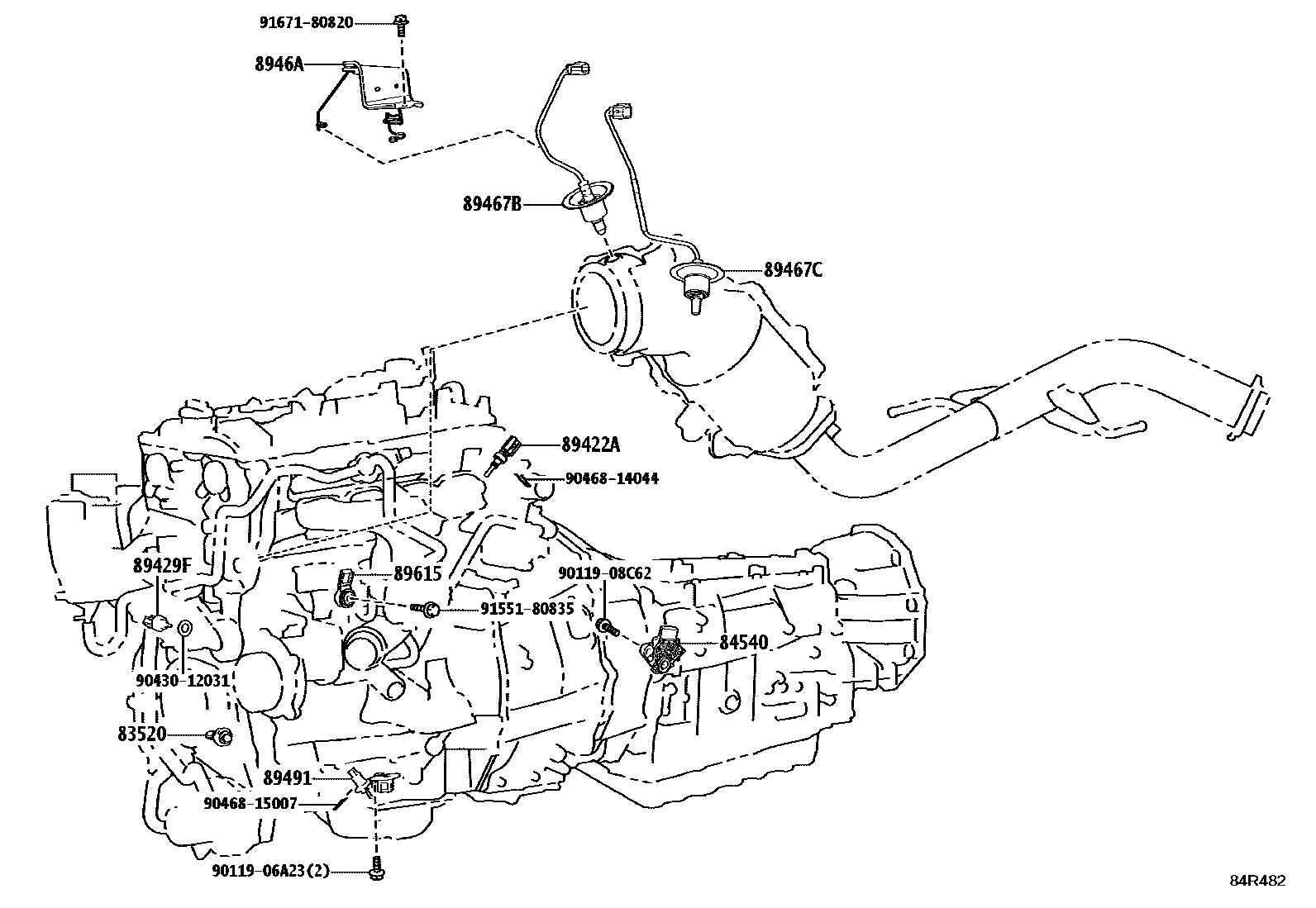

Toyota 4RUNNER — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 1/2 0006 1INSTRUMENT PANEL 2/2 0007 1CONSOLE BOX 0008 1STEERING 0009 1SEAT 0010 1DOOR & ROOF 0011 1FLOOR & BACK DOOR

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60070¥2,470

84540SWITCH ASSY, NEUTRAL START

89422ASENSOR, WATER TEMPERATURE

main89422-33040iTZNA5#¥2,410202412

89429FSENSOR, TEMPERATURE

89467BSENSOR, AIR FUEL RATIO

main89467-60270iTZNA5#202412

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-60280iTZNA5#202412

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-35010iTZNA5#202412

89491SENSOR, ENGINE OIL LEVEL

main89491-33052iTZNA5#¥3,330202412

89615SENSOR, KNOCK CONTROL

main89615-78010iTZNA5#¥10,600202412

9011906A23

main90119-06A23¥60

9011908C62

main90119-08C62¥80

9043012031

main90430-12031¥90

9046814044

main90468-14044¥60

9046815007

main90468-15007¥80

9155180835

main91551-80835¥80

9167180820

main91671-80820¥80

16 parts on this diagram · 11 diagrams in section
