Toyota 4RUNNER — SIDE WINDOW

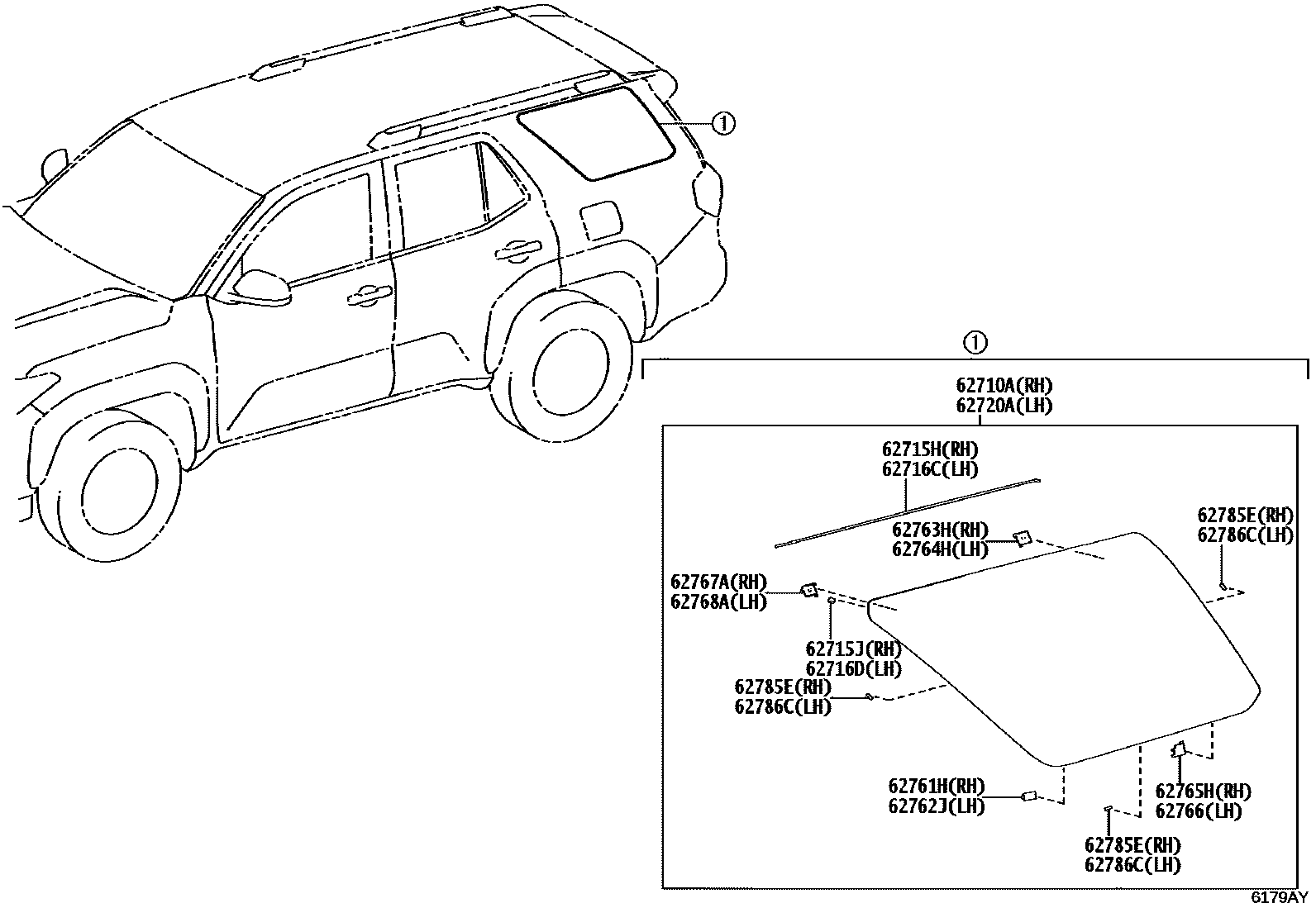

Parts diagram

62710AWINDOW ASSY, QUARTER, RH

main62710-35030i202412

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main56117-50140i¥870202412

62715JDAM, QUARTER WINDOW GLASS ADHESIVE, NO.2 RH

main62716-35010i202412

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main56117-50140i¥870202412

62716DDAM, QUARTER WINDOW GLASS ADHESIVE, NO.2 LH

main62716-35010i202412

62720AWINDOW ASSY, QUARTER, LH

main62720-35040i202412

62761HRETAINER, QUARTER WINDOW GLASS, FRONT

main62761-35030i202412

62762JRETAINER, QUARTER WINDOW GLASS, FRONT LH

main62762-35020i202412

62763HRETAINER, QUARTER WINDOW GLASS, UPPER RH

main62763-35030i202412

62764HRETAINER, QUARTER WINDOW GLASS, UPPER LH

main62764-35030i202412

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-35030i202412

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-35030i202412

62767ARETAINER, QUARTER WINDOW GLASS, REAR RH

main62767-35010i202412

62768ARETAINER, QUARTER WINDOW GLASS, REAR LH

main62768-35010i202412

62785ESPACER, QUARTER WINDOW GLASS, RH

main62785-35030i¥180202412

62786CSPACER, QUARTER WINDOW GLASS, LH

main62785-35030i¥180202412

16 parts on this diagram · 1 diagram in section
