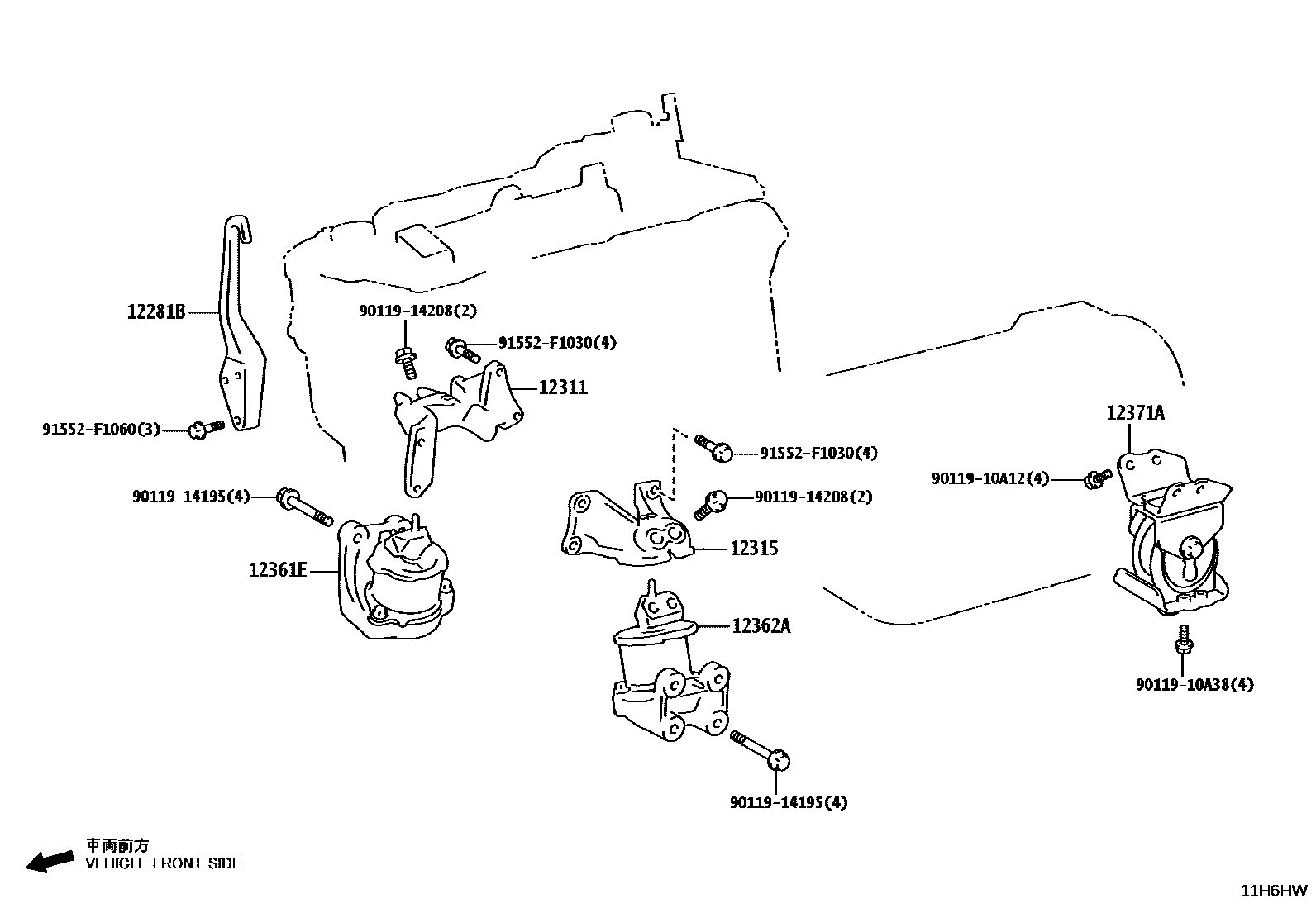

Toyota 4RUNNER — MOUNTING

0001 1 0002 1

12281BHANGER, ENGINE, NO.1

main12281-25110iT24..TZNA5#202412

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-25150iT24..TZNA5#202412

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-25060iT24..TZNA5#202412

12361EINSULATOR, ENGINE MOUNTING, FRONT RH

main12361-25150iT24..TZNA5#202412

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-25020iT24..TZNA5#202412

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-25190iT24..TZNA55202412

main12371-25220iT24..TZNA50202412

9011910A12

main90119-10A12¥120

9011910A38

main90119-10A38¥120

9011914195

main90119-14195¥430

9011914208

main90119-14208¥310

91552F1030

main91552-F1030¥100

91552F1060

main91552-F1060¥160

12 parts on this diagram · 2 diagrams in section
