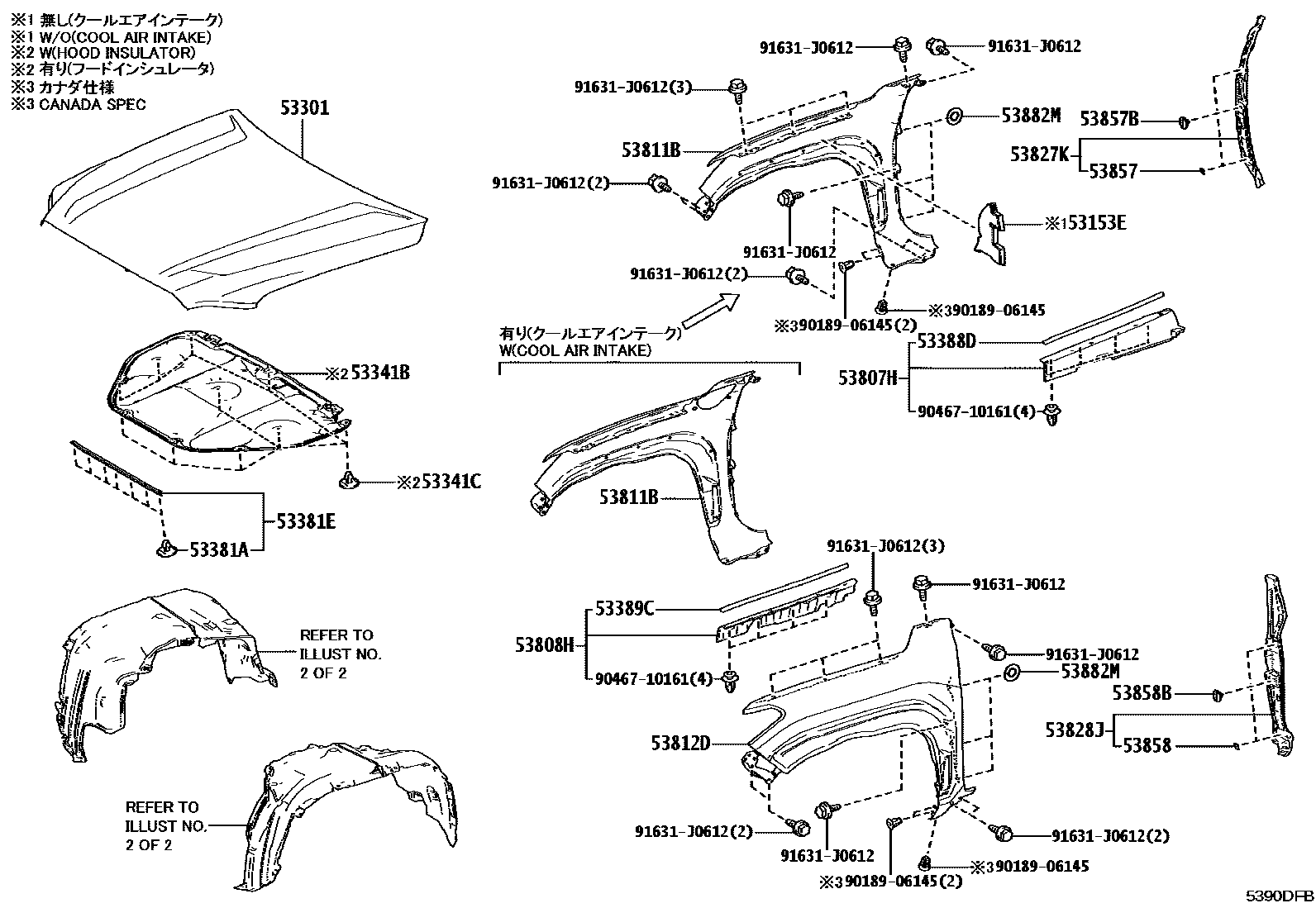

Toyota 4RUNNER — HOOD & FRONT FENDER

0001 1 0002 1TRD PRO OR TRD SPORT PACKAGE 0003 1

53153EGUIDE, FRONT SIDE AIR

main53153-35030iTZNA5#202412

53301HOOD SUB-ASSY

main53301-35240iTZNA5#202412

53341BINSULATOR, HOOD

53341CCLIP(FOR HOOD INSULATOR)

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iTZNA5#¥100202412

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-35080iTZNA5#202412

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-35030iTZNA5#202412

53389CSEAL, HOOD TO FRONT FENDER, LH

main53388-35030iTZNA5#202412

53807HPROTECTOR SUB-ASSY, FRONT FENDER, UPPER RH

main53807-35140iTZNA5#202412

53808HPROTECTOR SUB-ASSY, FRONT FENDER, UPPER LH

main53808-35130iTZNA5#202412

53811BPANEL, FRONT FENDER, RH

main53811-35440iTZNA5#202412

53812DPANEL, FRONT FENDER, LH

main53812-35530iTZNA5#202412

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-35060iTZNA5#202412

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-35080iTZNA5#202412

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iTZNA5#¥100202412

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iTZNA5#¥60202412

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iTZNA5#¥100202412

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iTZNA5#¥60202412

53882MSEAL, FRONT FENDER

main53882-30030iTZNA5#¥60202412

9018906145

main90189-06145¥80

9046710161

main90467-10161¥90

91631J0612

main91631-J0612¥110

22 parts on this diagram · 3 diagrams in section
