Toyota 4RUNNER — HEATING & AIR CONDITIONING - COOLER PIPING

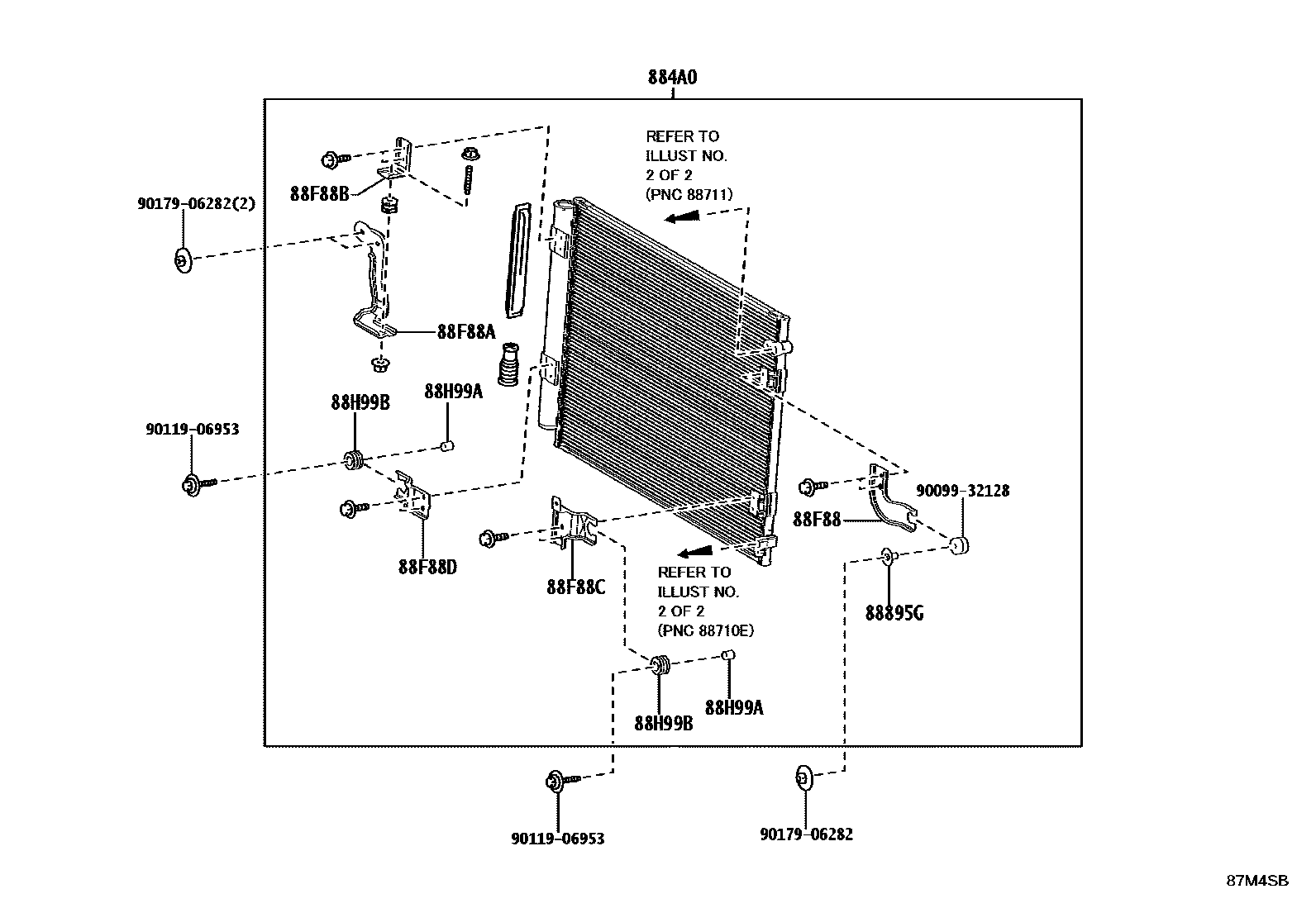

0001 1CONDENSER 0002 1

884A0CONDENSER ASSY, COOLER

main884A0-35010iTZNA5#202412

88895GBUSH

main88895-89102iTZNA5#¥0202412

88F88BRACKET, CONDENSER, NO.1

main88688-35740iTZNA5#202412

88F88ABRACKET, CONDENSER, NO.2

main88688-35750iTZNA5#202412

88F88BBRACKET, CONDENSER, NO.3

main88688-35760iTZNA5#202412

88F88CBRACKET, CONDENSER, NO.4

main88688-35770iTZNA5#202412

88F88DBRACKET, CONDENSER, NO.5

main88688-35780iTZNA5#202412

88H99ABUSH, CONDENSER BRACKET, NO.1

main88899-60650iTZNA5#202412

88H99BBUSH, CONDENSER BRACKET, NO.2

main88899-60660iTZNA5#202412

9009932128

main90099-32128

9011906953

main90119-06953¥80

9017906282

main90179-06282¥90

12 parts on this diagram · 2 diagrams in section
