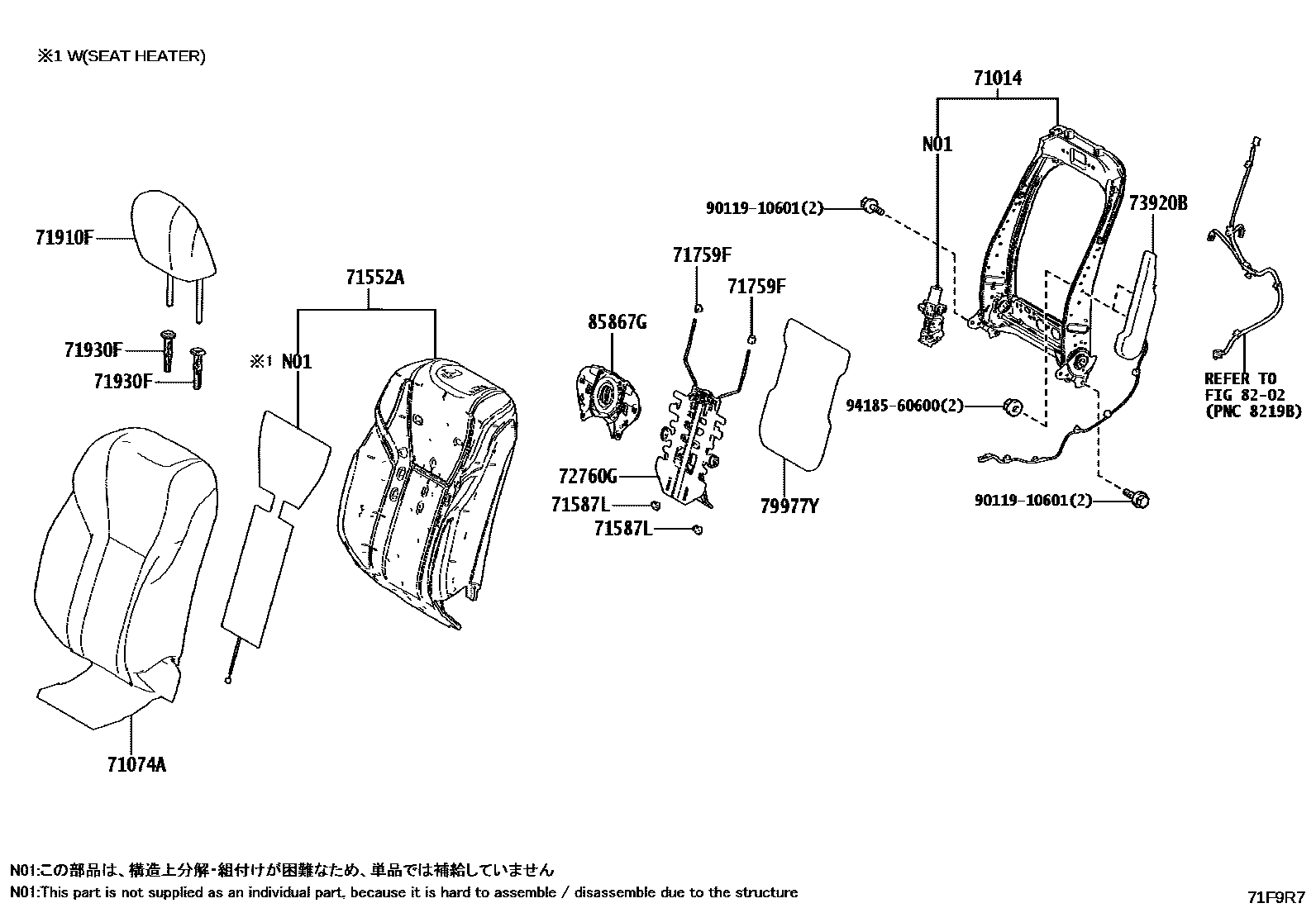

Toyota 4RUNNER — FRONT SEAT & SEAT TRACK

71014FRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-35060i202412

71074ACOVER SUB-ASSY, FRONT SEATBACK, LH

main71074-35A70-B3i202412

LT.GREY,TRIM1#

main71074-35A70-C6i202412

BLACK,TRIM2#

71552APAD, FRONT SEATBACK, LH

main71552-35140i202412

71587LPROTECTOR, FRONT SEATBACK EDGE, LH

main71587-47010i¥200202412

71759FHOOK, FRONT SEATBACK, LH

main71759-50040i¥130202412

71910FHEADREST ASSY, FRONT SEAT, LH

main71910-35890-B0i202412

LT. GREY,TRIM1#

main71910-35890-C0i202412

BLACK,TRIM2#

71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH

main71930-28050-C0i202412

W(LOCK),BLACK,TRIM1#,2#

main71930-28050-C0i202412

W(LOCK),TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#

main71930-28050-C0i202412

W(LOCK),TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#

main71931-28060-C0i202412

W/O(LOCK),BLACK,TRIM1#,2#

main71931-28060-C0i202412

W/O(LOCK),TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#

main71931-28060-C0i202412

W/O(LOCK),TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&FRONT SEAT-*DRS:POWER(8WAY)&MEMORY,*PAS:POWER(8WAY)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#,4#

72760GADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-33140i¥20,300202412

73920BAIRBAG ASSY, FRONT SEAT, LH

main73920-35020i202412

79977YFELT, SEATBACK, LH

main79977-33030i¥1,080202412

85867GBLOWER, SEATBACK CLIMATE CONTROL, LH

9011910601

main90119-10601¥90

9418560600

main94185-60600¥70

13 parts on this diagram · 6 diagrams in section
