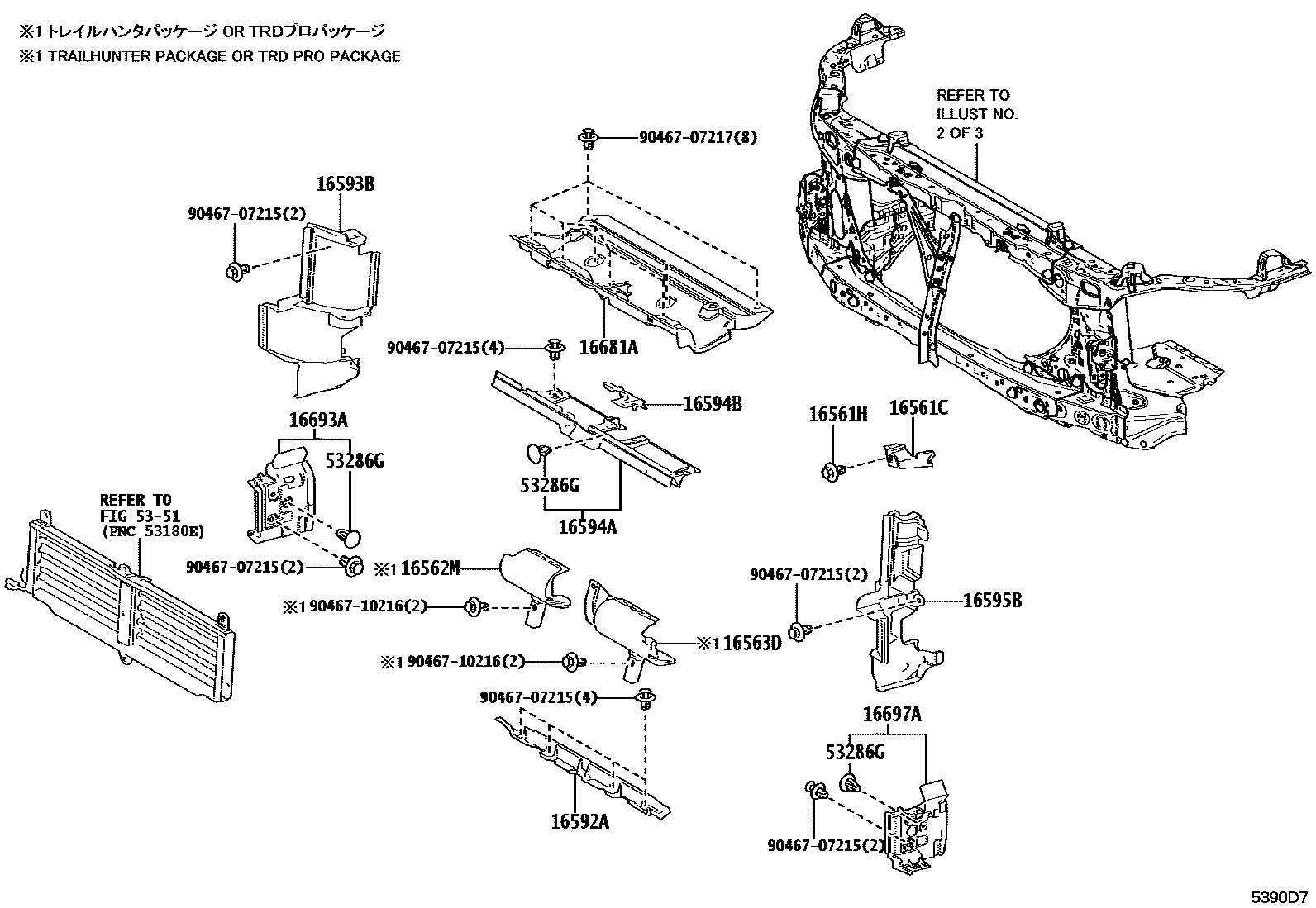

Toyota 4RUNNER — FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-25040iT24..TZNA5#¥490202412

16561HCLIP, RADIATOR TO SUPPORT SEAL

main90467-07215iT24..TZNA5#¥80202412

16562MSEAL, RADIATOR TO SUPPORT, NO.2

16563DSEAL, RADIATOR TO SUPPORT, NO.3

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25100iT24..TZNA5#202412

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25460iT24..TZNA5#202412

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25100iT24..TZNA5#202412

16594BGUIDE, RADIATOR AIR, NO.2

main16594-25080iT24..TZNA5#202412

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25430iT24..TZNA5#202412

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-25050iT24..TZNA5#202412

16693APLATE, RADIATOR SIDE AIR GUIDE, REAR RH

main16693-11010iT24..TZNA5#¥2,400202412

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16697-11010iT24..TZNA5#¥2,350202412

53286GCLIP, RADIATOR SIDE AIR SEAL

main90467-10005-C0iTZNA5#202412

BLACK

sub90467-10005¥90

sub90467-06017¥110

5351

9046707215

main90467-07215¥80

9046707217

main90467-07217¥80

9046710216

main90467-10216¥100

17 parts on this diagram · 3 diagrams in section
