Toyota 4RUNNER — ENGINE OIL PUMP

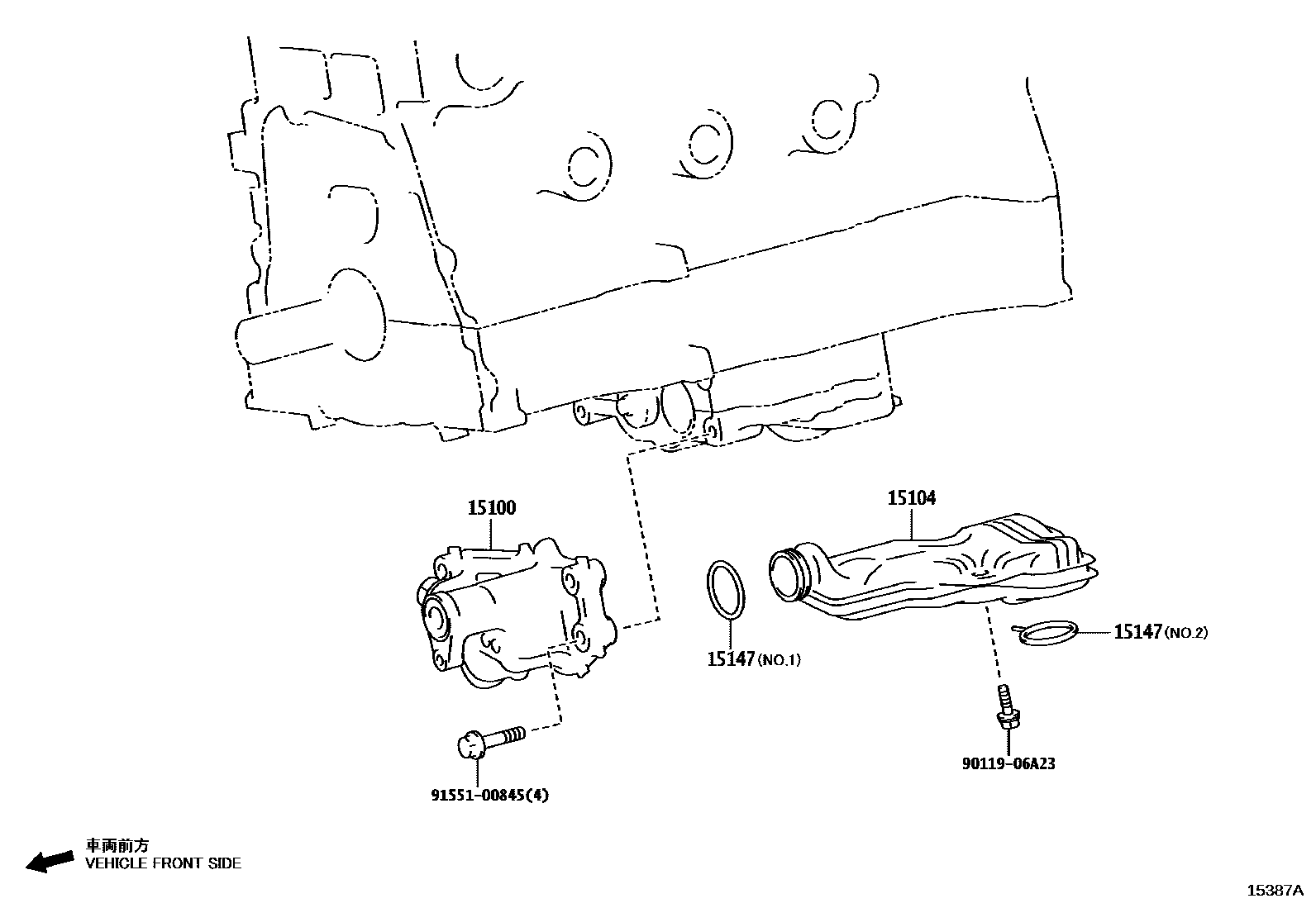

Parts diagram

15100PUMP ASSY, OIL

main15100-25060i202412

15104STRAINER SUB-ASSY, OIL

main15104-25050i202412

15147GASKET, OIL STRAINER

main15147-25030i¥340202412

NO.1

main15147-25040i202412

NO.2

9011906A23

main90119-06A23¥60

9155100845

main91551-00845¥100

5 parts on this diagram · 1 diagram in section
