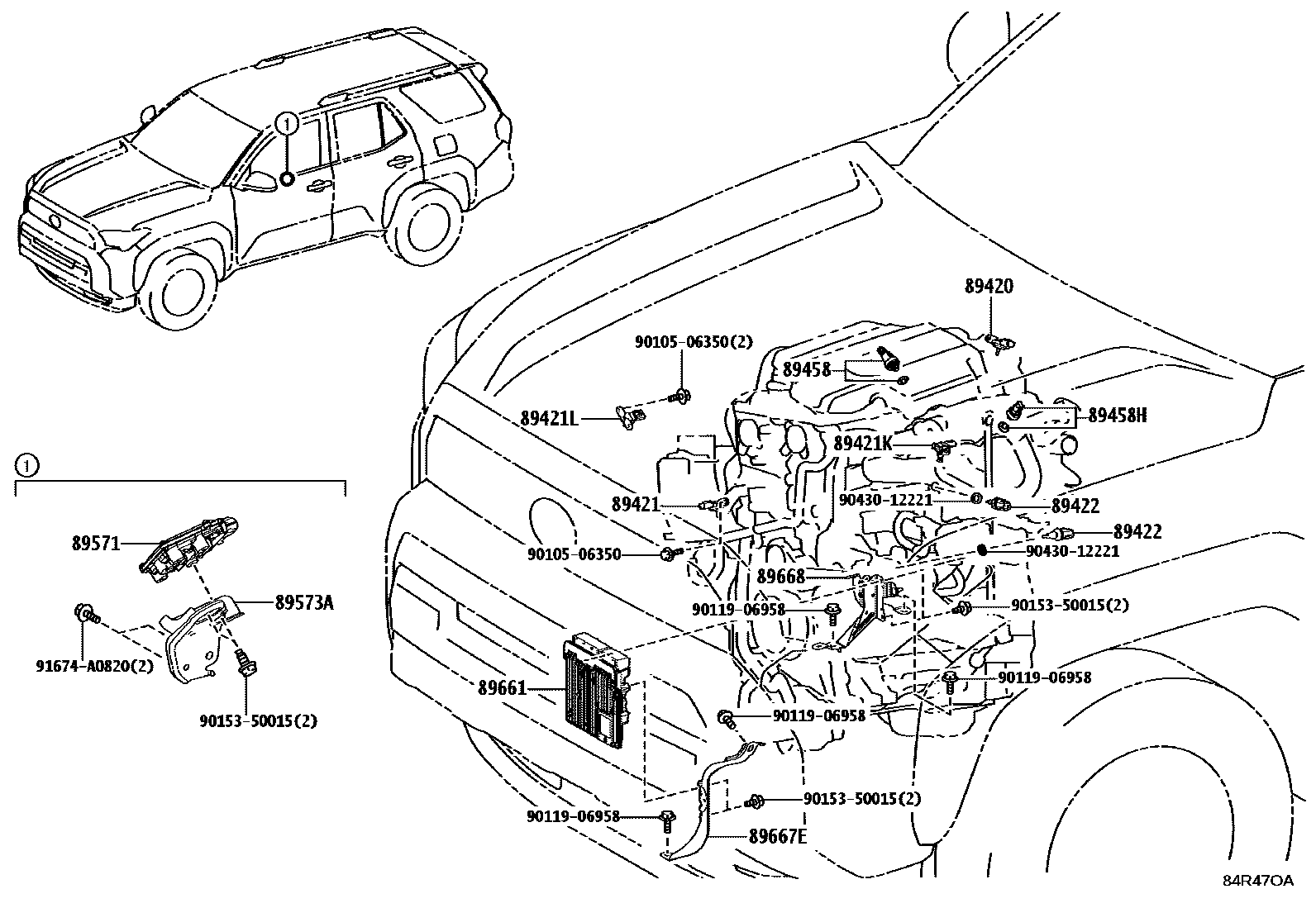

Toyota 4RUNNER — ELECTRONIC FUEL INJECTION SYSTEM

89420SENSOR ASSY, VACUUM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-78030¥5,900

main89421-78040¥5,900

89421KSENSOR, TURBO PRESSURE, NO.1

89421LSENSOR, TURBO PRESSURE, NO.2

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030¥2,410

89458SENSOR, FUEL PRESSURE

main89458-78030¥4,320

main89458-33042¥4,320

89458HSENSOR, FUEL PRESSURE, NO.2

89571COMPUTER, FUEL PUMP CONTROL

main89571-35010¥9,900

89573ABRACKET, FUEL PUMP CONTROL COMPUTER, NO.2

89661COMPUTER, ENGINE CONTROL

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

9010506350

main90105-06350¥60

9011906958

main90119-06958¥60

9015350015

main90153-50015¥60

9043012221

main90430-12221¥200

91674A0820

main91674-A0820¥80

17 parts on this diagram · 1 diagram in section
