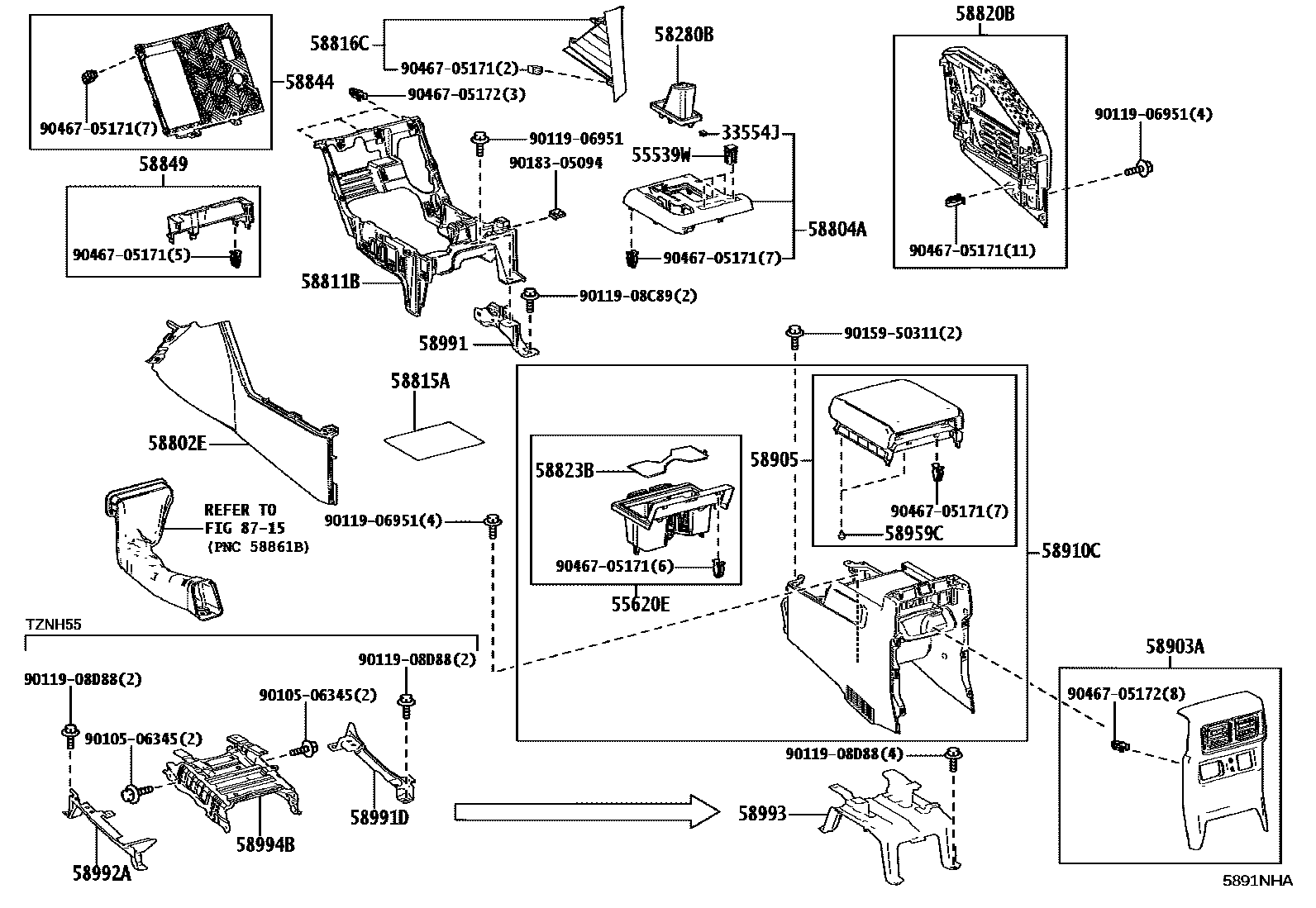

Toyota 4RUNNER — CONSOLE BOX & BRACKET
33554JCOVER, SHIFT LOCK RELEASE BUTTON
55539WCOVER, SPARE SWITCH HOLE
55620EHOLDER ASSY, INSTRUMENT PANEL CUP
BLACK,TRIM1#,2#
58280BBOOT ASSY, SHIFT LEVER
BLACK,TRIM1#,2#,4#
58802EBOX SUB-ASSY, CONSOLE, FRONT
BLACK,TRIM1#,2#,4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
58811BBOX, CONSOLE
BLACK,TRIM1#,2#,4#
58815ACARPET, CONSOLE BOX
58816CINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM1#,2#,4#
58820BPANEL ASSY, CONSOLE, UPPER
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
TRD SPORT PACKAGE,BLACK,TRIM1#,2#,4#
58823BBOX, CONSOLE COMPARTMENT
58844BEZEL, CONSOLE BOX
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
58849COVER, CONSOLE BOX HOLE, NO.2
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
TRD SPORT PACKAGE,BLACK,TRIM1#,2#,4#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM1#,2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM1#,2#
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM1#,2#
58959CCUSHION, CONSOLE COMPARTMENT DOOR
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
58991DBRACKET, CONSOLE BOX MOUNTING, UPR RH
58992ABRACKET, CONSOLE BOX MOUNTING, UPR LH
58993BRACKET, CONSOLE BOX MOUNTING, REAR
58994BBRACKET, CONSOLE BOX MOUNTING, NO.4
8715
9010506345
9011906951
9011908C89
9011908D88
9015950311
9018305094
9046705171
9046705172
31 parts on this diagram · 1 diagram in section
