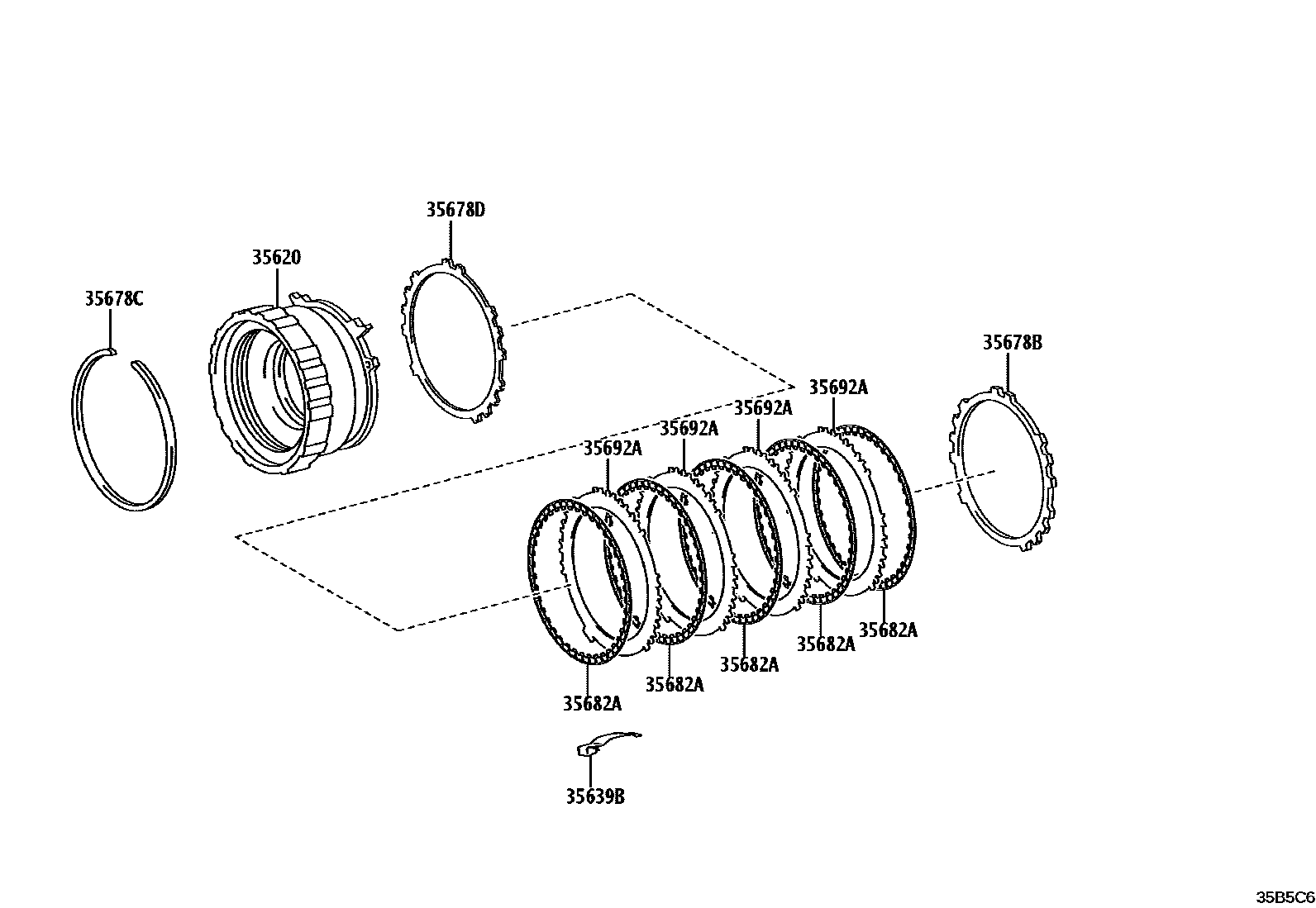

Toyota 4RUNNER — CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35620SUPPORT ASSY, CENTER
35639BSPRING, BRAKE PLATE STOPPER
35678BFLANGE, BRAKE, NO.2
T=4.3
35678CRING, SNAP (FOR BRAKE NO.2)
35678DFLANGE, BRAKE, NO.2
T=1.8,MARK 0
T=1.9,MARK 1
T=2.0,MARK 2
T=2.1,MARK 3
T=2.2,MARK 4
T=2.3,MARK 5
T=2.4,MARK 6
T=2.5,MARK 7
T=2.6,MARK 8
T=2.7,MARK 9
T=2.8,MARK A
35682ADISC, BRAKE, NO.2
35692APLATE, BRAKE, NO.2
7 parts on this diagram · 1 diagram in section
