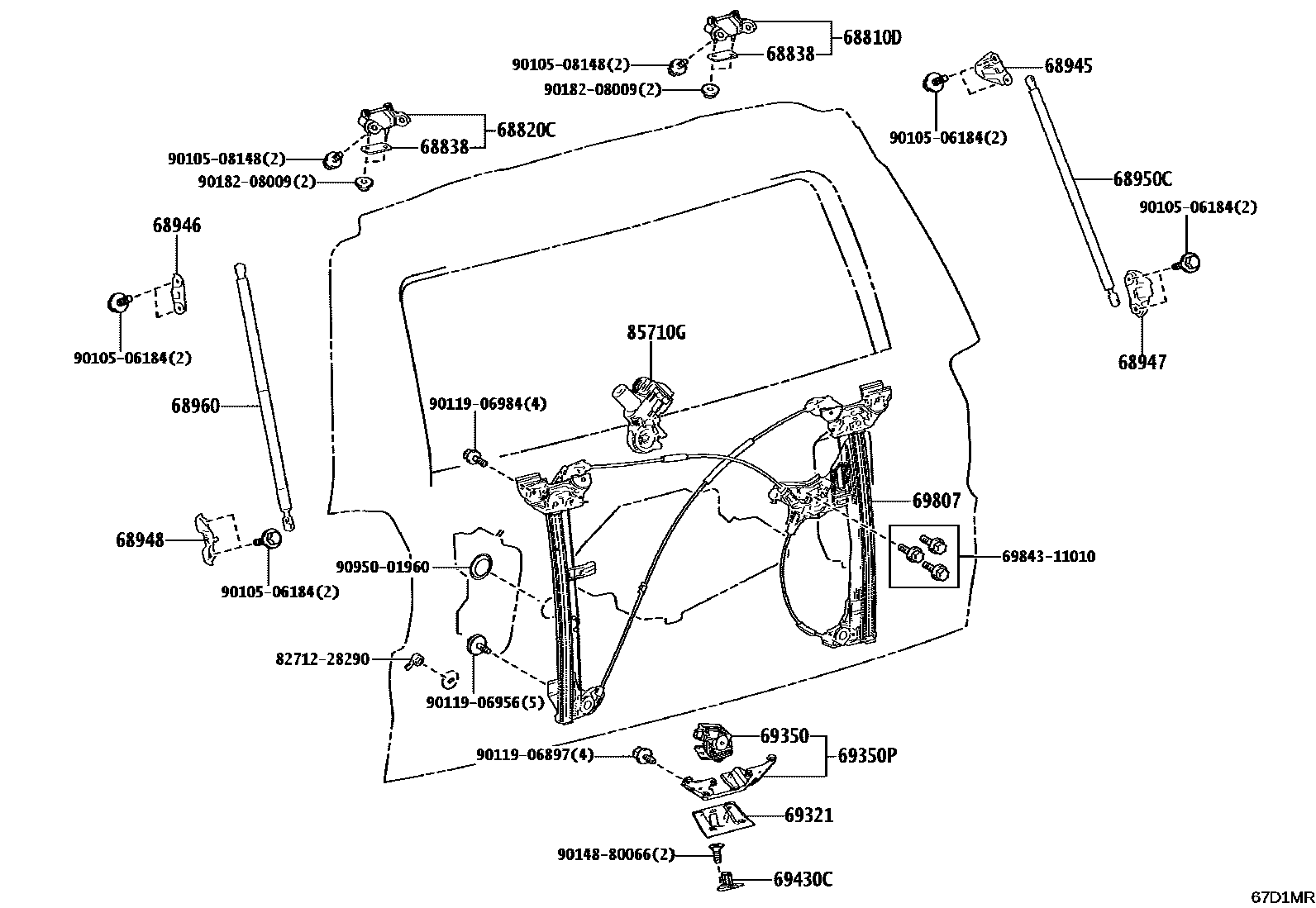

Toyota 4RUNNER — BACK DOOR LOCK & HINGE

0001 1WITHOUT POWER BACK DOOR 0002 1WITH POWER BACK DOOR

68810DHINGE ASSY, BACK DOOR, RH

main68810-52270iTZNA5#¥2,600202412

68820CHINGE ASSY, BACK DOOR, LH

main68810-52270iTZNA5#¥2,600202412

68838PAD, BACK DOOR HINGE, NO.1

main68838-48140iTZNA5#¥200202412

T=1.0,PAD T=1.0

main68838-48150iTZNA5#¥270202412

T=1.5,PAD T=1.5

main68838-48160iTZNA5#¥360202412

T=2.0,PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-35020iTZNA5#202412

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-35020iTZNA5#202412

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-35010iTZNA5#202412

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-35030iTZNA5#202412

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WJ60iTZNA5#202412

68960STAY ASSY, BACK DOOR, LH

main68950-0WJ60iTZNA5#202412

69321COVER, BACK DOOR LOCK

main69321-35020iTZNA5#202412

69350LOCK ASSY, BACK DOOR

main69350-42090iTZNA5#¥8,800202412

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-35040iTZNA5#202412

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-35020iTZNA5#202412

69807REGULATOR SUB-ASSY, BACK DOOR POWER WINDOW

main69807-35040iTZNA5#202412

85710GMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35230iTZNA5#202412

6984311010

main69843-11010¥780

8271228290CLAMP, WIRING HARNESS

main82712-28290¥100

9010506184

main90105-06184¥70

9010508148

main90105-08148¥80

9011906897

main90119-06897¥60

9011906956

main90119-06956¥60

9011906984

main90119-06984¥60

9014880066

main90148-80066¥60

9018208009

main90182-08009¥100

9095001960

main90950-01960¥120

25 parts on this diagram · 2 diagrams in section
