Toyota 4RUNNER — ALTERNATOR

0001 112V 130A 0002 112V 150A 0003 112V 180A

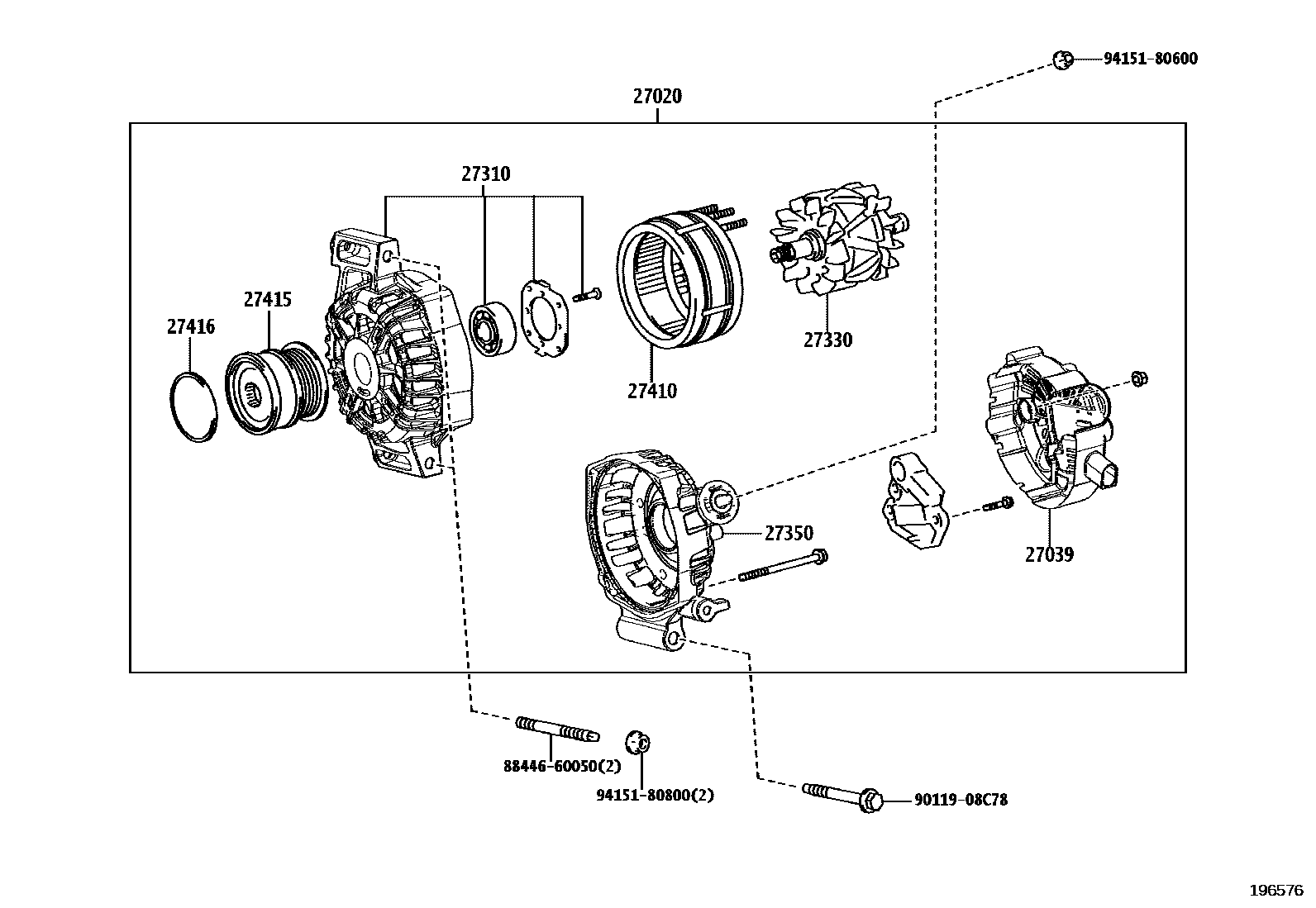

27020ALTERNATOR ASSY

main27060-F0100iT24..TZNA5#202412

12V 130A

27039COVER, ALTERNATOR REAR END

main27039-F0080iT24..TZNA5#202412

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-F0080iT24..TZNA5#202412

27330ROTOR ASSY, ALTERNATOR

main27330-F0080iT24..TZNA5#202412

27350FRAME ASSY, RECTIFIER END

main27350-F0080iT24..TZNA5#202412

27410STATOR ASSY, ALTERNATOR

main27410-F0080iT24..TZNA5#202412

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-F0050iT24..TZNA5#202412

27416CAP, ALTERNATOR PULLEY

main27416-0W050iT24..TZNA5#¥340202412

8844660050BOLT, IDLE PULLEY

main88446-60050¥0

9011908C78

main90119-08C78¥0

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

12 parts on this diagram · 3 diagrams in section
