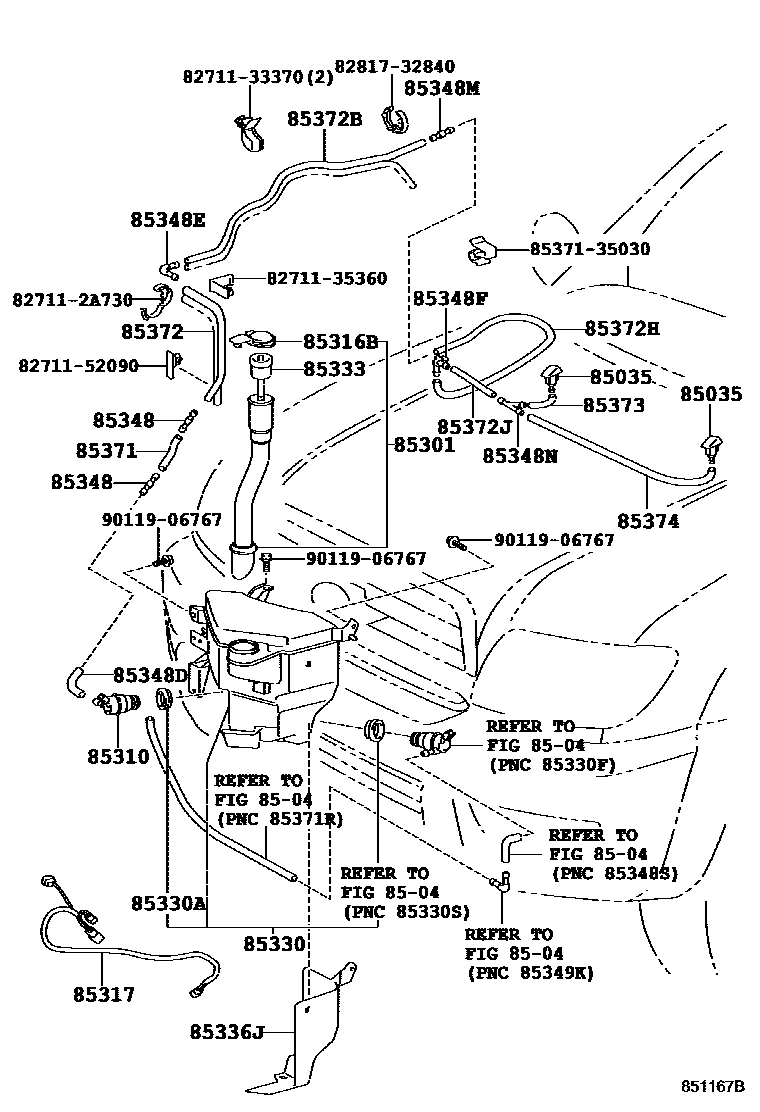

Toyota 4RUNNER — WINDSHIELD WASHER
8504
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85316BCAP, WASHER, INLET
85317WIRING ASSY, WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=60)
L=1450(*H,L=60)
L=1450(*H,L=60)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=210)
L=1450(*H,L=210)
L=1450(*H,L=210)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=1040)
L=1450(*H,L=1040)
L=1450(*H,L=1040)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=570)
L=1450(*H,L=570)
L=1450(*H,L=570)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=340)
L=1450(*H,L=340)
L=1450(*H,L=340)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=100)
L=1450(*H,L=100)
L=1450(*H,L=100)
85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)
L=1450(*H,L=710)
L=1450(*H,L=710)
L=1450(*H,L=710)
827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271133370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271135360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8281732840PROTECTOR, WIRING HARNESS, NO.1
8537135030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
9011906767
30 parts on this diagram · 1 diagram in section
