Toyota 4RUNNER — STANDARD TOOL

09110JACK ASSY

main09111-35180iGRN21#,KZN215¥6,000200211-200402

sub09111-35181¥6,000

main09111-35181iGRN21#,KZN215¥6,000200403-200508

sub09111-35182¥6,000

main09111-35181iGRN21#¥6,000200508-200703

sub09111-35182¥6,000

main09111-35182iGRN21#¥6,000200704

sub09111-60140¥6,000

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-35040iGRN21#,KZN215¥450200211-200508

NO.2

main09114-35040iGRN21#¥450200508

NO.2

main09114-35050iGRN21#¥450200508

NO.1

main09114-35050iGRN21#,KZN215¥450200211-200508

NO.1

09115ROD SUB-ASSY, JACK HANDLE

main09115-35110iGRN21#¥530200211-200408

main09115-35110iKZN215;GRN21#..5FC¥530200211-200508

main09115-35110iGRN21#¥530200508

09116LEVER, JACK HANDLE

main09116-35080iGRN21#¥950200211-200408

sub09116-60020¥950

main09116-35080iKZN215;GRN21#..5FC¥950200211-200508

sub09116-60020¥950

main09116-35080iGRN21#¥950200508

sub09116-60020¥950

09120BAG, TOOL

main09120-26021iGRN21#¥820200211-200408

sub09120-35170¥820

main09120-26021iKZN215;GRN21#..5FC¥820200211-200508

sub09120-35170¥820

main09120-26021iGRN21#¥820200508

sub09120-35170¥820

09130PLIERS

main99913-11500iGRN21#¥400200211-200408

main99913-11500iKZN215;GRN21#..5FC¥400200211-200508

main99913-11500iGRN21#¥400200508

09135DRIVER, SCREW

main99915-10700iKZN215;GRN21#..5FC¥460200211-200508

main99915-10700iGRN21#¥460200211-200408

main99915-10700iGRN21#¥460200508

09141SPANNER

main99914-10810iGRN21#¥240200508

8 X 10

main99914-10810iGRN21#¥240200211-200408

8 X 10

main99914-10810iKZN215;GRN21#..5FC¥240200211-200508

8 X 10

main99914-11214iKZN215;GRN21#..5FC¥400200211-200508

12 X 14

main99914-11214iGRN21#¥400200211-200408

12 X 14

main99914-11214iGRN21#¥400200508

12 X 14

09150WRENCH, HUB NUT BOX

main09150-35070iGRN21#¥1,150200211-200408

main09150-35070iKZN215;GRN21#..5FC¥1,150200211-200508

main09150-35070iGRN21#¥1,150200508-200908

09155WRENCH, SPARK PLUG

main09155-74010iGRN21#¥760200211-200408

main09155-74010iGRN21#..5FC¥760200211-200508

main09155-74010iGRN21#¥760200508-200908

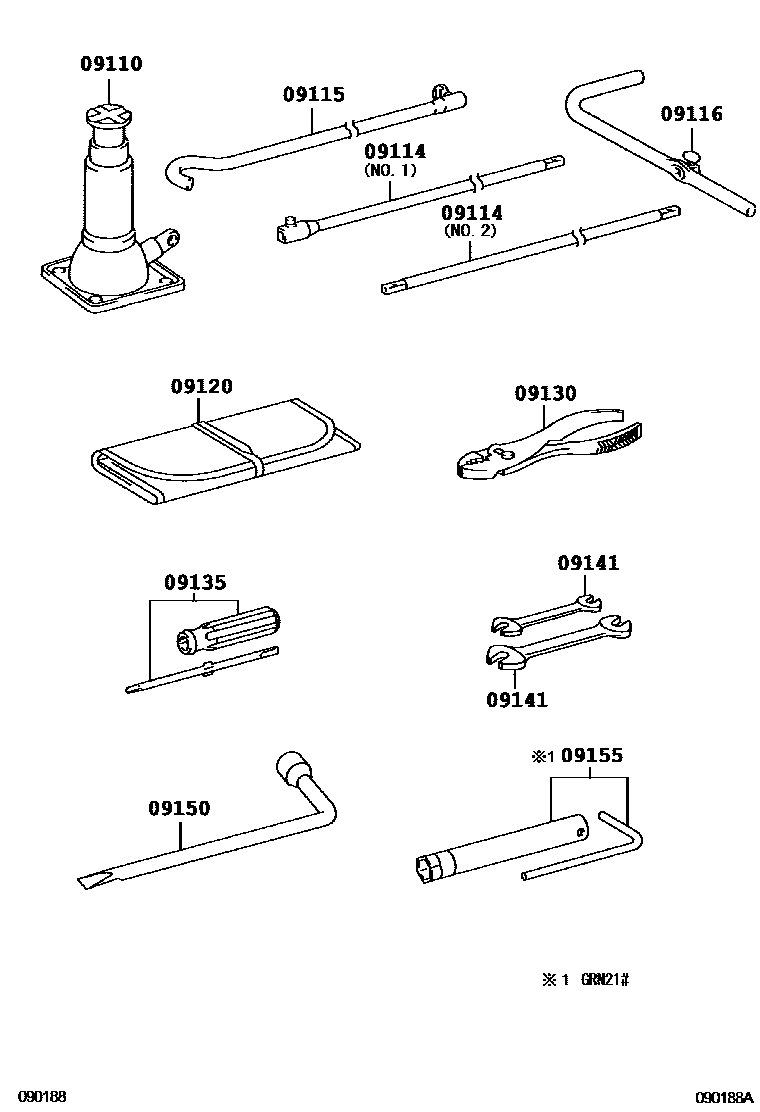

10 parts on this diagram · 1 diagram in section
