Toyota 4RUNNER — SPARE WHEEL CARRIER

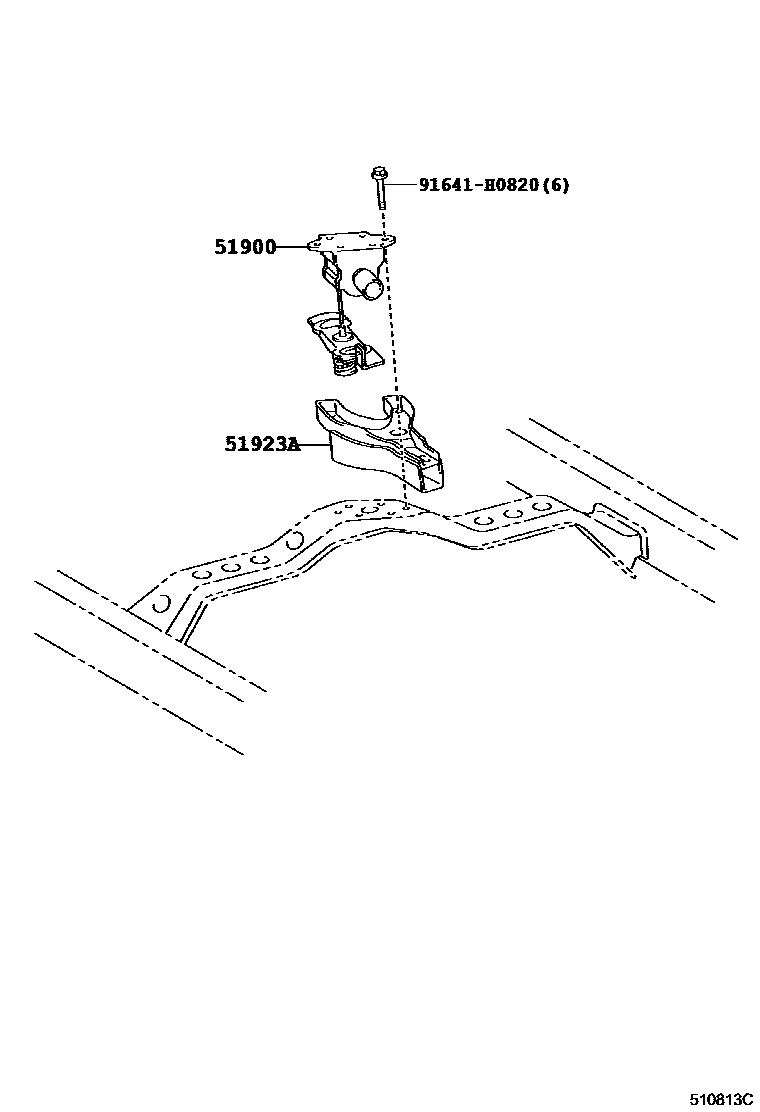

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51900-35380i¥7,200200211-200508

sub51900-60280¥8,400

51923AGUIDE, SPARE WHELL CARRIER HANDLE

main51923-35020i¥2,880200211-200508

91641H0820

main91641-H0820¥90

3 parts on this diagram · 1 diagram in section
