Toyota 4RUNNER — SEAT & SEAT TRACK

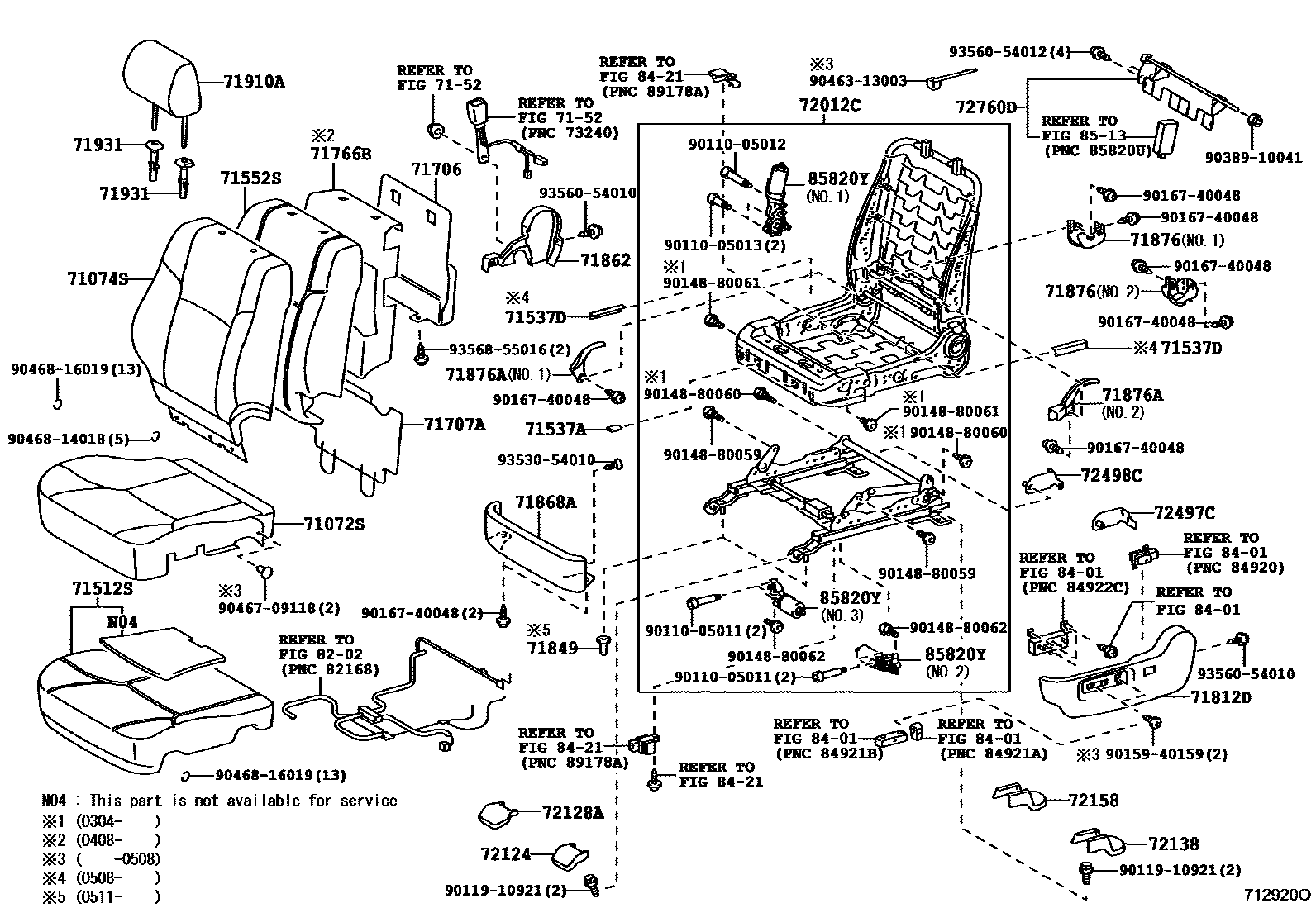

Parts diagram
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-35190-B1i200211-200908
STONE,TRIM1#
sub71072-35190¥71,800
main71072-35190-E1i200211-200908
FAWN,TRIM4#
sub71072-35190¥71,800
main71072-35200-B2i200211-200508
STONE,TRIM1#
sub71072-35200¥29,200
sub71072-35203
main71072-35200-E1i200211-200508
FAWN,TRIM4#
sub71072-35200¥29,200
sub71072-35203
main71072-35201-B6i200508-200908
STONE,TRIM1#
sub71072-35202
main71072-35201-E4i200508-200908
FAWN,TRIM4#
sub71072-35202
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-35A20-B1i200508-200908
STONE,TRIM1#
sub71073-35A21
main71073-35A20-E1i200508-200908
FAWN,TRIM4#
sub71073-35A21
main71073-3G220-B2i200211-200508
STONE,TRIM1#
sub71073-3G220¥40,800
sub71073-3G222¥40,900
main71073-3G220-E1i200211-200508
FAWN,TRIM4#
sub71073-3G220¥40,800
sub71073-3G222¥40,900
main71073-3G270-B0i200310-200508
STONE,TRIM1#
main71073-3G270-E0i200310-200508
FAWN,TRIM4#
main71073-3G271-B1i200508-200908
STONE,TRIM1#
main71073-3G271-E1i200508-200908
FAWN,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71501-35080i¥16,100200211-200508
main71511-35100i¥16,100200211-200508
7152
71537APROTECTOR, FRONT SEAT CUSHION
main71537-26010i¥60200211-200508
71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH
main71537-60050i¥200200508
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-35100i¥13,300200211-200408
main71551-35101i¥13,200200408-200908
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-35010-B0i200211-200908
STONE,TRIM1#
main71705-35010-E0i200211-200908
FAWN,TRIM4#
71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD
main71707-35010-B0i200211-200908
STONE,TRIM1#
main71707-35010-E0i200211-200908
FAWN,TRIM4#
71766BPROTECTOR, FRONT SEATBACK, LH
main71765-60060i¥530200408-200508
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-35180-B0i200211-200908
STONE,TRIM1#
sub71812-35180¥3,890
main71812-35180-E0i200211-200908
FAWN,TRIM4#
sub71812-35180¥3,890
main71812-35190-B0i200211-200908
STONE,TRIM1#
sub71812-35190¥4,520
main71812-35190-E0i200211-200908
FAWN,TRIM4#
sub71812-35190¥4,520
71849CAP, SEAT ADJUSTER COVER, LH
main71848-33010i¥100200511
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-60100-B2i200211-200908
STONE,TRIM1#
sub71862-60100¥2,120
main71862-60100-E0i200211-200908
FAWN,TRIM4#
sub71862-60100¥2,120
main71862-60110-B2i200211-200908
STONE,TRIM1#
sub71862-60110¥2,790
main71862-60110-E0i200211-200908
FAWN,TRIM4#
sub71862-60110¥2,790
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71868-35010-B0i200211-200908
STONE,TRIM1#
sub71868-35010¥3,370
main71868-35010-E0i200211-200908
FAWN,TRIM4#
sub71868-35010¥3,370
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-58060i¥740200408-200908
NO.1
main71875-58060-C0i200211-200408
BLACK,NO.1
sub71875-58060¥740
main71875-60140i¥740200211-200908
NO.1
main71875-60160-B2i200211-200908
STONE,TRIM1#,NO.2
sub71875-60160¥480
main71875-60160-E0i200211-200908
FAWN,TRIM4#,NO.2
sub71875-60160¥480
main71876-58060i¥740200408-200908
NO.3
main71876-58060-C0i200211-200408
BLACK,NO.3
sub71876-58060¥740
main71876-60140i¥740200211-200908
NO.2
main71876-60160-B2i200211-200908
STONE,TRIM1#,NO.4
sub71876-60160¥480
main71876-60160-E0i200211-200908
FAWN,TRIM4#,NO.4
sub71876-60160¥480
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-60150-B2i200211-200908
STONE,TRIM1#,NO.1
sub71876-60150¥370
main71876-60150-E0i200211-200908
FAWN,TRIM4#,NO.1
sub71876-60150¥370
main71876-60170-B2i200211-200908
STONE,TRIM1#,NO.2
sub71876-60170¥750
main71876-60170-E0i200211-200908
FAWN,TRIM4#,NO.2
sub71876-60170¥750
71910AHEADREST ASSY, FRONT SEAT
main71910-35700-B0i200211-200508
STONE,TRIM1#
main71910-35700-E0i200211-200508
FAWN,TRIM4#
main71910-35710-B1i200211-200908
STONE,TRIM1#
sub71910-35710¥40,300
main71910-35710-E1i200211-200908
FAWN,TRIM4#
sub71910-35710¥40,300
main71910-35740-B0i200508-200908
STONE,TRIM1#
sub71910-35820
main71910-35740-E0i200508-200908
FAWN,TRIM4#
sub71910-35820
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-B3i200211-200704
W(LOCK)&W(BUTTON),STONE,TRIM1#
sub71930-52030¥950
sub71930-42020¥1,260
sub71930-44020¥1,260
main71930-42020-E0i200211-200704
W(LOCK)&W(BUTTON),FAWN,TRIM4#
sub71930-52030¥950
sub71930-42020¥1,260
sub71930-44020¥1,260
main71930-52030-B6i200705-200908
W(LOCK)&W(BUTTON),STONE,TRIM1#
sub71930-52030¥950
main71930-52030-E3i200705-200908
W(LOCK)&W(BUTTON),FAWN,TRIM4#
sub71930-52030¥950
main71931-42020-B3i200211-200908
W(LOCK)&W/O(BUTTON),STONE,TRIM1#
sub71931-42020¥590
main71931-42020-E0i200211-200908
W(LOCK)&W/O(BUTTON),FAWN,TRIM4#
sub71931-42020¥590
72012CADJUSTER SUB-ASSY, FRONT SEAT, LH
main71120-35020i¥44,300200211-200310
sub71120-35190
main71120-35030i¥41,600200211-200310
main71120-35150i200508-200607
sub71120-35151
main71120-35151i200310-200908
main71120-35190i200310-200908
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-35010-B0i200211-200908
STONE,TRIM1#
main72124-35010-E0i200211-200908
FAWN,TRIM4#
main72124-35020-B0i200211-200908
STONE,TRIM1#
main72124-35020-E0i200211-200908
FAWN,TRIM4#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-35010-B0i200211-200908
STONE,TRIM1#
main72128-35010-E0i200211-200908
FAWN,TRIM4#
main72128-35020-B0i200211-200908
STONE,TRIM1#
main72128-35020-E0i200211-200908
FAWN,TRIM4#
72138COVER, SEAT TRACK, OUTER LH
main72138-35050-B0i200211-200908
STONE,TRIM1#
main72138-35050-E0i200211-200908
FAWN,TRIM4#
main72138-35060-B0i200211-200908
STONE,TRIM1#
main72138-35060-E0i200211-200908
FAWN,TRIM4#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72138-35050-B0i200211-200908
STONE,TRIM1#
main72138-35050-E0i200211-200908
FAWN,TRIM4#
main72158-35020-B0i200211-200908
STONE,TRIM1#
main72158-35020-E0i200211-200908
FAWN,TRIM4#
72497CCOVER, VERTICAL ADJUSTER BRACKET, OUTER
main72497-58010i¥940200211-200508
72498CCOVER, VERTICAL ADJUSTER BRACKET, INNER
main72498-58010i¥940200211-200508
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-33060i200310-200908
main72760-60050i¥33,500200211-200310
8202
8401
8421
8513
85820YMOTOR ASSY, POWER SEAT
main85801-58010i¥21,700200508
NO.2 RH
main85801-58020i¥21,700200211-200508
NO.1 RH
main85801-60020i¥21,700200303-200310
NO.1
main85801-60020i¥21,700200310-200508
NO.1 LH
main85801-60030i¥21,700200303-200310
NO.2
main85801-60030i¥21,700200310-200508
NO.2 LH
main85801-60040i¥21,700200508
NO.3 LH
main85801-60040i¥21,700200303-200310
NO.3
9011005011
main90110-05011¥140
9011005012
main90110-05012¥140
9011005013
main90110-05013¥110
9011910921
main90119-10921¥100
9014880059
main90148-80059¥190
9014880060
main90148-80060¥190
9014880061
main90148-80061¥110
9014880062
main90148-80062¥320
9015940159
main90159-40159¥120
9016740048
main90167-40048¥60
9038910041
main90389-10041¥110
9046313003
main90463-13003¥180
9046709118
main90467-09118¥190
9046814018
main90468-14018¥100
9046816019
main90468-16019¥90
9353054010
main93530-54010¥70
9356054010
main93560-54010¥70
9356054012
main93560-54012¥60
9356855016
main93568-55016¥70

50 parts on this diagram · 5 diagrams in section
