Toyota 4RUNNER — SEAT BELT

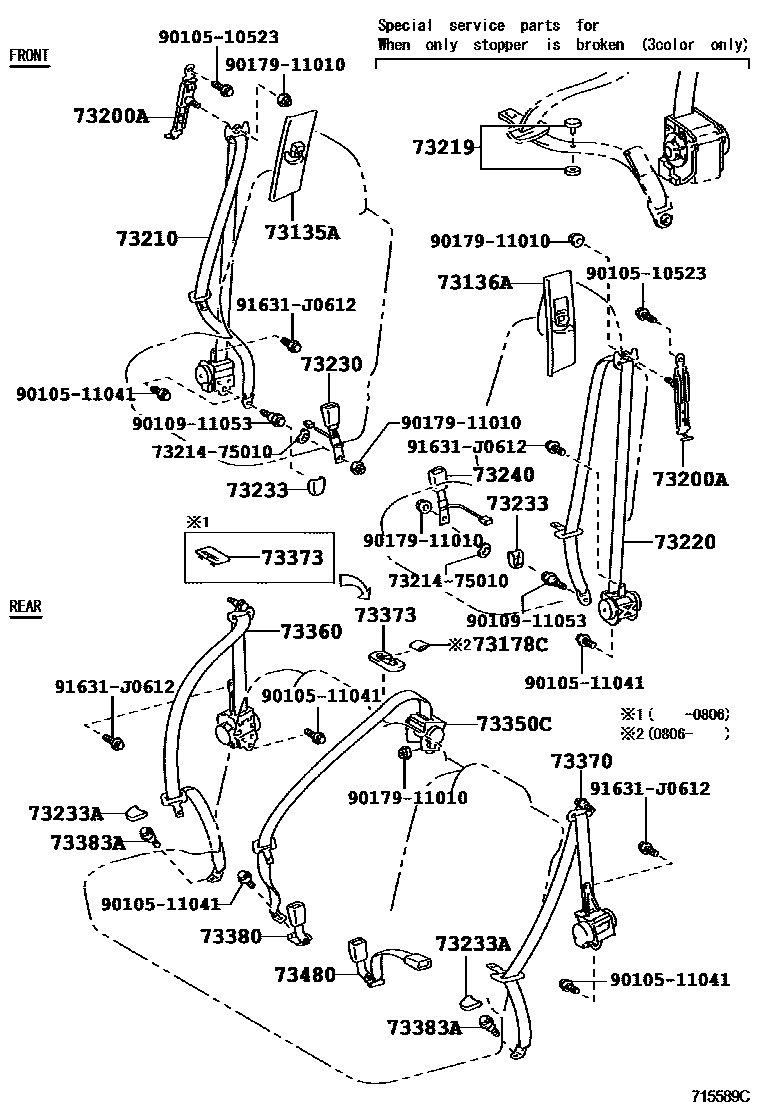

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73023-35010-B0i200211-200908
STONE,TRIM1#
sub73023-35010¥2,160
main73023-35010-E0i200211-200908
FAWN,TRIM4#
sub73023-35010¥2,160
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73024-35010-B0i200211-200908
STONE,TRIM1#
sub73024-35010¥2,160
main73024-35010-E0i200211-200908
FAWN,TRIM4#
sub73024-35010¥2,160
73178CCAP, SEAT BELT ANCHOR COVER
main73178-12060-B5i200806-200908
STONE,TRIM1#
sub73178-12060¥170
main73178-12060-E2i200806-200908
FAWN,TRIM4#
sub73178-12060¥170
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-30080i¥4,790200211-200301
main73200-60030i¥5,300200301-200508
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-35880-B0i200211-200308
GRAY,TRIM1#
sub73210-35881¥25,600
main73210-35880-E0i200211-200308
FAWN,TRIM4#
sub73210-35881¥25,600
main73210-35881-B0i200308-200908
GRAY,TRIM1#
main73210-35881-E0i200308-200908
FAWN,TRIM4#
73219STOPPER, TONGUE PLATE
main73219-33010i¥100200211-200508
BLACK
main73219-33020i¥100200211-200508
GRAY
main73219-33030i¥100200211-200508
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-35710-B0i200308-200908
GRAY,TRIM1#
main73220-35710-E0i200308-200908
FAWN,TRIM4#
main73220-35750-B0i200211-200308
GRAY,TRIM1#
sub73220-35710¥39,500
main73220-35750-E0i200211-200308
FAWN,TRIM4#
sub73220-35710¥39,500
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-35800-B0i200211-200908
STONE,TRIM1#
main73230-35800-E0i200211-200908
FAWN,TRIM4#
main73230-35840-B0i200211-200908
STONE,TRIM1#
main73230-35840-E0i200211-200908
FAWN,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-60010-B0i200211-200908
STONE,TRIM1#
main73233-60010-E0i200211-200908
FAWN,TRIM4#
73233ACOVER, LAP BELT OUTER ANCHOR, REAR NO.1 SEAT
main73233-60010-B0i200211-200908
STONE,TRIM1#
main73233-60010-E0i200211-200908
FAWN,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-35790-B0i200211-200908
STONE,TRIM1#
main73230-35790-E0i200211-200908
FAWN,TRIM4#
main73230-35830-B0i200211-200908
STONE,TRIM1#
main73230-35830-E0i200211-200908
FAWN,TRIM4#
73350CBELT ASSY, REAR SEAT, OUTER CENTER
main73350-35150-B0i200211-200807
GRAY,TRIM1#
sub73350-35151¥23,800
main73350-35150-E0i200211-200807
FAWN,TRIM4#
sub73350-35151¥23,800
main73350-35151-B0i200808-200908
GRAY,TRIM1#
main73350-35151-E0i200808-200908
FAWN,TRIM4#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-35310-B0i200211-200908
GRAY,TRIM1#
main73360-35310-E0i200211-200908
FAWN,TRIM4#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-35240-B0i200211-200908
GRAY,TRIM1#
main73370-35240-E0i200211-200908
FAWN,TRIM4#
73373COVER, REAR SEAT SHOULDER BELT
main73373-12020-B5i200806-200908
STONE,TRIM1#
sub73373-12020¥740
main73373-12020-E2i200806-200908
FAWN,TRIM4#
sub73373-12020¥740
main73373-33020-B6i200211-200806
STONE,TRIM1#
sub73373-33020¥610
sub73373-12020¥740
main73373-33020-E1i200211-200806
FAWN,TRIM4#
sub73373-33020¥610
sub73373-12020¥740
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-35160-B0i200211-200908
STONE,TRIM1#
main73380-35160-E0i200211-200908
FAWN,TRIM4#
73383AHOOK, RR SEAT BELT
main73383-60010i¥200200211-200508
73480BELT ASSY, REAR SEAT INNER W/CENTER, LH
main73480-35010-B0i200211-200908
GRAY,TRIM1#
main73480-35010-E0i200211-200908
FAWN,TRIM4#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010¥170
9010510523
main90105-10523¥100
9010511041
main90105-11041¥100
9010911053
main90109-11053¥310
9017911010
main90179-11010¥110
91631J0612
main91631-J0612¥110

24 parts on this diagram · 1 diagram in section
