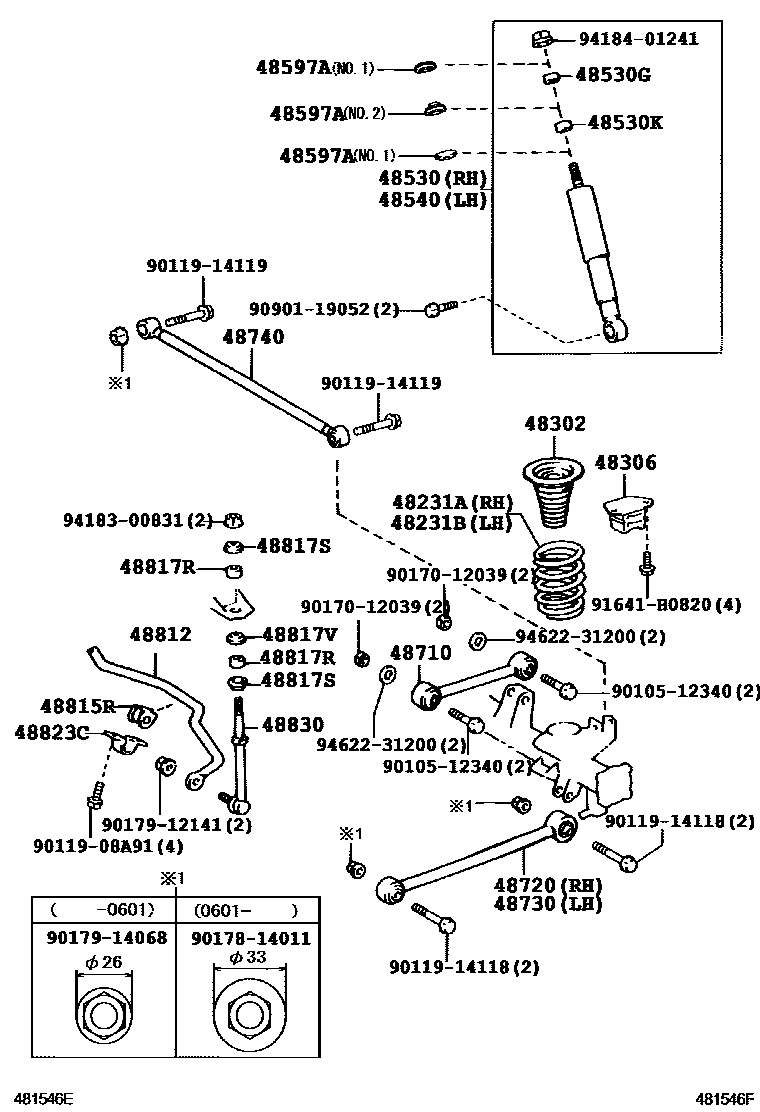

Toyota 4RUNNER — REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48302SPRING SUB-ASSY, HOLLOW
48306BUMPER SUB-ASSY, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-35072
MARK 48530-35082
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-35072
MARK 48530-35082
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
NO.1
NO.1
NO.1
NO.2
NO.2
NO.2
48710ARM ASSY, UPPER CONTROL
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48812BAR, STABILIZER, REAR
48815RBUSH, STABILIZER(FOR REAR)
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48823CCOVER, REAR STABILIZER BRACKET
48830LINK ASSY, REAR STABILIZER
9010512340
9011908A91
9011914118
9011914119
9017012039
9017814011
9017912141
9017914068
9090119052
91641H0820
9418300831
9418401241
9462231200
33 parts on this diagram · 1 diagram in section
