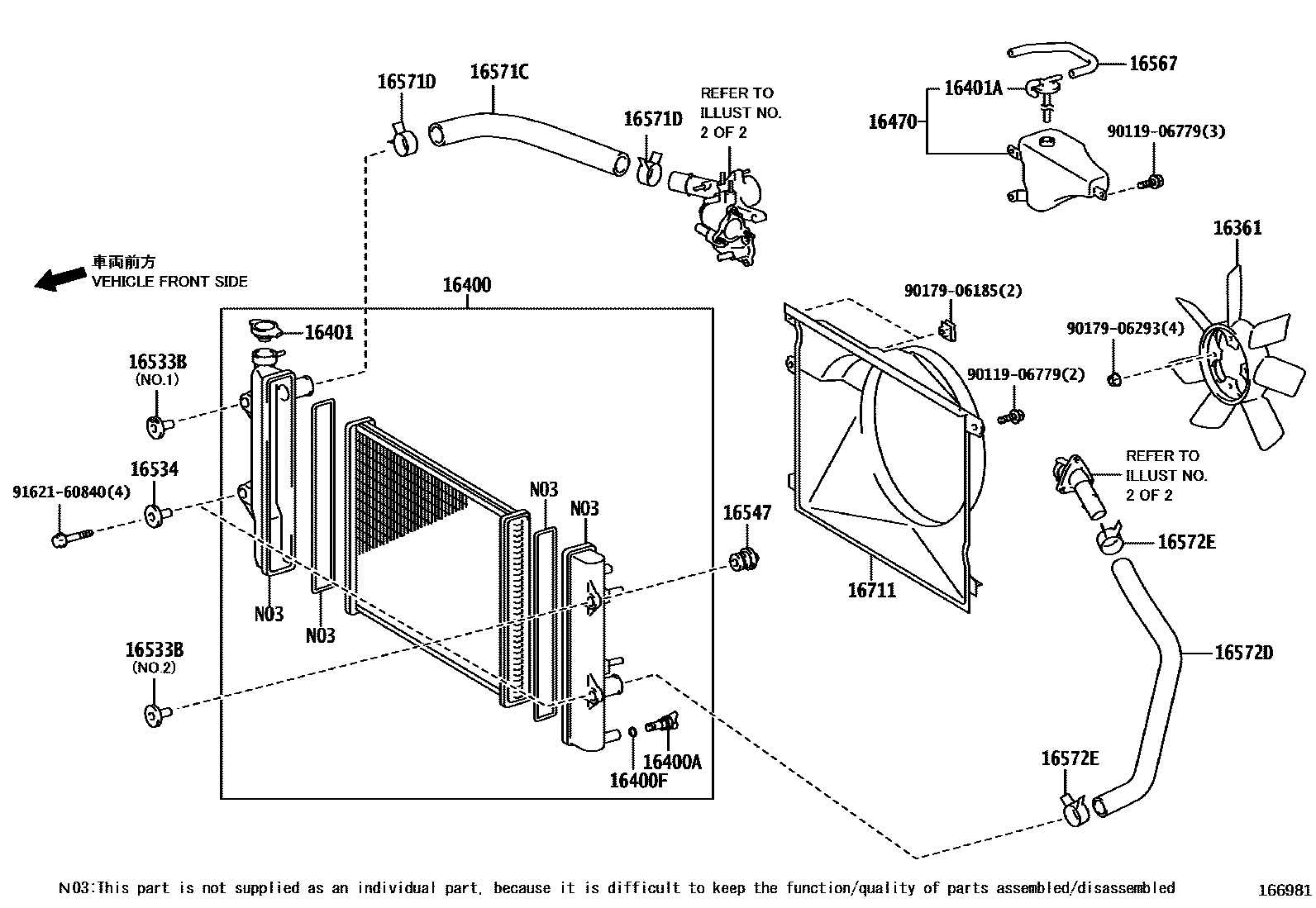

Toyota 4RUNNER — RADIATOR & WATER OUTLET
16400RADIATOR ASSY
16400ACOCK SUB-ASSY, RADIATOR DRAIN
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
16470TANK ASSY, RADIATOR RESERVE
16533BSUPPORT, RADIATOR, NO.1
NO.1
NO.2
16534SUPPORT, RADIATOR, NO.2
16547BUSH, RADIATOR SUPPORT, NO.1
16567HOSE(FOR RADIATOR RESERVE TANK)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16711SHROUD, FAN
9011906779
9017906185
9017906293
9162160840
20 parts on this diagram · 5 diagrams in section
